Cisco vEdge Series User Manual

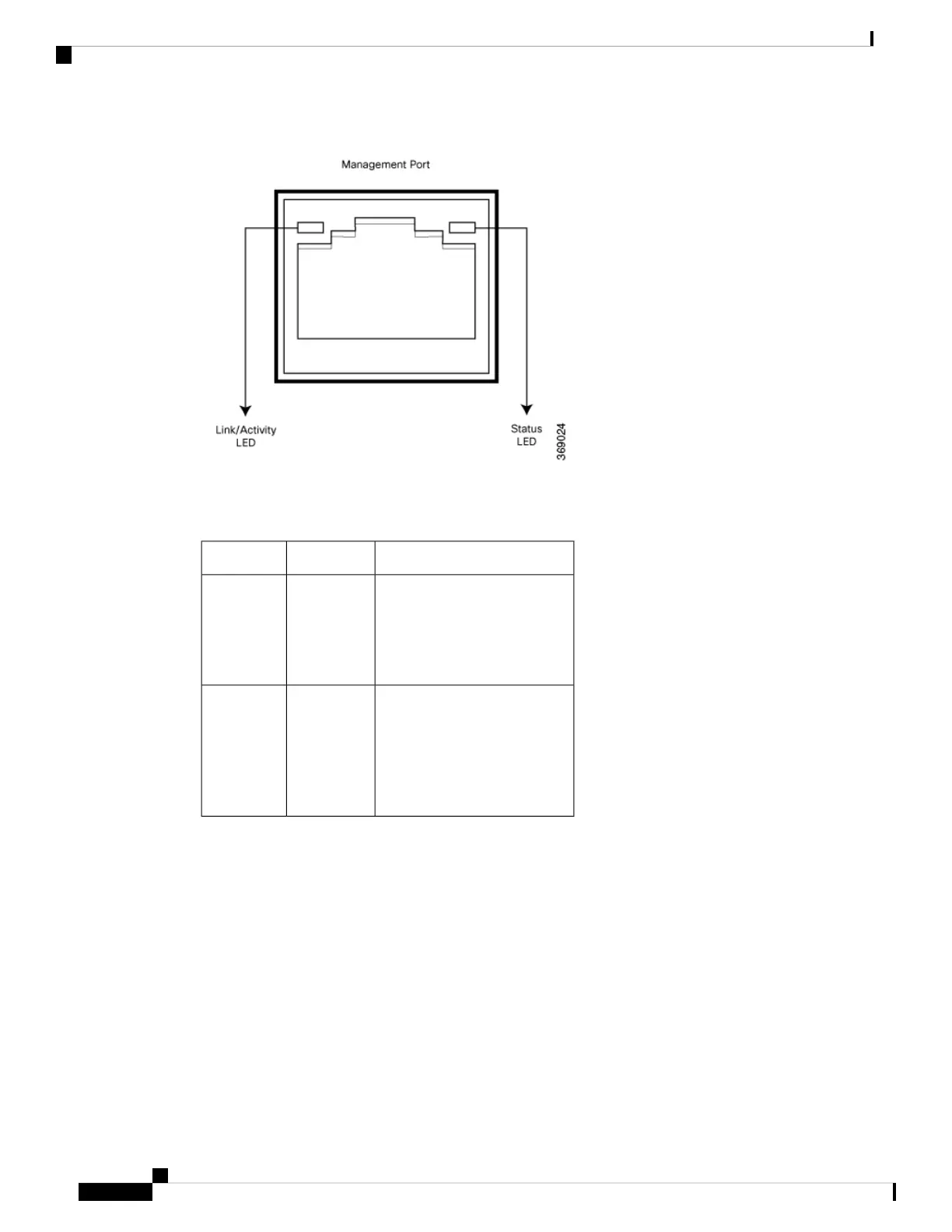

Table 5 describes the LEDs on the management port.
Table 63:
State and DescriptionColorLED
• Blinking—There is link
activity
• Off—There is no link
activity
GreenLink/Activity
Indicates the speed of the link:
• Green—1000 Mbps
• Yellow—10/100 Mbps
• Off—Link is not up
Green/YellowStatus
Console Port
The console port on a vEdge 2000 router is accessible via the following external interfaces:
• An RS-232 serial interface that uses an RJ-45 connector to connect to a console management device.
• A USB serial interface that uses a standard USB Type B connector to connect to a console management
device. See Figure 5.
Figure 5: USB Type B Connector
At any given time, you can activate only one of the external interfaces. The default baud rate for the console
port is 115,200 baud.
Table 7 provides the pinout information for the RJ-45 console port connector.
Hardware Installation Guide for vEdge Routers
178
vEdge 2000 Router
Ports and Connectors

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
