• Mount the router on two front posts
• Mount the router on all four posts
• Mount the router on two mid-posts
In addition to the accessory box, you need the following tools to mount a vEdge 2000 router in a 19-inch rack:
• Number 2 Phillips (+) screwdriver
• Tape measure
Mount the vEdge 2000 Router on Two Posts
To mount the vEdge 2000 router on two front posts in a 19-inch rack:
1. Place the router chassis on the floor or on a sturdy table near the rack.
2. Verify the internal dimensions of the rack with a tape measure. The chassis is 440 mm wide and must fit
within the mounting posts.
3. Secure the two extended mounting ears, marked Left and Right, to either side of the router chassis using
the eight screws for mounting ears (four on each side) in the packet marked B plus the four additional
screws for extended mounting ears (two on each side) in the packet marked C.

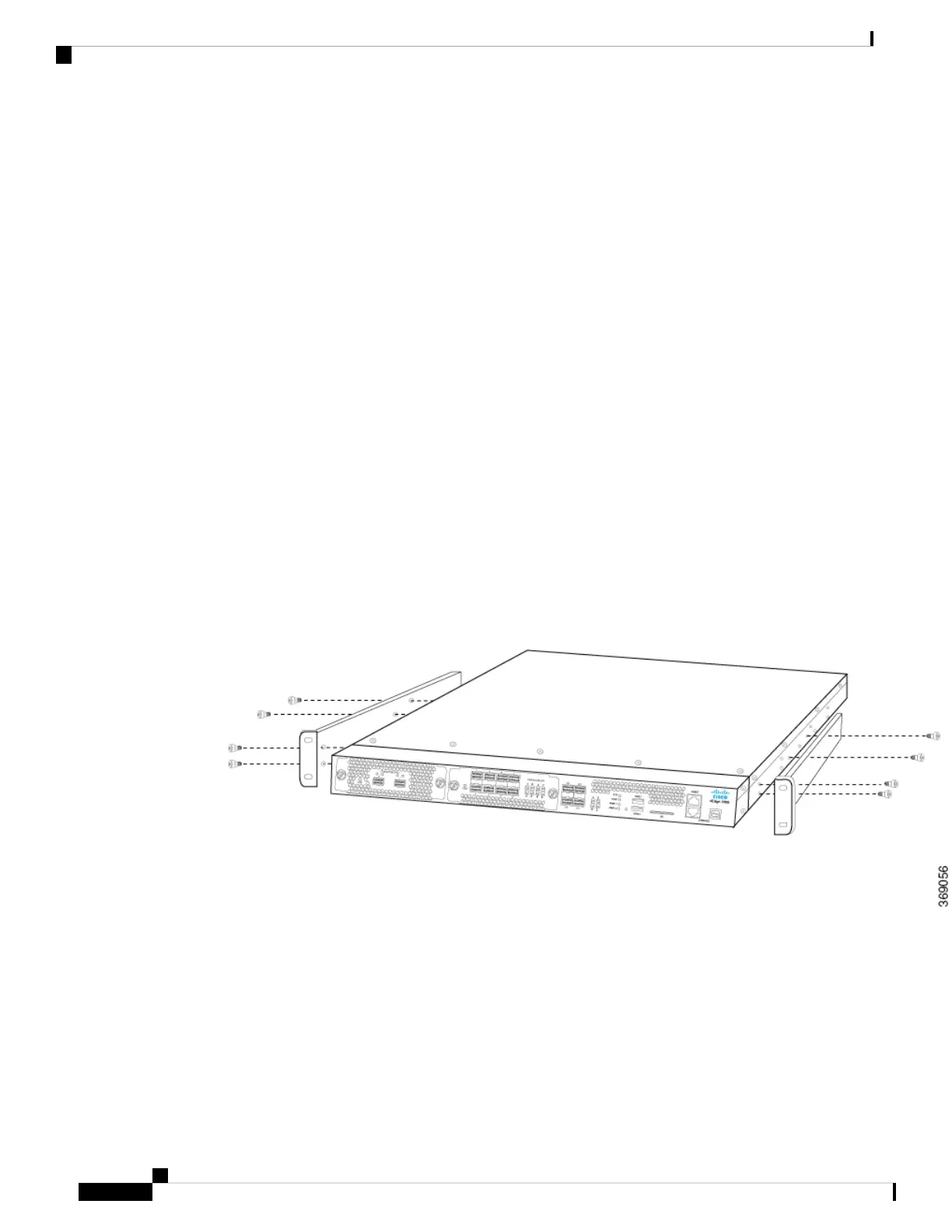

Figure 2: Attaching the Extended Mounting Ears to the vEdge 2000 Router Chassis
1. Grasp both sides of the router, then lift and position it in the rack, making sure that the mounting ear holes
are aligned with the threaded holes in the rack rail. Align the bottom hole in both the mounting ears with
a hole in each rack rail, making sure the chassis is level.
Figure 3: Positioning the vEdge 2000 Router in the Rack
Hardware Installation Guide for vEdge Routers
188
vEdge 2000 Router
Install the vEdge 2000 Router
