Cisco vEdge Series User Manual

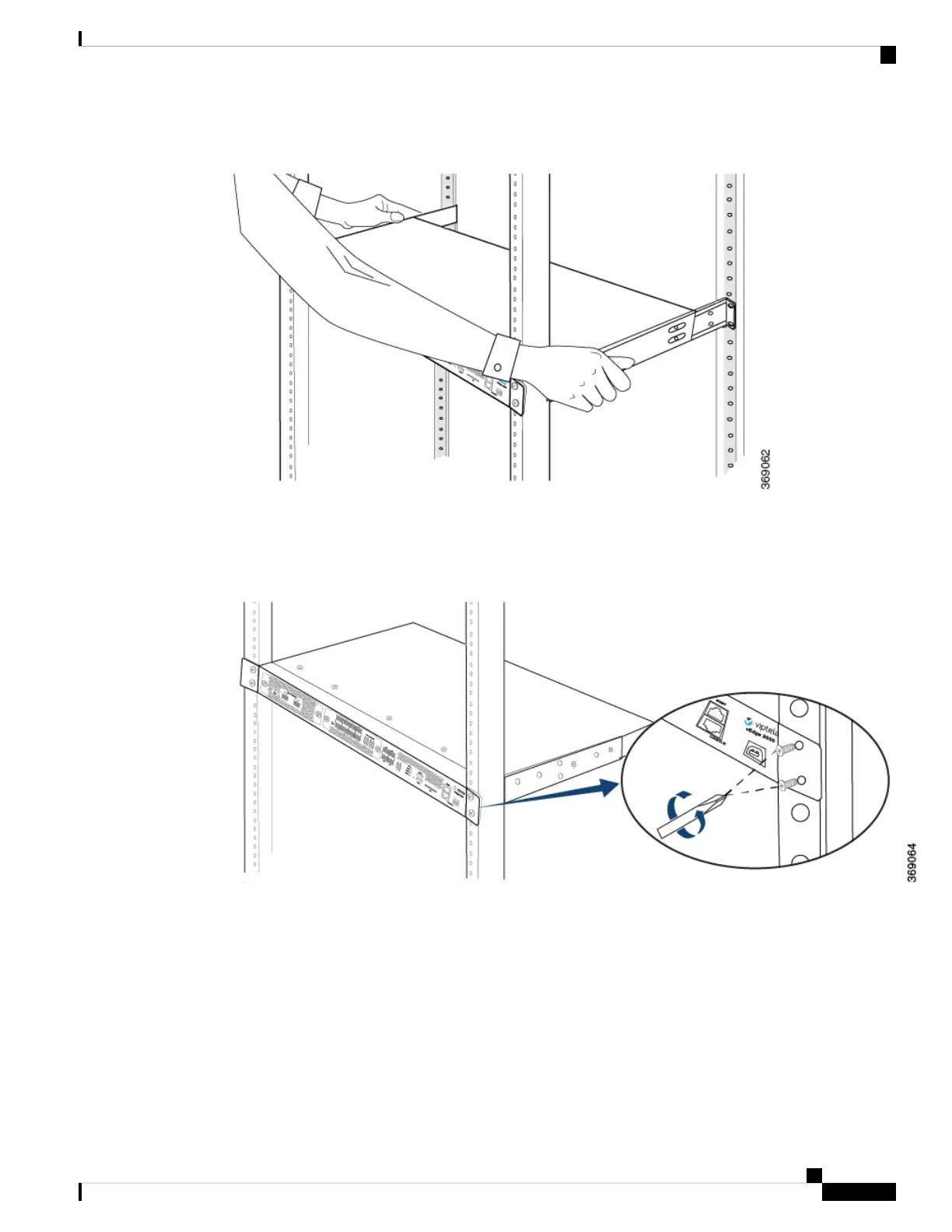

Figure 7: Positioning the vEdge 2000 Router in the Rack
1. Have a second person secure the mounting ears to the front of the rack using four rack-mount screws (two
on each side) from the packet marked A. Tighten the screws.
Figure 8: Attaching the Short Mounting Ears to the Rack
1. Secure the 1U sliders to the rear post, using the remaining four rack-mount screws (two on each side) in
the packet marked A. Tighten the screws.
Figure 9: Attaching the 1U Sliders to the Rear of the Rack
Hardware Installation Guide for vEdge Routers
191
vEdge 2000 Router
Install the vEdge 2000 Router

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
