3. Press the release latch to carefully remove the existing power supply from the power supply slot in the
rear panel of the router chassis.
4. Remove the new power supply from the plastic bag in which it was shipped, taking care that you do not
touch any of the power supply pins, leads, or solder connections.
5. With both hands, place the new power supply into the power supply slot in the rear panel of the router
chassis and slide it in until it is firmly seated. You will hear a click sound when the power supply is firmly
seated in the slot. See Figure 1.

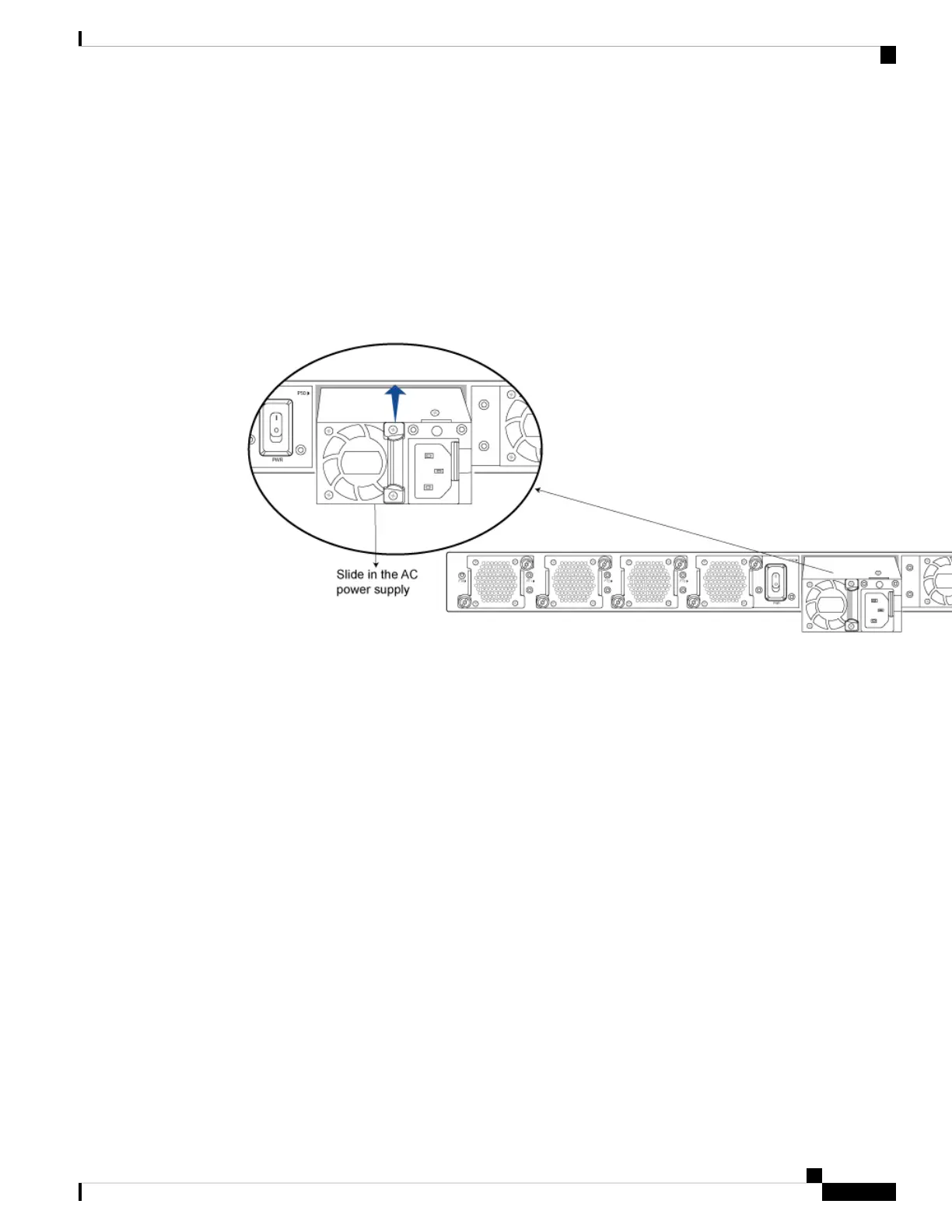

Figure 1: Installing an AC Power Supply in a vEdge 2000 Router
Install a Fan Tray in a vEdge 2000 Router
The vEdge 2000 router contains four individual fan trays, each comprising a double-stacked fan module. The
fan tray is a hot-insertable and hot-removable field-replaceable unit (FRU). You can remove and replace an
individual fan tray without powering off the router or disrupting normal functioning.
The fan tray installs horizontally in the rear of the router chassis. Handles on each side facilitate installing
and removing of the fan tray.
To install a fan tray in a vEdge 2000 router:
1. Attach the ESD grounding strap to your bare wrist. Then connect the strap to the ESD point on the router
chassis.
2. Unscrew and carefully remove the existing fan tray from the fan tray slot in the rear of the chassis.
3. Gently remove the new fan tray from the plastic bag in which it was shipped.
4. With both hands, hold the thumb screws on each side of the fan tray and align the fan tray along the fan
tray slot.
5. Slide in the fan tray until it is firmly seated in the router chassis and then tighten the screws. See Figure
2.
Figure 2: Installing a Fan Tray in a vEdge 2000 Router
Hardware Installation Guide for vEdge Routers
199
vEdge 2000 Router
Install vEdge 2000 Router Components
