19-5
Catalyst 3560 Switch Software Configuration Guide
78-16156-01
Chapter 19 Configuring IGMP Snooping and MVR
Understanding IGMP Snooping

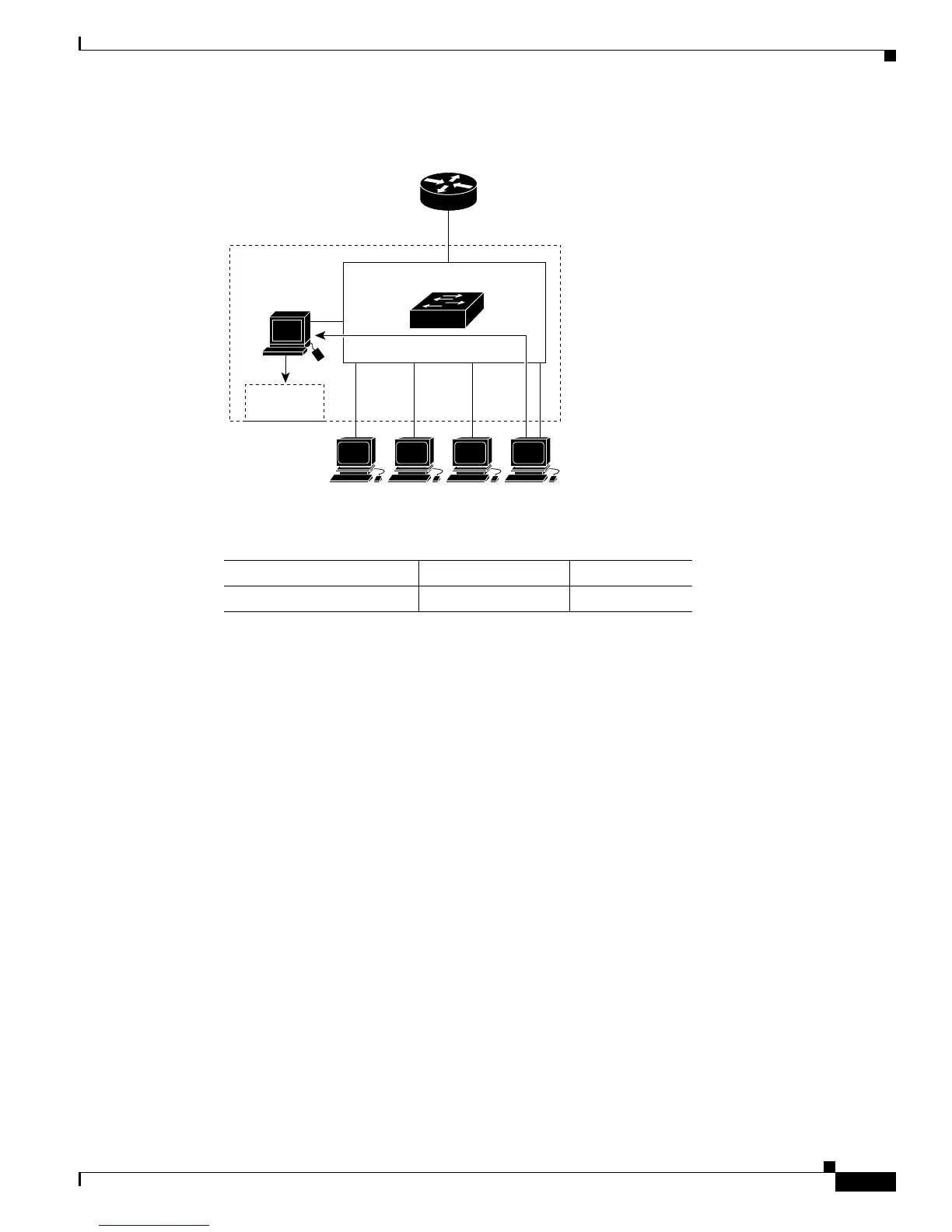

Figure 19-2 Second Host Joining a Multicast Group
Leaving a Multicast Group
The router sends periodic multicast general queries, and the switch forwards these queries through all
ports in the VLAN. Interested hosts respond to the queries. If at least one host in the VLAN wishes to
receive multicast traffic, the router continues forwarding the multicast traffic to the VLAN. The switch
forwards multicast group traffic only to those hosts listed in the forwarding table for that IP multicast
group maintained by IGMP snooping.
When hosts want to leave a multicast group, they can silently leave or they can send a leave message.
When the switch receives a leave message from a host, it sends out a MAC-based general query to
determine if any other devices connected to that interface are interested in traffic for the specific
multicast group. The switch then updates the forwarding table for that MAC group so that only those
hosts interested in receiving multicast traffic for the group are listed in the forwarding table. If the router
receives no reports from a VLAN, it removes the group for the VLAN from its IGMP cache.
Table 19-2 Updated IGMP Snooping Forwarding Table
Destination Address Type of Packet Ports
224.1.2.3 IGMP 1, 2, 5
Forwarding
table
CPU
Host 1 Host 2 Host 3 Host 4
Router A
Switching engine
VLAN
1
0
234 5
45751
