27-38

Catalyst 3560 Switch Software Configuration Guide

78-16156-01

Chapter 27 Configuring Network Security with ACLs

Using VLAN Maps with Router ACLs

ACLs and Bridged Packets

Figure 27-7 shows how an ACL is applied on fallback-bridged packets. For bridged packets, only

Layer 2 ACLs are applied to the input VLAN. Only non-IP, non-ARP packets can be fallback-bridged.

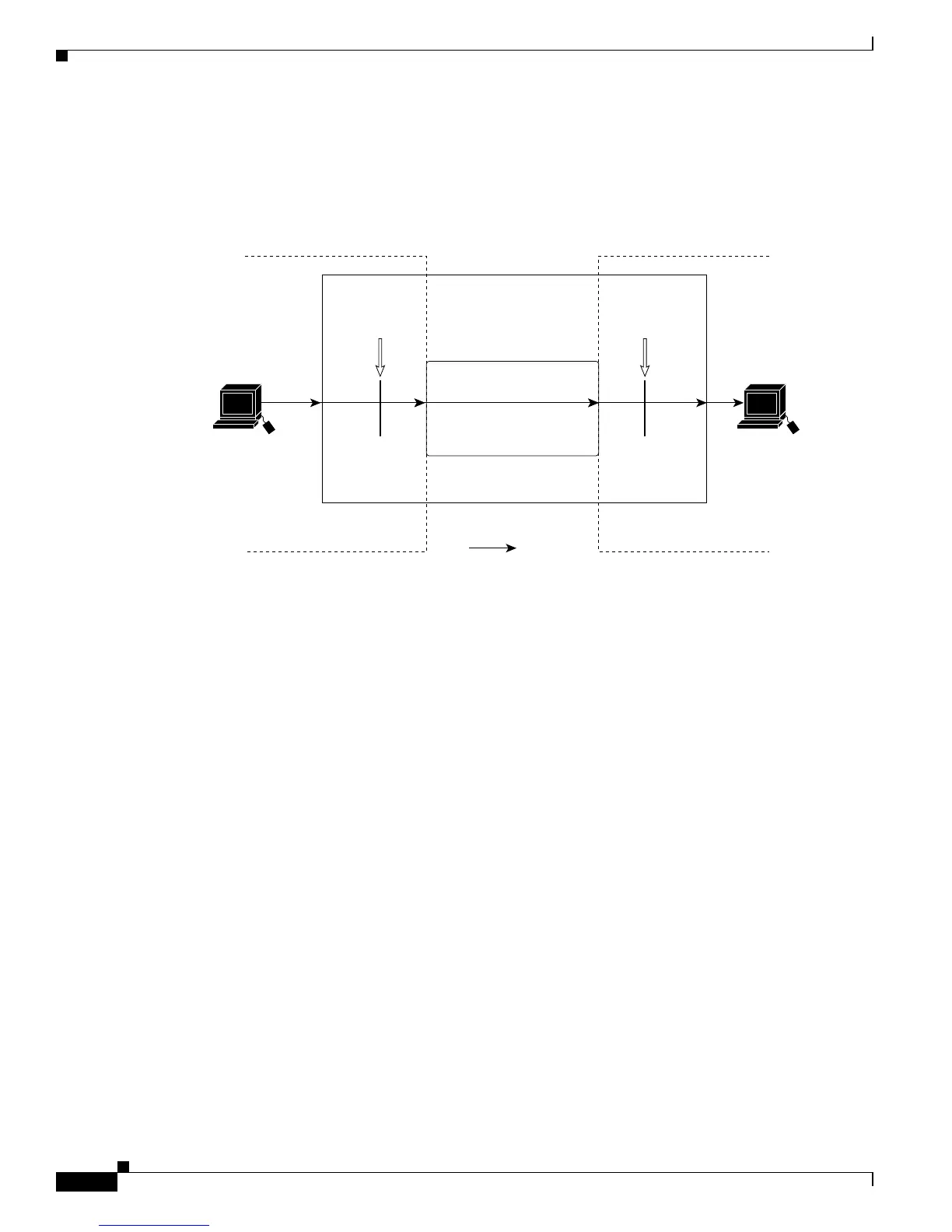

Figure 27-7 Applying ACLs on Bridged Packets

ACLs and Routed Packets

Figure 27-8 shows how ACLs are applied on routed packets. For routed packets, the ACLs are applied

in this order:

1. VLAN map for input VLAN

2. Input router ACL

3. Output router ACL

4. VLAN map for output VLAN

Frame

Fallback bridge

VLAN 10

Host A

(VLAN 10)

Packet

101358

VLAN 20

Host B

(VLAN 20)

VLAN 10

map

VLAN 20

map
