6 Operating the FS II IP Transceiver (IPT)
This chapter describes how to use the FreeSpeak II IP transceiver.
For information about operating the FS II Transceiver that connects to an E-Que card, see
Operating the FS II Transceiver on page 79.
The FS II IP Transceiver (IPT) forms the transmission link between the FS II beltpacks and the
matrix. It offers internal omnidirectional (all directions/spherical) coverage. Multiple units are
used to support the beltpacks and to create larger, customized coverage areas. Each
transceiver is connected to the E-IPA-HX card on the matrix via an AES67 connection.

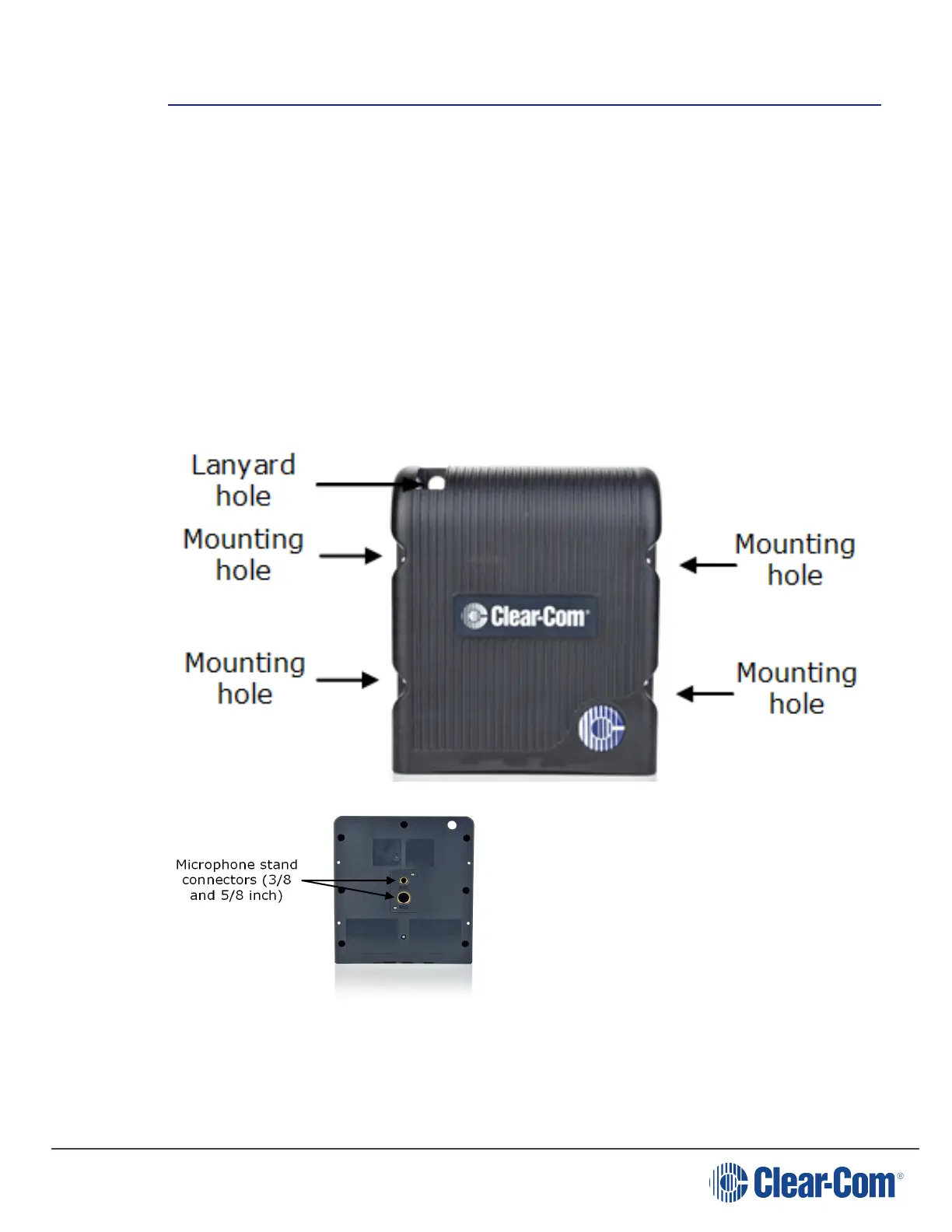

The unit has two methods of fixing:
l
Four screw points for mounting on a flat surface.
l
Two microphone stand connectors, 3/8 in and 5/8 in.
Page 57

Clear-Com FSII-TCVR-IP-19-US Specifications

General

Model	FSII-TCVR-IP-19-US
Number of full-duplex beltpacks per Transceiver	5
Number of full-duplex beltpacks per system	20
Network Protocol	IP
Type	Transceiver
Audio Bandwidth	20 Hz to 20 kHz
Interfaces	Ethernet
Mounting	Rack Mount
Audio Inputs	2
Audio Outputs	2
Frequency Range	1.880 – 1.930 GHz
Power Supply	PoE (Power over Ethernet)
Ethernet Ports	2 x RJ-45 (1000Base-T)
