8 Using the FreeSpeak II for Eclipse splitter (FSII-SPL)
The FreeSpeak II for Eclipse transceiver splitter is a device that connects up to five transceivers
to a FreeSpeak Base (both FreeSpeak I and FreeSpeak II, 1.9 and 2.4 systems) or an Eclipse
matrix. Using the splitter, audio can be routed from the Base to transceivers either via Cat5/6
Ethernet cable (RJ45) or a Fiber connection.
Note: On the base, splitter and transceiver connectors, a green status LED indicates power while a
yellow status LED indicates data.

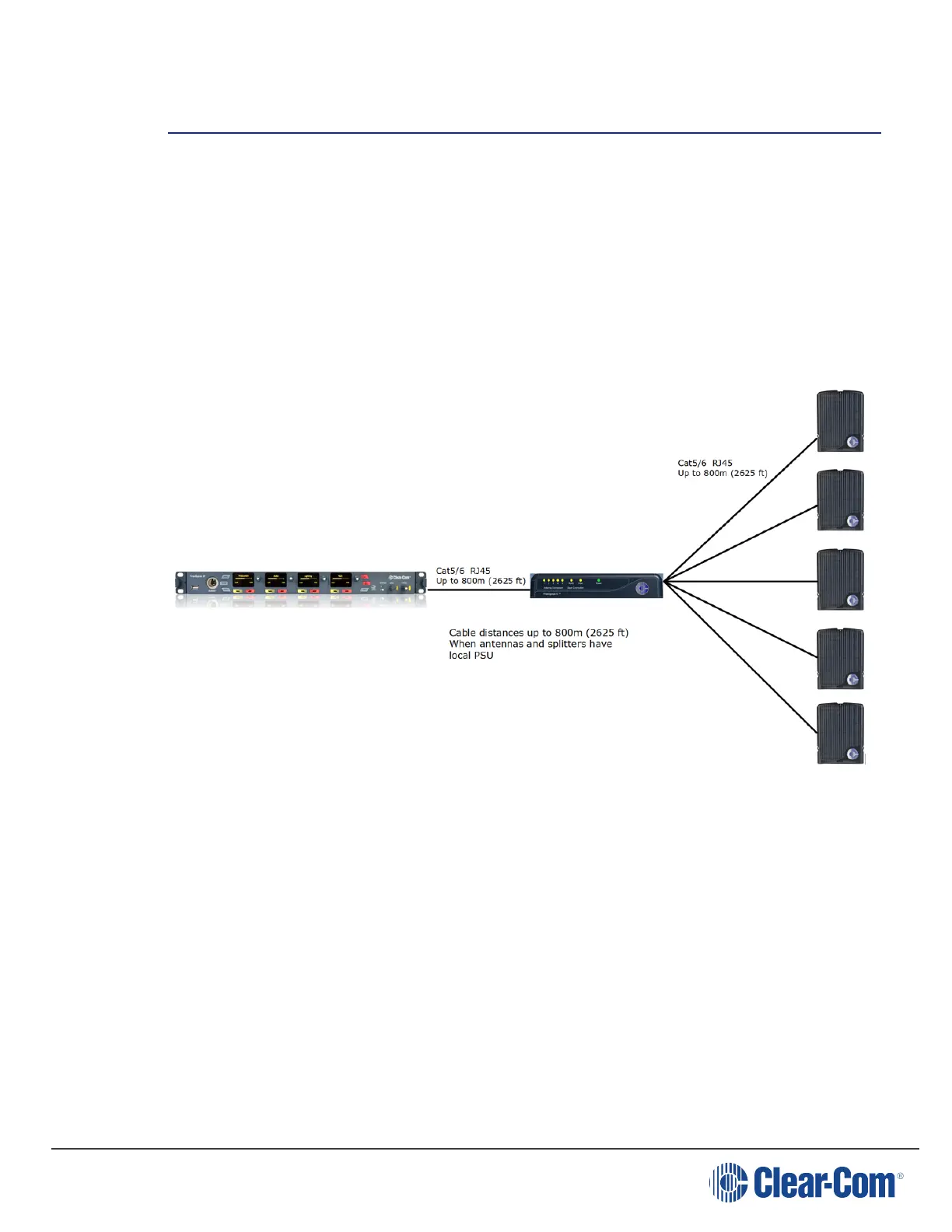

8.1 Configuration using a splitter with Cat 5/6 RJ45 connection
