FreeSpeak II for Eclipse | User Guide

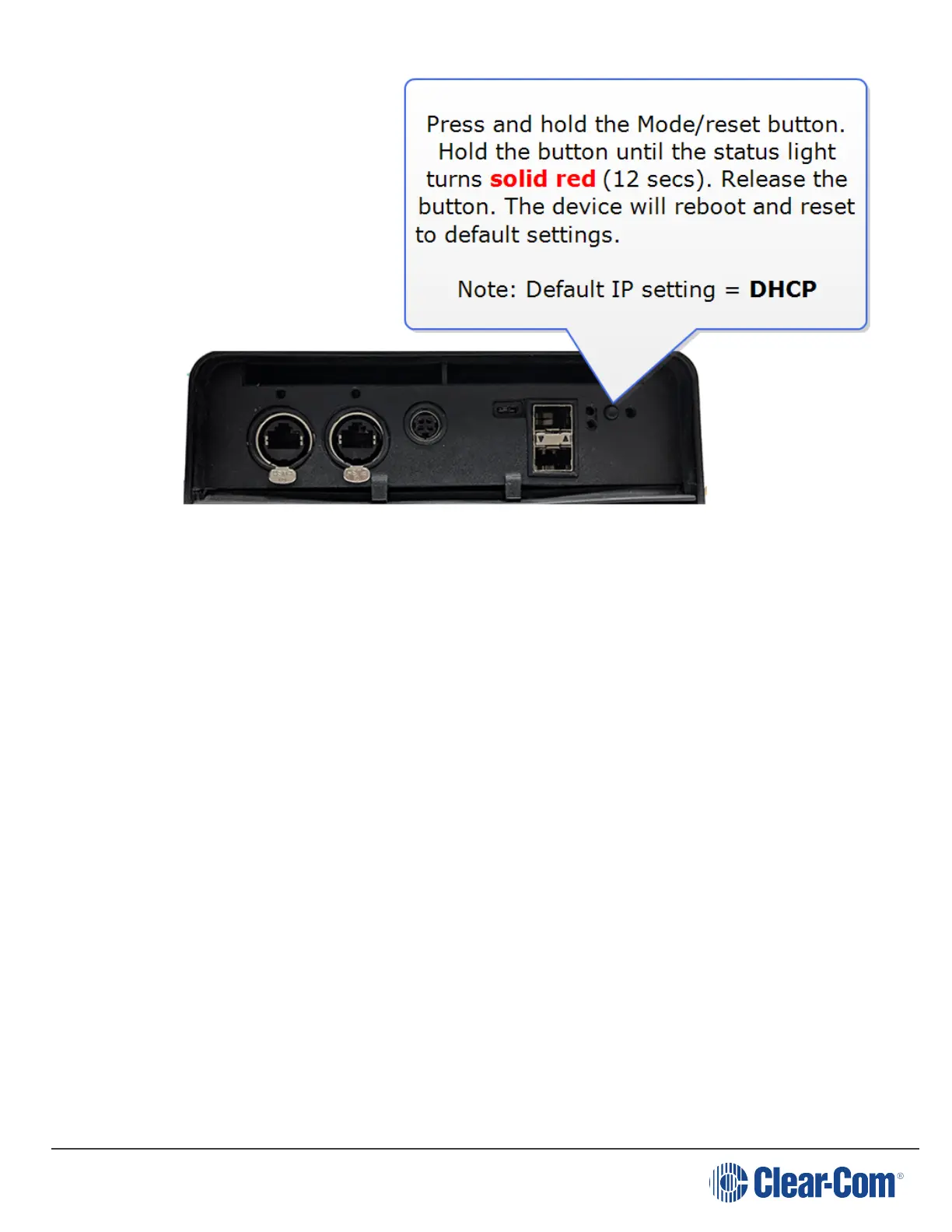

The Admin and the audio (AES67) IP addresses are reset to DHCP. Reset can take up to 5
minutes.
6.6 Transceiver standalone mode
You can use the standalone mode to connect the IPT to two beltpacks with full duplex audio.
This is useful for performing an initial site survey when the IPT has no matrix connection. In
standalone mode, for convenience, you can use a USB battery pack (5V, 3A) to power the
transceiver.
To enable standalone mode:
1. Press and hold the Mode button while simultanaously powering the IPT with the USB
battery pack.
Both LEDs will turn solid yellow when standalone mode is enabled. It takes from 2 to 3
minutes for the IPT to reach standalone mode.
Note: While the IPT is in standalone mode, LED 2 will flash amber .
6.7 Connecting the FS Transceivers to a matrix
The FS IP transceiver connects to an E-IPA-HX card in an Eclipse HX Digital Matrix.
Page 62
