Detaching and attaching the
battery module
You need to detach the battery module from the processing unit when:
Changing the battery module to a different one (e.g. changing •
from a standard battery module to a rechargeable battery
module).
Changing the wearing option (e.g. using the LiteWear cable to •
attach the battery module to the processing unit).
Charging the rechargeable battery module.•
Detaching the battery module from the
processing unit
To detach the battery module from the processing unit:

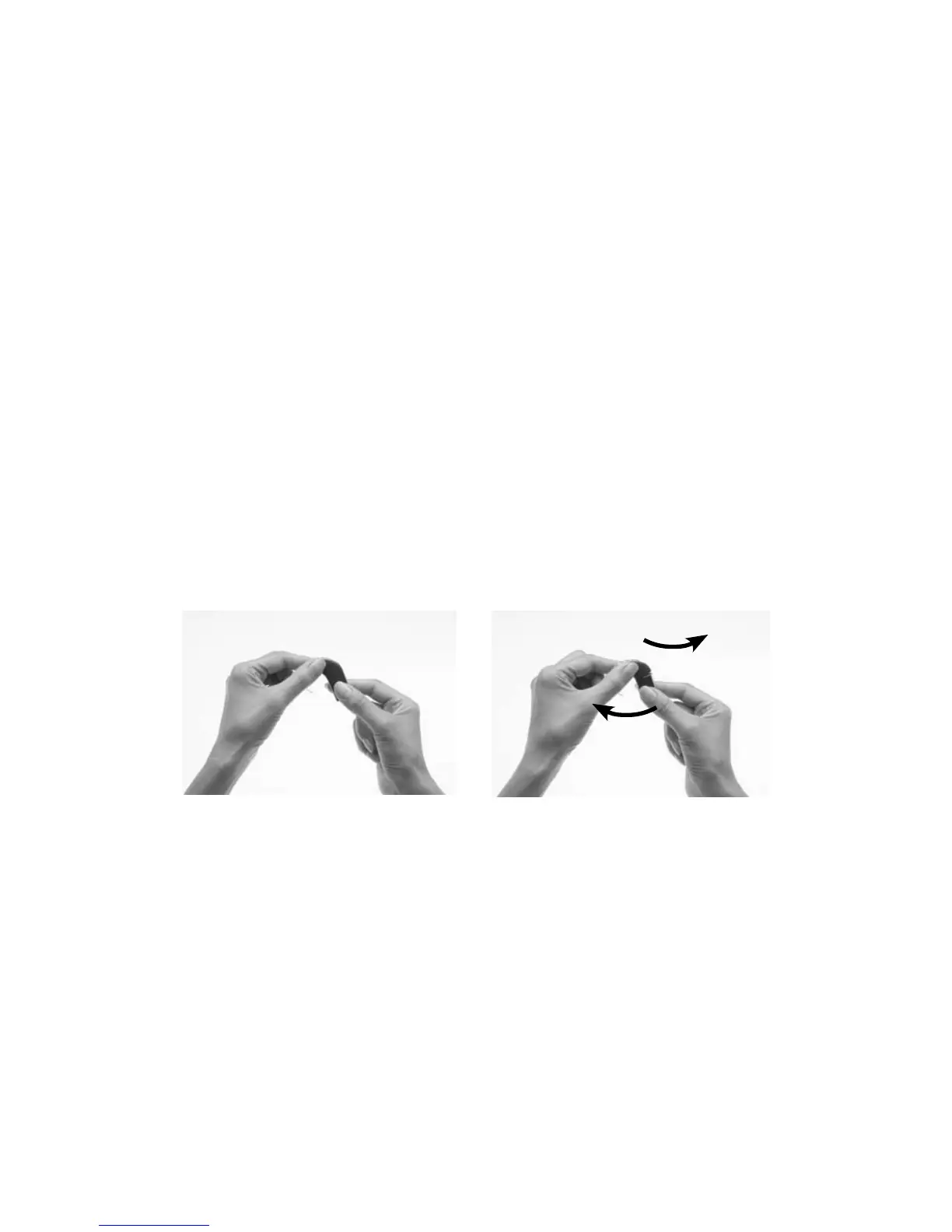

Hold the battery module 1.
and the processing unit
as shown. If the battery
module is locked, you need
to unlock it as described
in the section Locking
and unlocking the battery
module.
Gently twist the battery 2.
module to your left and
the processing unit to your
right until the two parts
separate.
