ComAp IM-NTC-BB - Installation

InteliMains
NT
, SW version 3.0
InteliMains-NT-BTB-3.0-Reference Guide.pdf, ©ComAp – June 2013
11
3 Installation
There are currently three HW versions of InteliMains
NT
controller. Please refer to the corresponding
portion of this chapter for installation instruction for your particular controller type. Chapters relevant
for both HW configurations are marked as “(general)”.

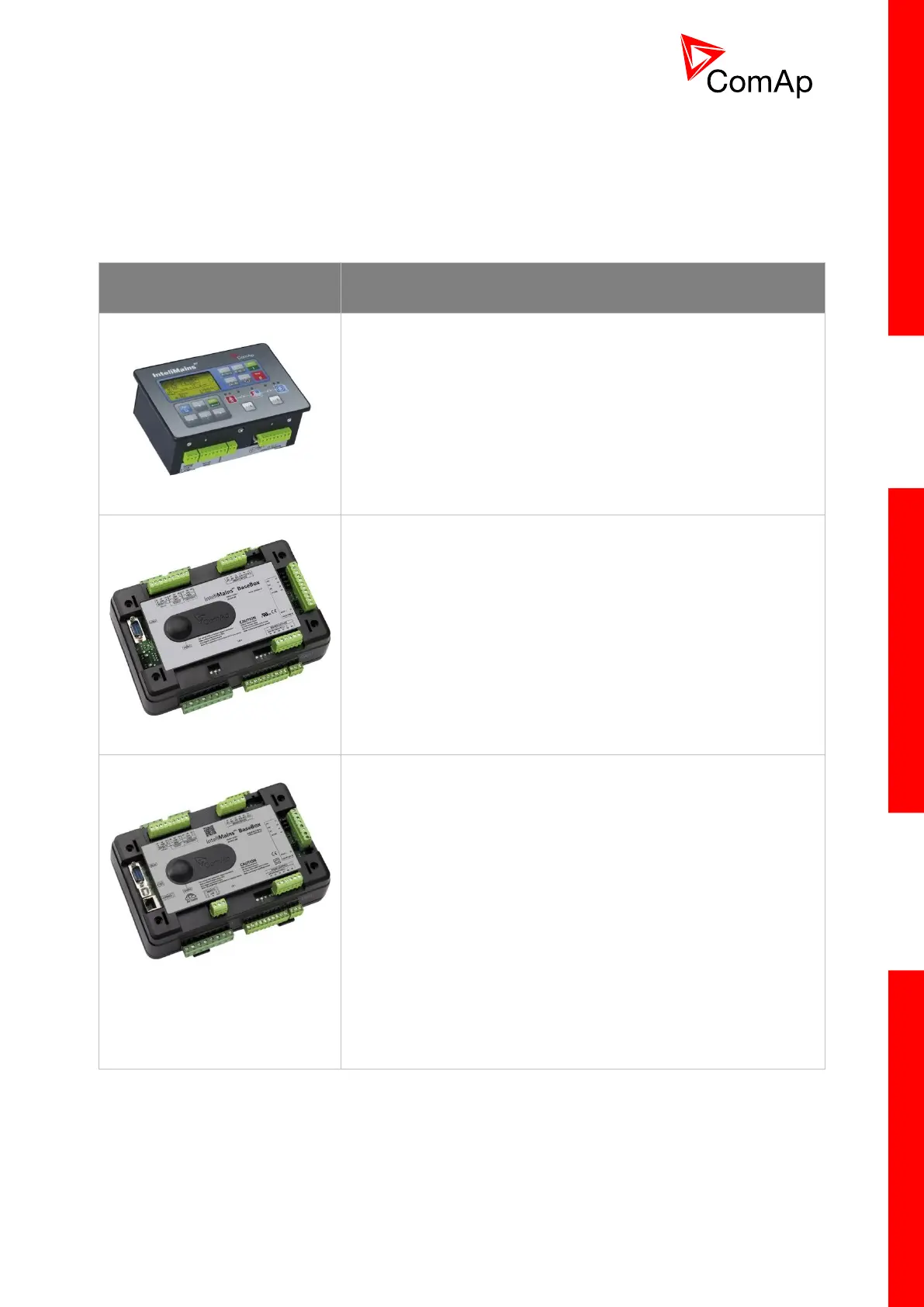

CONTROLLER TYPE
HARDWARE FEATURES
IM-NT
 6 Binary Outputs
 6 Binary Inputs
 Mains and Bus Voltage measurement (3-phase)
 Mains Current measurement (3-phase)
 Auxiliary Current measurement (1-phase)
 RS485 Communication port for universal use
 RS232 Communication port
 CAN1 Communication port (for extension modules)
 CAN2 Communication port (for intercontroller
communication and monitoring)
IM-NT-BB
 12 Binary Outputs
 12 Binary Inputs
 3 Analog Inputs
 1 Analog Output
 Mains and Bus Voltage measurement (3-phase)
 Mains Current measurement (3-phase)
 Auxiliary Current measurement (1-phase)
 RS485 Communication port dedicated for display
 RS232 Communication port
 CAN1 Communication port (for extension modules)
 CAN2 Communication port (for intercontroller
communication and monitoring)
IM-NTC-BB
 12 Binary Outputs
 12 Binary Inputs
 3 Analog Inputs
 1 Analog Output
 Mains and Bus Voltage measurement (3-phase)
 Mains Current measurement (3-phase)
 Auxiliary Current measurement (1-phase)
 RS485 Communication port dedicated for display
 RS485 Communication port for universal use with galvanic
separation
 RS232 Communication port
 CAN1 Communication port (for extension modules)
 CAN2 Communication port (for intercontroller
communication and monitoring)
 USB Communication port
 RJ45 (Ethernet) Communication port
