ComAp InteliATS PWR User Manual

InteliATS
NT
PWR, SW version 2.5, ©ComAp – May 2015 14
IA-NT- PWR-2.5-Reference Guide.pdf

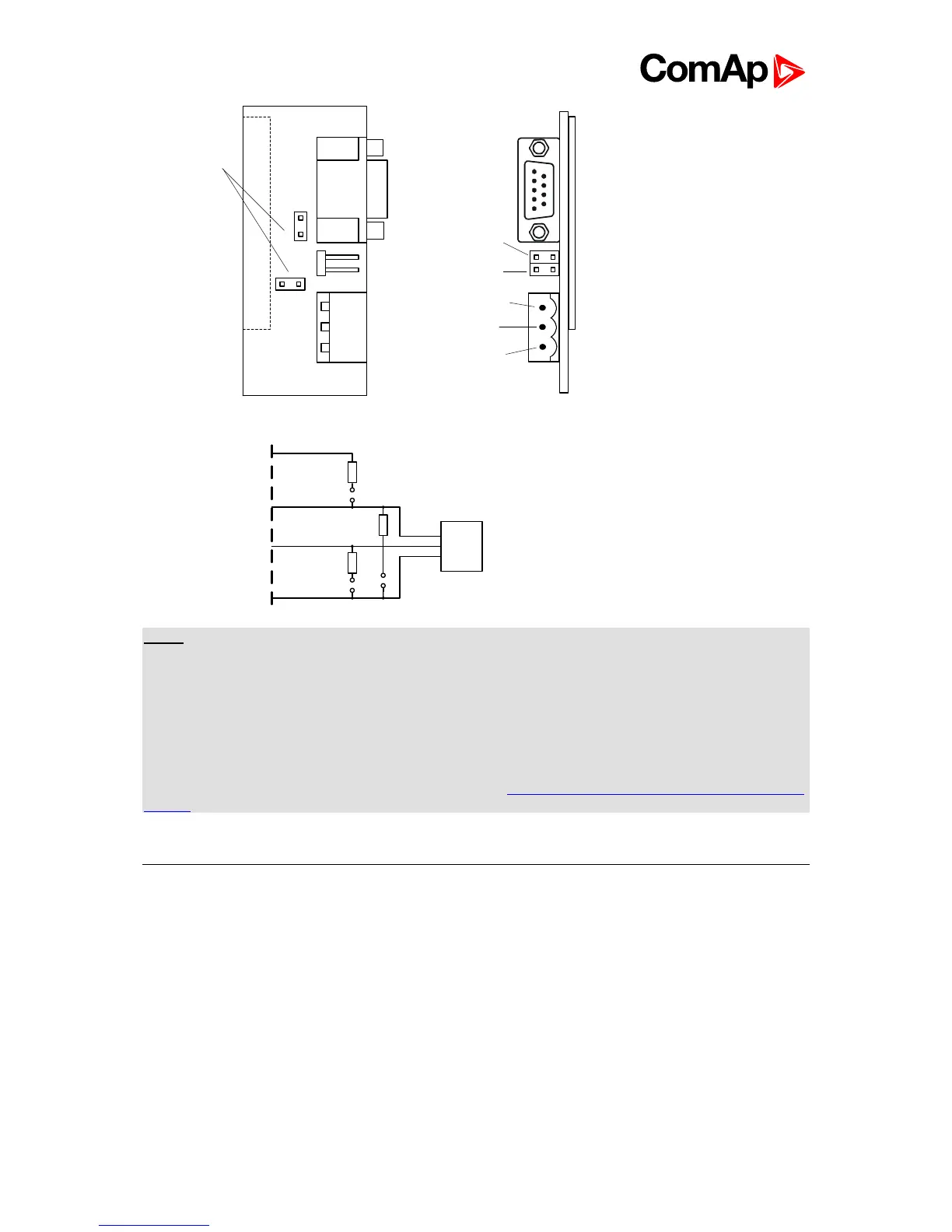

RS232
COM1
RS485
COM2
A (RxTx +)
B (RxTx -)
GND
RS485 120R
terminator jumper
Boot jumper
RS485
balancing
resistor
jumpers
Terminator
Balancing
resistor
A
GND
B
Balancing
resistor
+5V
A
B
GND
RS485 internal
wiring
NOTE:
- Balancing resistors shall be both closed at only one device in whole RS485 network.
- Boot jumper programming – In case of interrupted programming or other software failure is possible
to use the boot jumper programing to restore controller to working order. Connect controller to PC, run
LiteEdit and wait until connection bar at bottom turns red. Than run programming process via menu
Controller -> Programming and cloning – Programming. Select correct firmware and confirm dialog.
Than follow instructions in LiteEdit.
Or follow video guide “Boot Jumper Programming“ at http://www.comap.cz/support/training/training-
videos/.
IL-NT S-USB Service USB communication module
IL-NT S-USB is optional plug-in card to enable InteliATS
NT
communication via USB port. This is
required for computer or Modbus connecting. Card inserts into expansion slot back on the controller.
To insert the module, please follow the instructions for IL-NT RS232 module, procedure is analogous.
You must open the cover first (use screwdriver to open) and then insert the module into slot. Once you
have inserted it, part of the module will remain over plastic box. It is supposed to be used as a service
tool. When you need to remove it, grab module in cutouts and pull it up manually.
