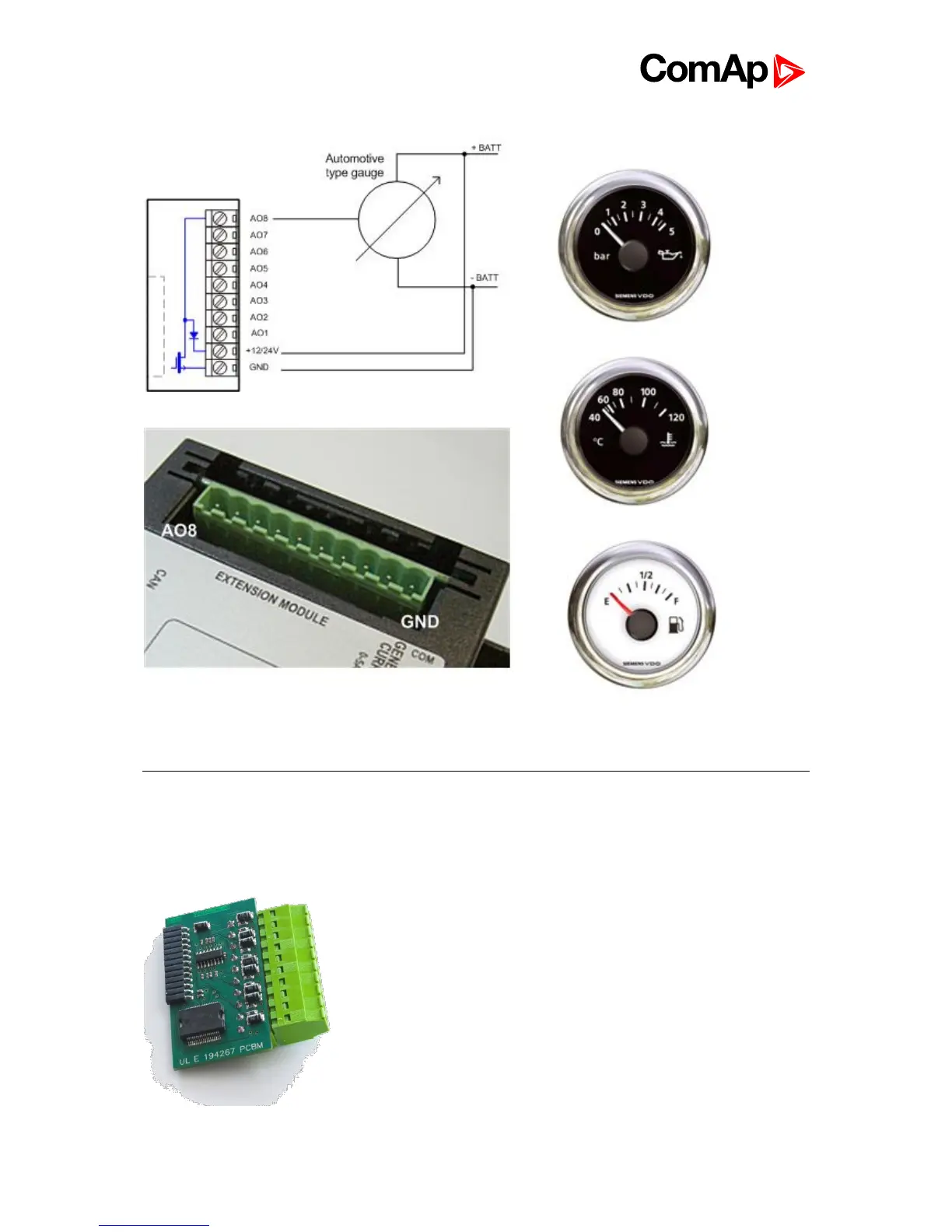

Typical wiring
IL-NT BIO8 Hybrid binary input/output module
IL-NT BIO8 is optional plug-in card. Through this card controller can accommodate up to 8 binary
inputs or outputs. In LiteEdit PC configuration tool (version 4.4 and higher) it is possible to easily
choose if particular I/O will be binary input or output.
Installing IL-NT BIO8 module is similar to installing RS 232 module. The difference is that module fits
to “Extension module” slot and after installing IL-NT BIO8 you do not put back the small cover.
