InteliATS
NT
PWR, SW version 2.5, ©ComAp May 2015 20
IA-NT- PWR-2.5-Reference Guide.pdf
IL-NT AOUT8 Gauge driver module
IL-NT AOUT8 is optional plug-in card. Through this card controller can drive up to 8 VDO style
industrial/automotive gauges. Noncompensated gauges like 0-10V or 0-20mA are not supported.
Gauge type and value are configured in LiteEdit software. Any analog value from controller may be
shown in that way.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the
module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be
installed permanently. Should you need to remove it, the safest way is to remove whole back cover
and then remove module manually.
Installing IL-NT AOUT8 module is similar to installing RS 232 module. The difference is that module
fits to “extension module” slot and after installing IL-NT AOUT8 you do not put back the small cover.
PC Installation Suite consist a set of prepared converting curves for basic usage of PWM outputs with
automotive gauges.

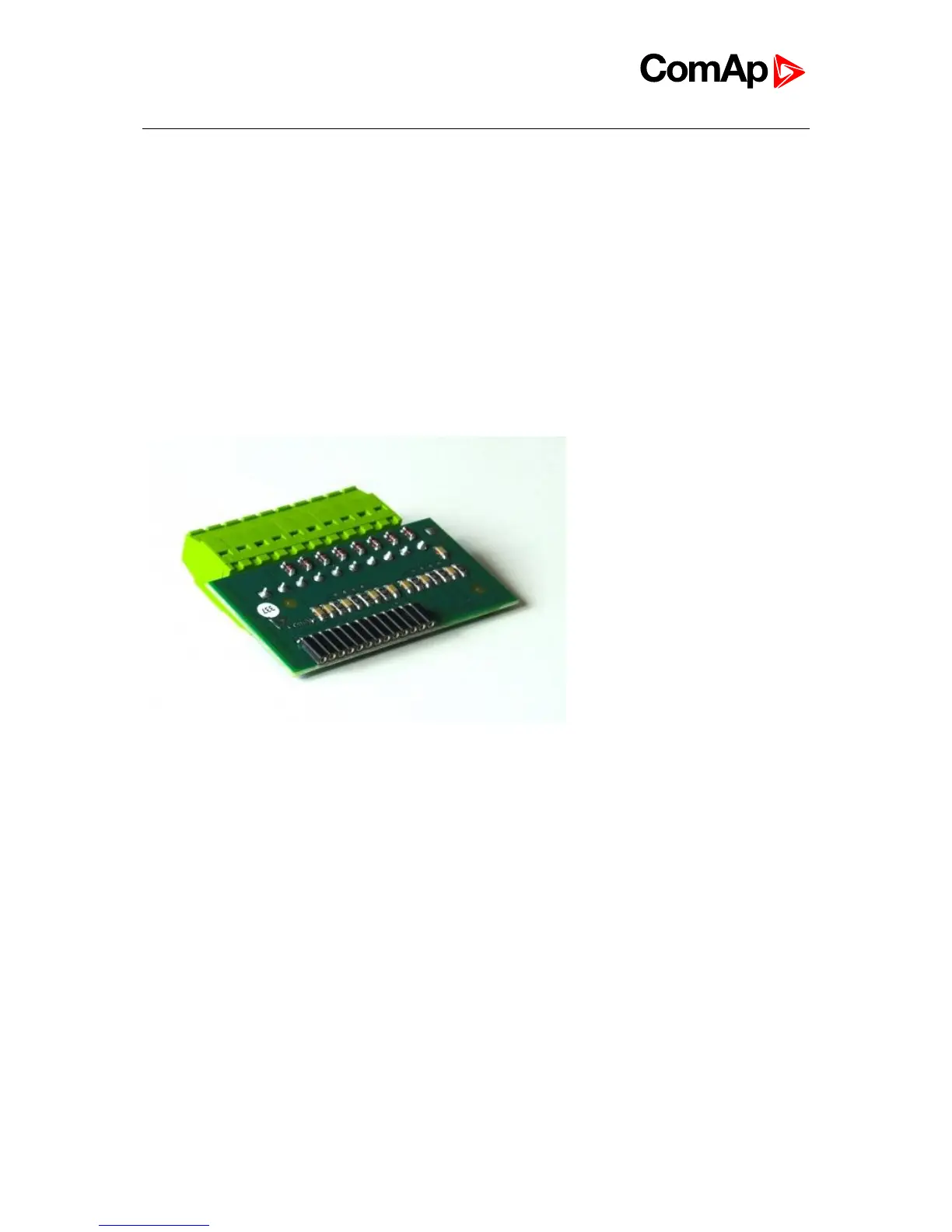

IL-NT AOUT8 module:
