InteliATS

PWR, SW version 2.5, ©ComAp – May 2015 28

IA-NT- PWR-2.5-Reference Guide.pdf

Recommended Wiring

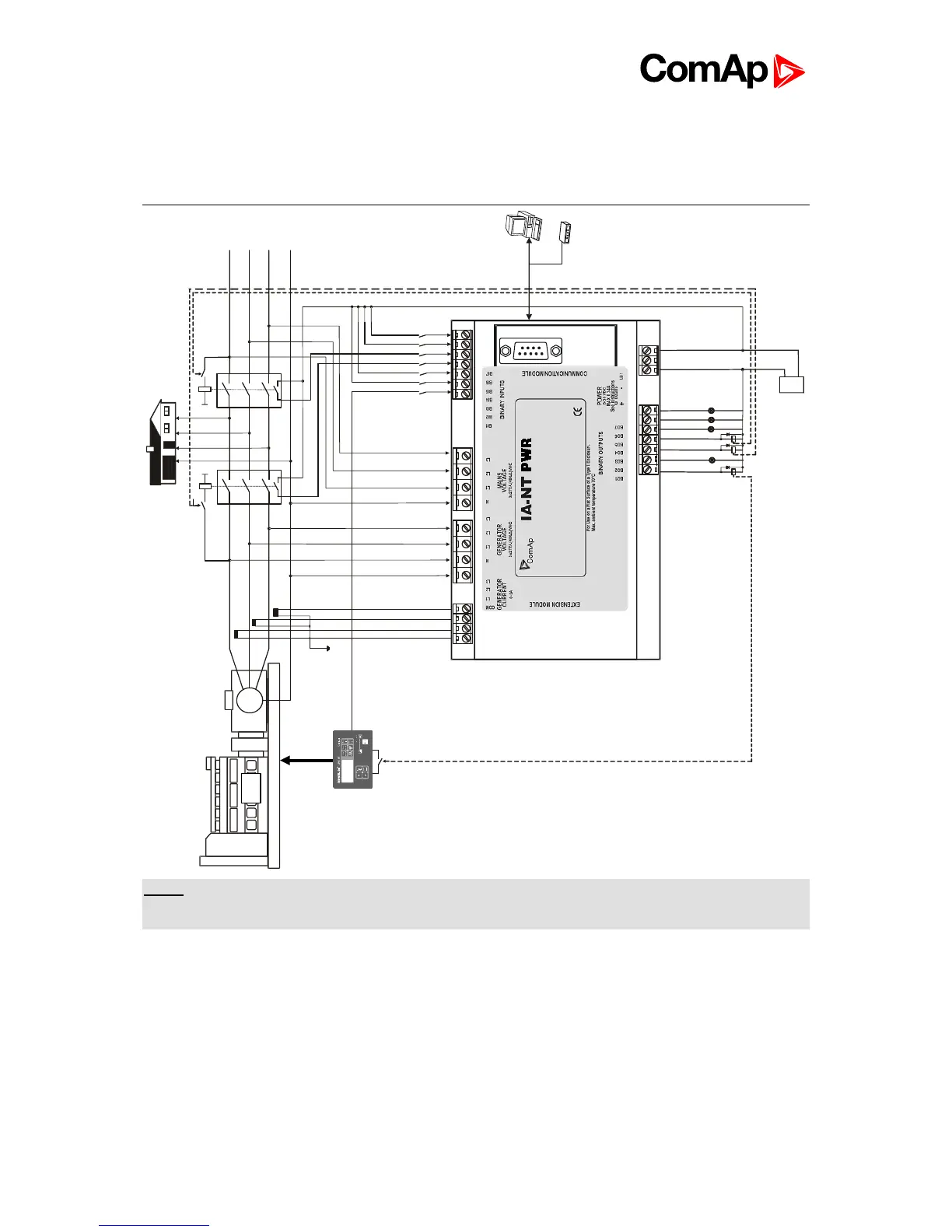

IA-NT PWR – Wiring Diagram

DI ESEL/GAS ENGINE

GENERATOR

RS-232C

Interface

Modem or PC

LOAD

B.Generator C.

.Mains C.B

GEN READY TO LOAD

MAINS FAIL BLOCK

REMOTE AUT

GCB FEEDBACK

MCB FEEDBACK

REMOTE TEST

REMOTE TEST ONLD

AL START FAIL

GCB CLOSE

OPEN

GEN START

STOP

AL MAINS FAIL

ALARM

READY TO AMF

MCB CLOSE

OPEN

CONTROL

SIGNALS

BATTERY

+24V 0V

BINARY

OUTPUTS

GEN-SET CONTROLLER

NOTE:

MCB and GCB are recommended to be mechanically interlocked in case of open delayed transition.

Stripping length of wires: 6-10mm.

Table of Contents1
Table of Contents2
Document Information4
- Clarification of Notation4
- Text4
- Conformity Declaration4
General Guidelines5
- What Is in this Manual5
Description7
- Description of the Controller System7
- Configurability9
- What Is in the Package9
- IL-NT RS232 Communication Module10
- IL-NT RS232-485 Communication Module13
- IL-NT S-USB Service USB Communication Module14
- IL-NT RD Remote Display Software15
- IB-Lite Communication Module15
- IL-NT-GPRS GSM and GPRS Plug-In Modem19
- IL-NT AOUT8 Gauge Driver Module20
- IL-NT BIO8 Hybrid Binary Input/Output Module21
- Internetbridge-NT22
- Programming of IA-NT Controller23
User Interface24
Terminals25
- IA-NT PWR Terminals and Face25
Installation26
- Mounting26
- Dimensions27
Recommended Wiring28
- IA-NT PWR - Wiring Diagram28
Applications29
- AMF Using Two Separate Breakers with Feedbacks (MCB and GCB)29
- AMF Using Two Separate Breakers with Feedbacks (MCB and GCB) + Test on Load30
- AMF Using Two-Position ATS with Feedback31
Getting Started35
- How to Install35
- Current Measurement37
- CT Location38
- Voltage Measurement and Generator Connection Types38
- RS485 Connection42
Inputs and Outputs44
- Binary Inputs IA-NT - Default45
- Binary Inputs - List45
- Binary Outputs IA-NT - Default48
- Binary Outputs - List48
Setpoints54
- Password54
- Basic Settings54
- Comms Settings61
- Engine Params64
- Gener Protect67
- AMF Settings69
- Sync Ctrl73
- Date/Time74
- SMS/E-Mail75
Function Description77
- Operating Modes77
- Circuit Breakers Timing80
Alarm Management82
- Warning (WRN)82
- Trip (TRP)82
- Mains Failure (MF)82
- AMF Time Chart - Genset OK83
- AMF Time Chart - Genset Not Started Properly83
- Voltage Phase Sequence Detection84
Gen-Set Operation States85
- List of Possible Events85
- History File86
Init Screens88
- Customer Logo Screen88
- Firmware Init Screen88
- Language Screen88
- User Interface Screen88
Remote Control and Data Logging89
- PC Software - Liteedit89
- Direct Cable Connection89
- Modem Connection90
- Internet Connection91
- IB-Lite92
- Il-Nt-Gprs93
- Airgate96
- Locate96
- Modbus Protocol97
IL-NT-RD Remote Display Software102
- General Description102
- Warning102
- IL-NT-RD Software Installation102
- IL-NT-RD Wiring103
- Function Description105
- SW Compatibility105
Maintenance106
- Backup Battery Replacement106
Technical Data108
- Inputs/Outputs Overview108
- Power Supply108
- Operating Conditions108
- Dimensions and Weight108
- Mains and Generator109
- Binary Inputs and Outputs109
- IL-NT RS232 Interface (Optional Card)109
- IL-NT RS232-485 Interface (Optional Card)110
- IL-NT S-USB Interface (Optional Card)110
- IB-Lite Interface (Optional Card)110
- IL-NT-GPRS Interface (Optional Card)110
- IL-NT AOUT8 Interface (Optional Card)110
- IL-NT BIO8 Extension Module (Optional Card)111
