Remote Control and Data Logging
PC software – LiteEdit
On the PC (for direct or modem connection) has to be installed the ComAp’s software package
LiteEdit. (based on Windows 95 or newer platform)
LiteEdit enables:
 read the quantities
 adjust all set points
 control the engine
 configure the controller
 select software configuration
 modify alarm inputs and outputs
 modify password, commands protections
 direct, modem or Internet communication
Direct cable connection
An external communication module is necessary to enable direct cable connection to a PC. The
module is plugged into the slot located on the rear side of the controller. Find more information about
installation of the modules in a separate chapter.
A RS232, USB or RS485 interface can be used for direct cable connection to a PC. The setpoint
COM1 Mode or COM2 Mode (according to the interface used) must be set to DIRECT position for this
kind of connection.
RS232 RS232
CROSS-WIRED
RS232 CABLE
IL-NT RS232
IL-NT RS232-485
RS485 RS485RS485 CABLE
IL-NT RS232-485
Physical COM Port
Physical COM Port
RS232 USB
CROSSED-WIRED
RS232 CABLE
IL-NT RS232
Virtual COM Port
USB USB
Shielded USB „A“
cable
IL-NT S-USB
Virtual COM Port
RS232
USB

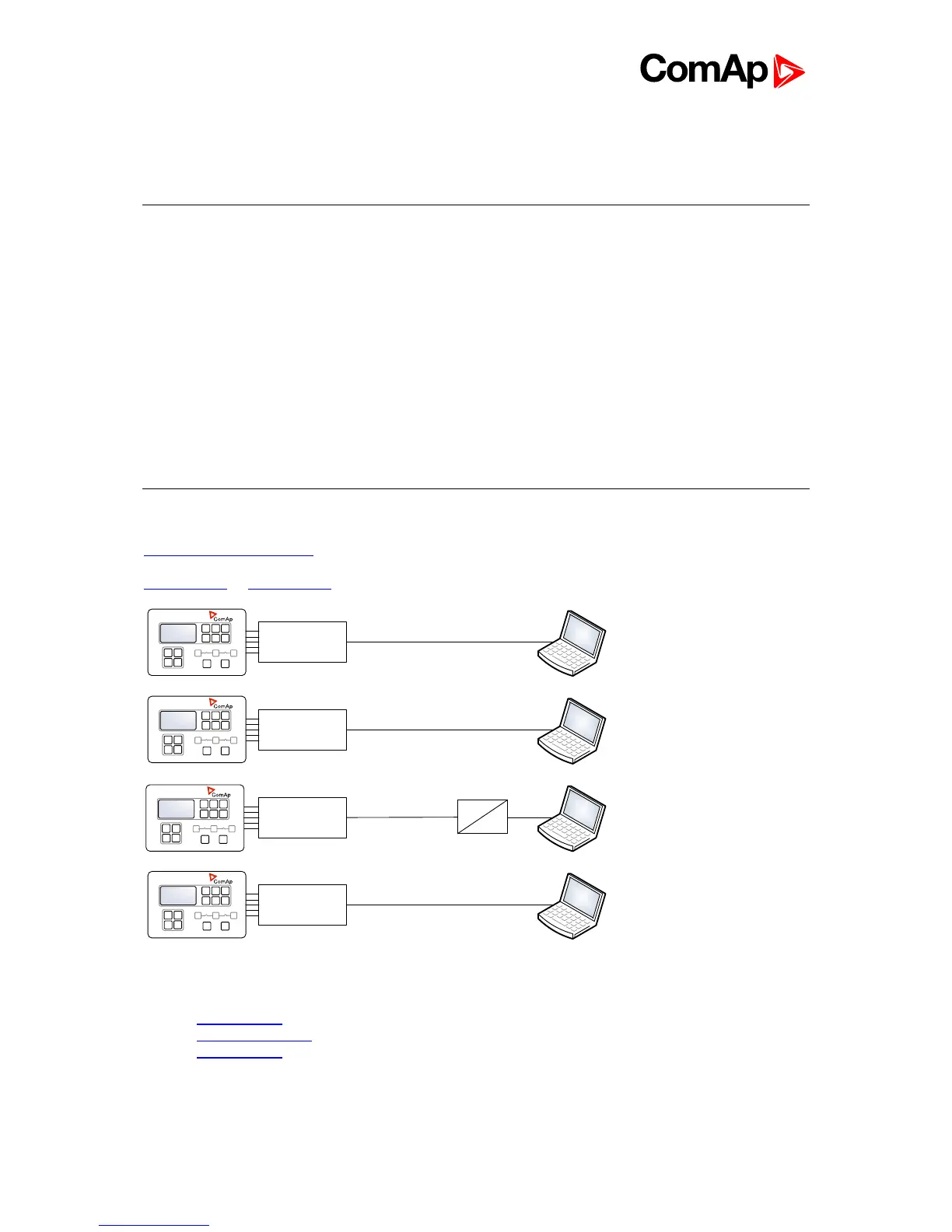

DIRECT CABLE CONNECTION TYPES
The following modules are available for direct connection to a PC:
1. IL-NT RS232
2. IL-NT RS232-485
3. IL-NT S-USB (USB easily removable service module)
The RS232 or USB interface uses COM1 port of the controller. The RS485 uses COM2.
