InteliATS
NT
PWR, SW version 2.5, ©ComAp May 2015 38
IA-NT- PWR-2.5-Reference Guide.pdf

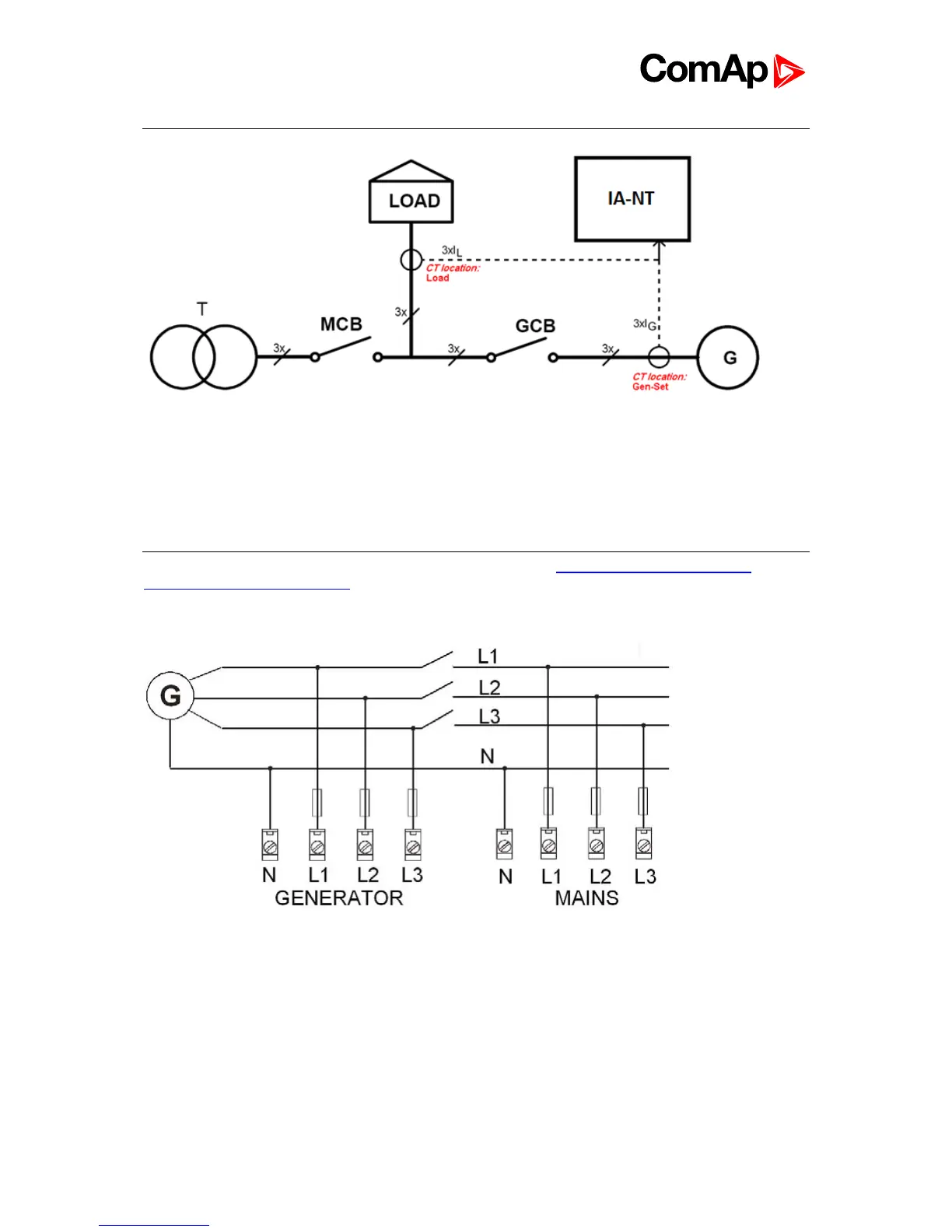

CT location
It is possible to set the location of CT s.
There are two options of CT location.
Load
Gen-Set
According to the connection you have to set the setpoint CT location value to Load or Gen-Set
Voltage measurement and generator connection types
There are 4 voltage measurement ConnectionTypes (setpoint ConnectionType [3Ph4Wire /
3Ph3Wire / Split Ph / Mono Ph].) options. Use 1A fuse on voltage measurement inputs. Every type
matches to corresponding generator connection type:
1. ConnectionType: 3 Phase 4 Wires
Three phase “wye” measurement 3PY
