3Ph 3W – Ph-Ph voltage
SplPhL1L2 – Ph-N voltage
SplPhL1L3 – Ph-N voltage
Mono Ph – Ph-N voltage
Connection Type: 3 Phase 4 Wires

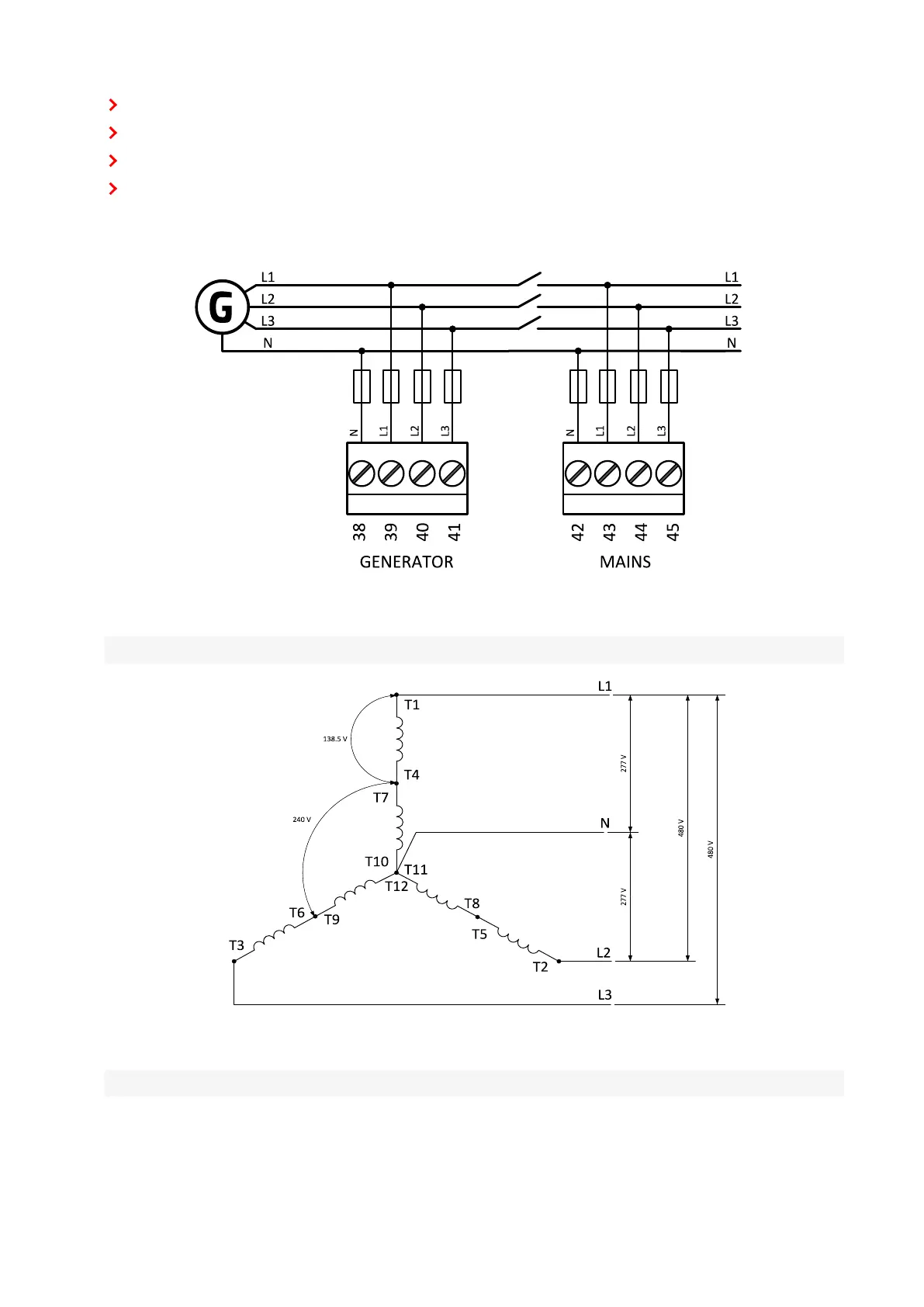

Image 4.11 3 phase application with neutral
Note: Fuse on "N" wire is not obligatory but recommended.
Image 4.12 Typical 3 Phase 4 Wires generator wiring, also known as 3ph HighY
Note: Connection type 277/480V 3-PHASE, Nominal Voltage 3Ph High Y (page 212).
