InteliLite4 AMF20 Global Guide
35
Image 4.13 3 Phase 4 Wires generator wiring, also known as 3ph Low Y
Note: Connection type 120/208V 3-PHASE, Nominal Voltage 3Ph Low Y (page 212).

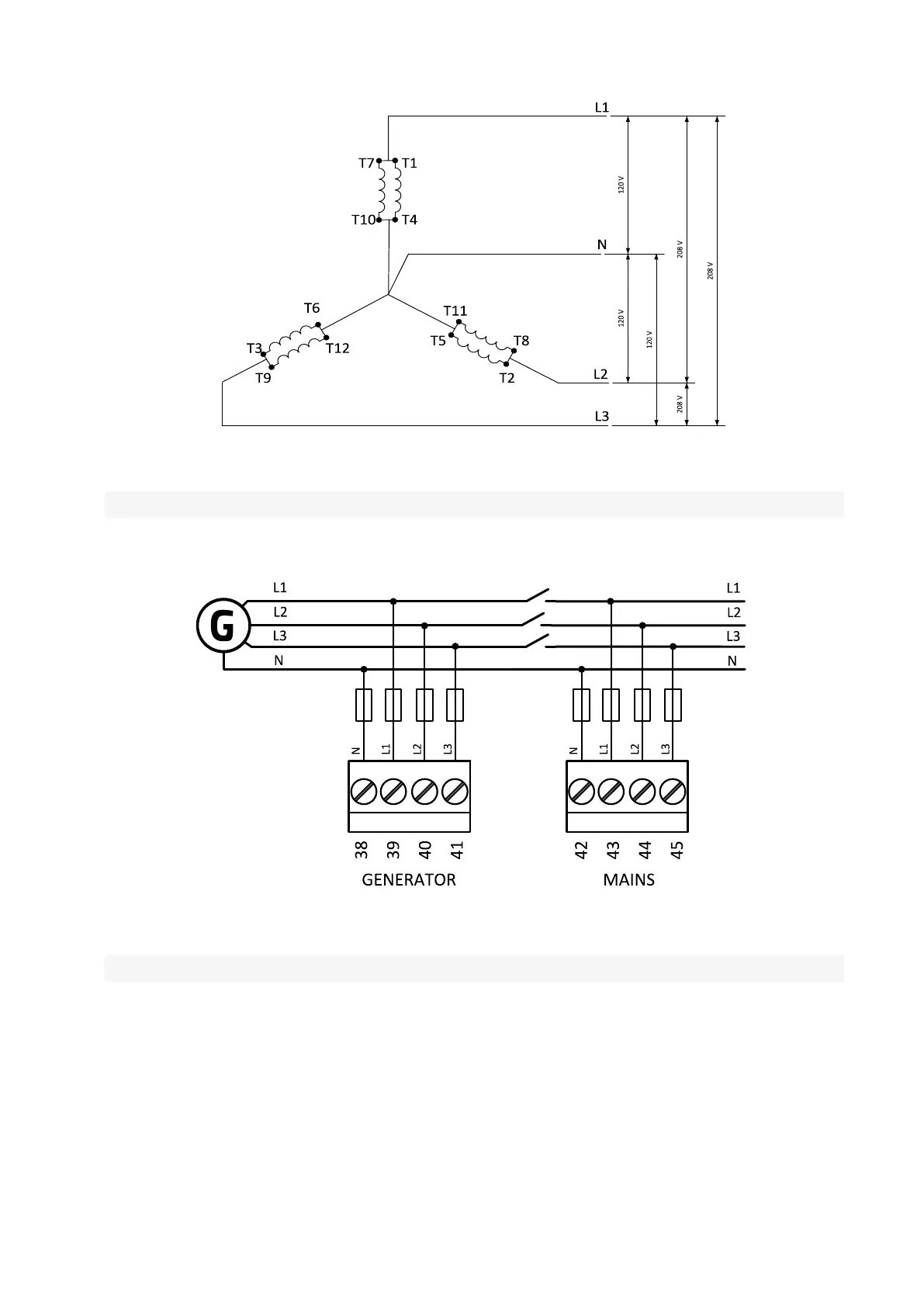

Connection Type: High Leg D
Image 4.14 High Leg Delta application
Note: Fuse on "N" wire is not obligatory but recommended.
