InteliLite4 AMF20 Global Guide
503

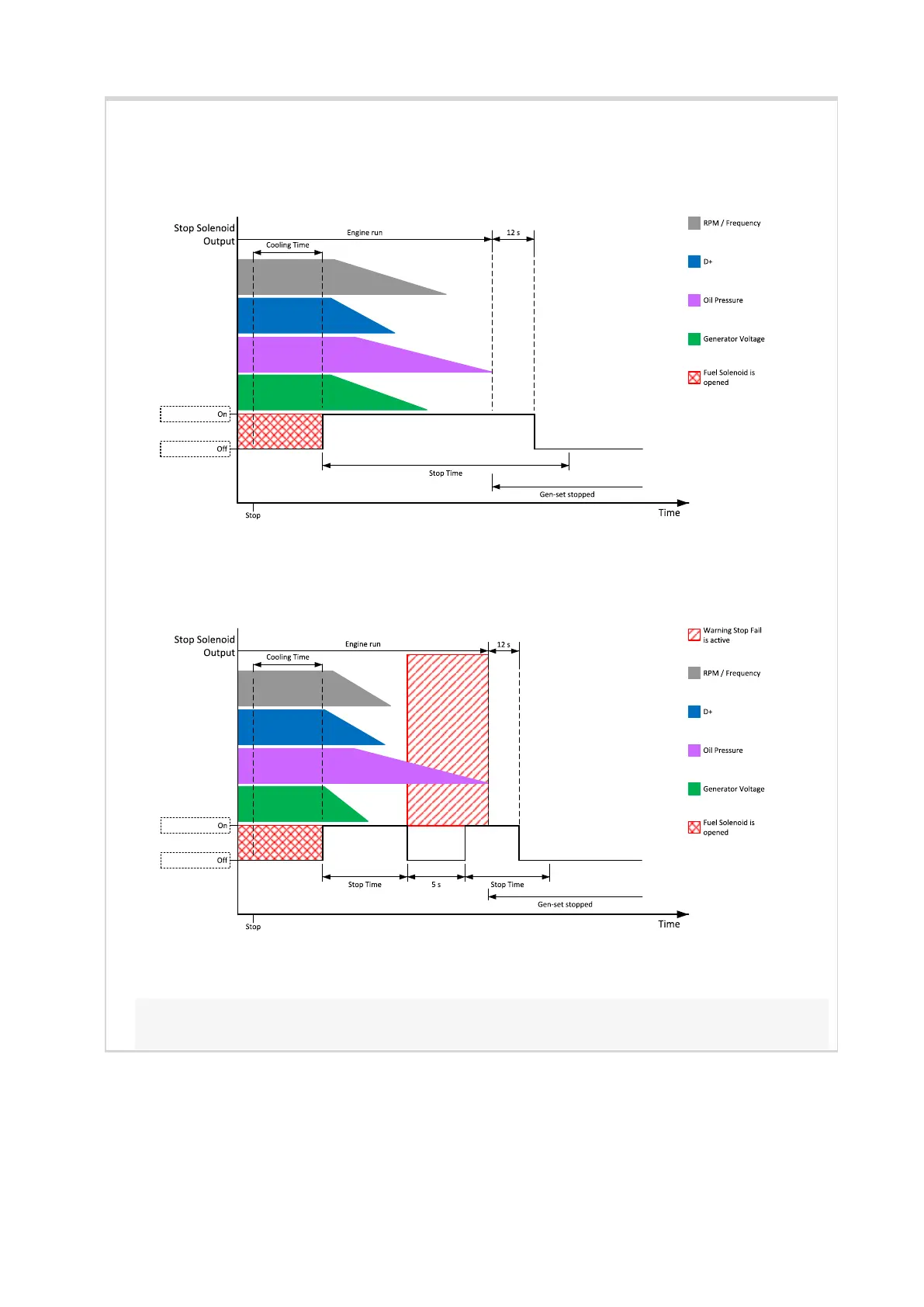

This output is dedicated to control the stop solenoid (valve). The output is activated when an engine stop
command is received and is deactivated 12s after last running engine indication went off, i.e. engine is
stopped.
Image 8.59 Stop Solenoid 1
Image 8.60 Stop Solenoid 2
Note: If Additional running engine indications (page 114) went off during 5s pause than Stop
Solenoid is not activated again otherwise stop solenoid is activated again.
6 back to Logical binary outputs alphabetically
