Related FW 1.3.0 Related applications AMF,MRS
Comm object 32
Description
This output provides 1s pulse when:
Stop button is pressed on the controller front facia or
Stop button is pressed on any of external local/remote terminals or
Stop command is received via communication line or
the input STOP BUTTON is activated.
Stop Button Echo
6 back to Logical binary outputs alphabetically
Related FW 1.3.0 Related applications AMF,MRS
Comm object 2694
Description
LBO is active as long as it's button is pressed or it's LBI is active.
Stop Button State
6 back to Logical binary outputs alphabetically
Related FW 1.3.0 Related applications AMF,MRS
Comm object 25
Description
Output is active for 1 second after STOP SOLENOID (PAGE 502) output activation. This signal is sent to ECU
in case of engine stop request.

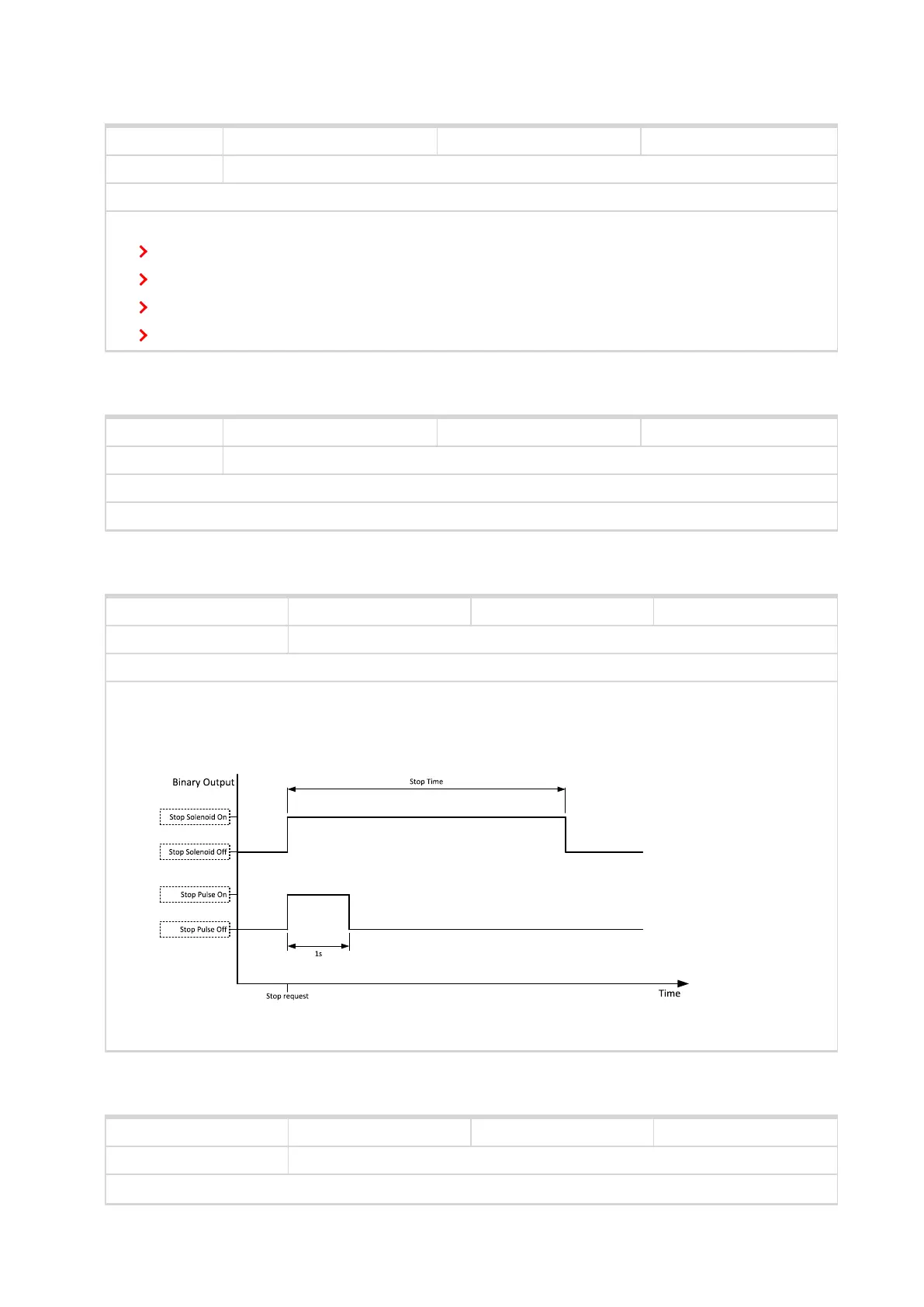

Image 8.58 Stop Pulse
Stop Pulse
6 back to Logical binary outputs alphabetically
Related FW 1.3.0 Related applications AMF,MRS
Comm object 23
Description
Stop Solenoid
