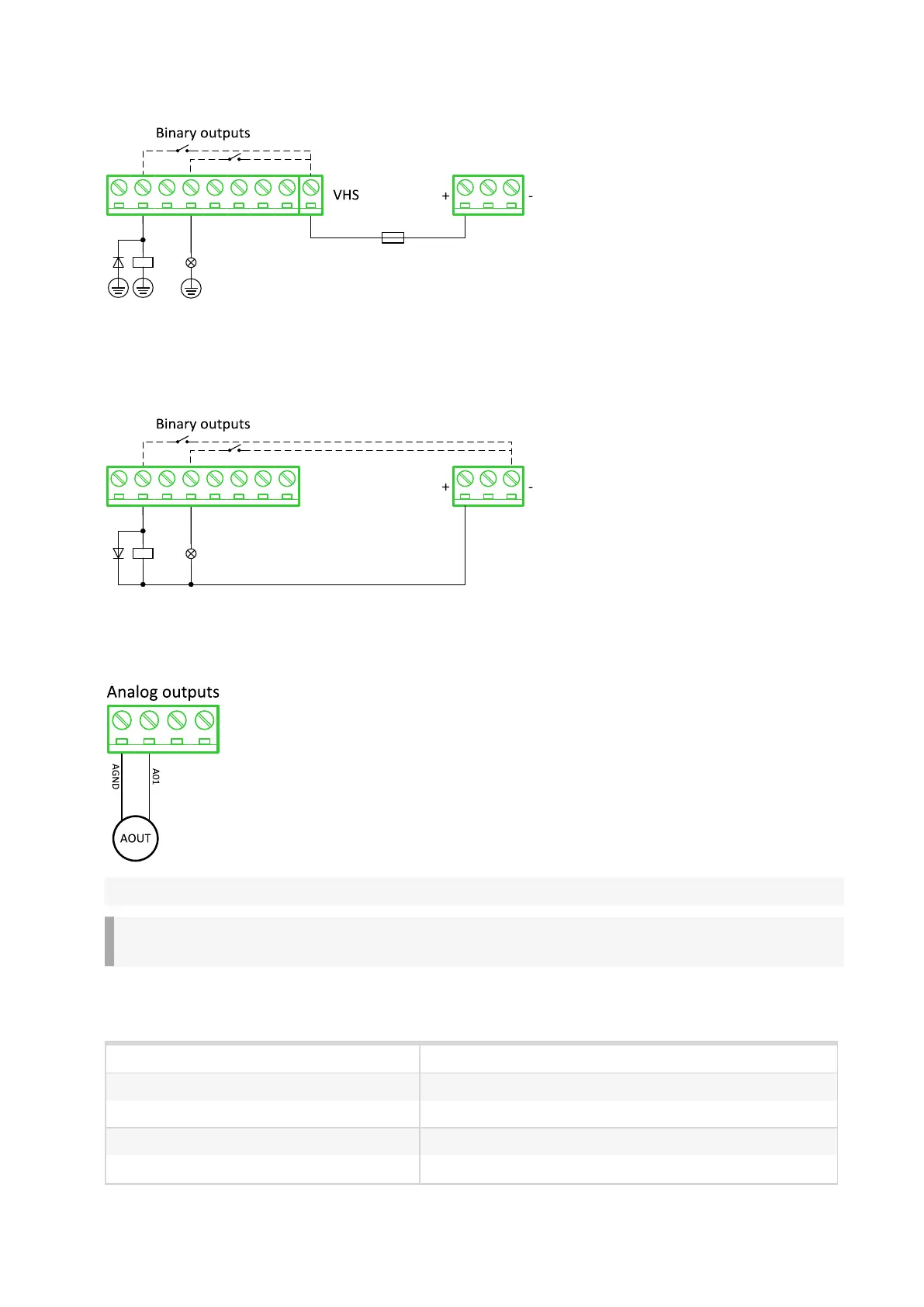

Binary outputs – high side
When high side setting of outputs is chosen – binary output must be connected to the negative potential
directly Terminal VHS (voltage High side) must be connected to positive potential directly. Maximal current of
each binary output is 500mA. Size of fuse depends on load.
Binary outputs – low side
When low side setting of outputs is chosen – binary output must be connected to the positive potential of
power supply directly. Negative potential is connected internally – dashed line.
Analog outputs
Note: Limit of analog ground (AGND) is 100mA.
IMPORTANT: Terminator for analog output has special analog ground (AGND), which must not be
connected to the GND.
Technical data
Power supply 8 to 36 V DC
Current consumption 35 mA at 24 V ÷ 100 mA at 8 V
Interface to controller CAN1
Protection IP20
Storage temperature -40 °C to +80 °C
