InteliLite Global Guide
62

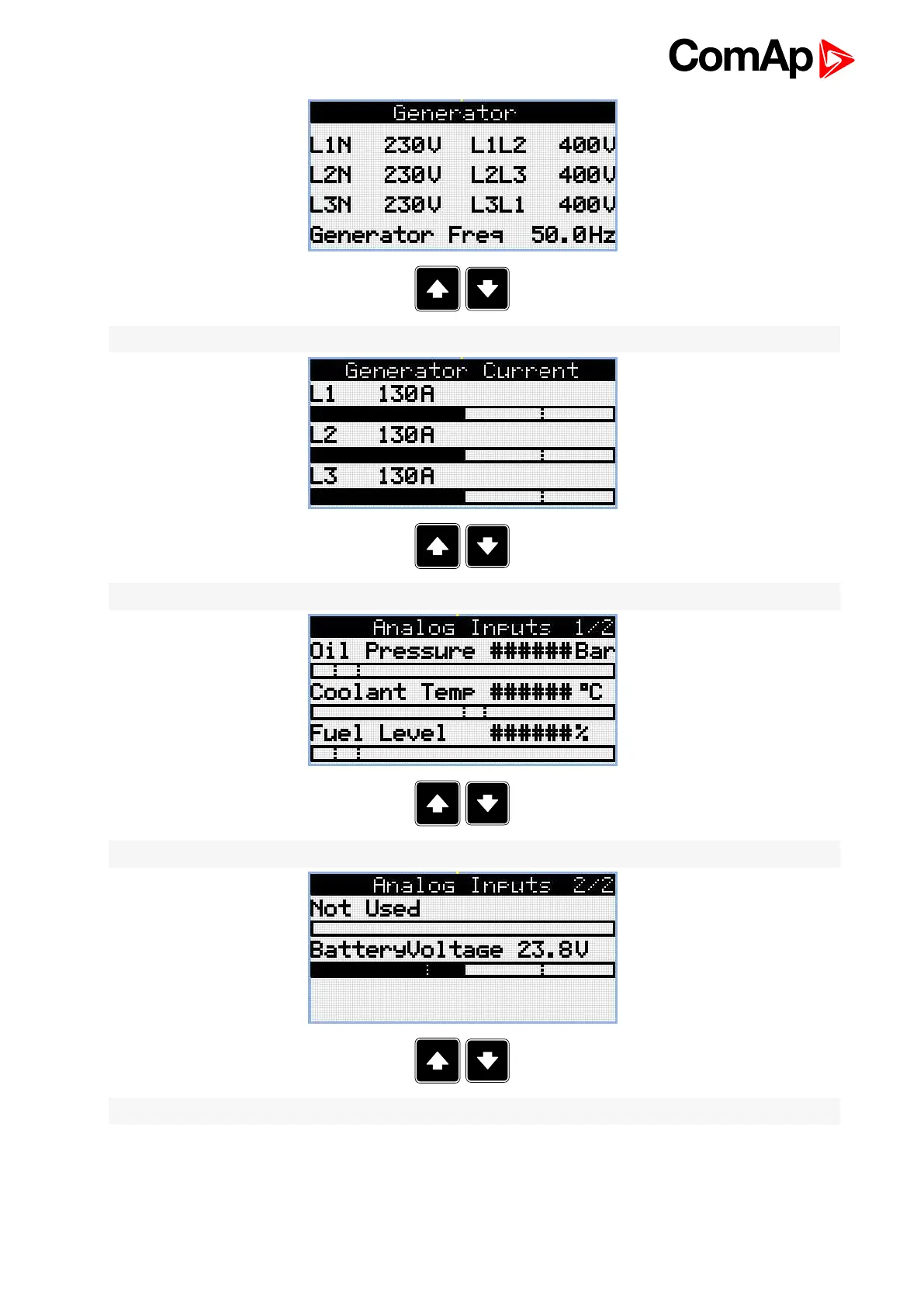

5.1.3 Analog inputs
Number Configured sensor Function
AIN1 VDO 10 Bar OIL PRESSURE (PAGE 670)
AIN2 VDO40-120°C COOLANT TEMP (PAGE 667)
AIN3 VDOLevel % FUEL LEVEL (PAGE 668)
AIN4 None NOT USED (PAGE 669)
5.2 Controller configuration and PC tools
connection
5.2.1 USB 62
5.2.2 RS232/RS485 63
5.2.3 Ethernet 64
6 back to Controller setup
This chapter contains brief introduction into the specifics of firmware and archive upload and connection of
various PC tools to the controller. If you require detailed information on each PC tool please use the included
Help in those PC tools or download their Reference Guides.
5.2.1 USB
You may connect to the controller using the USB port. In this case standard USB A to B cable should be used.
Connection using InteliConfig
Image 5.1 First screen of InteliConfig - select connect to controller
