IL-NT AOUT8 gauge driver module
IL-NT AOUT8 is optional plug-in card. Through this card controller can drive up to 8 VDO style
industrial/automotive gauges. Gauge type and value are configured in LiteEdit software. Any analog
value from controller may be shown in that way.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the
module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be
installed permanently. Should you need to remove it, the safest way is to remove whole back cover
and than remove module manually.
Installing IL-NT AOUT8 module is similar to installing RS 232 module. The difference is that after
installing IL-NT AOUT8 you do not put back the small cover.

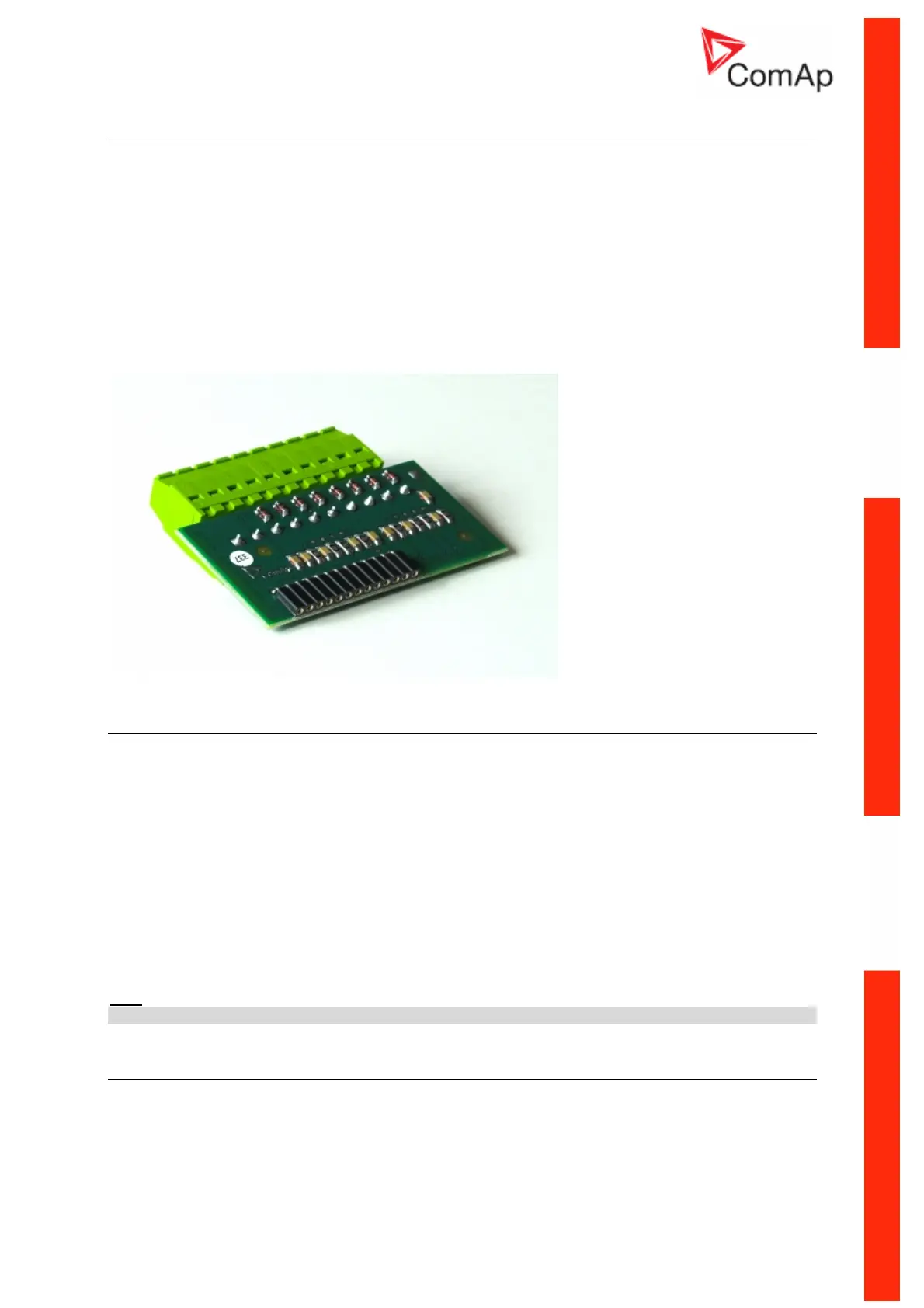

IL-NT AOUT8 module:
IL-NT RD (SW) Remote display software
IL-NT RD (SW) is remote display software for a controller. Remote display provides the same control
and monitoring functions as controller itself. Remote display for IL-NT controllers uses standard IL-NT
controller with Remote display software. No further programing of the display is required – unit is self
configurable from the main controller. It is connected with the controller via RS232 line. Longer
distances (up to 1200m) are possible when RS232/RS485 converters are used. In the future will be
possible to use extension modules with RS485, specifically IL-NT-232-485 and IL-NT-ETH-485.
The IL-NT RD hardware version should fit to the master IL-NT, but it is also possible to use different
HW version for remote display and master controller, of course losing some features, which are not
present on the more simpler HW. For instance, if you use IL-NT AMF8 as a remote display for IL-NT
AMF25, you will miss the Horn button on AMF8. You can use IL-NT MRS4 as a remote display for
ILNT MRS16, but in case you would use IL-NT MRS3, you would miss the GCB control on MRS3.
Hint
:
The remote display software is supposed to be available in the second half-year of 2008.
Remote announciator IGL - RA15
The remote announciator IGL-RA15 can be connected to the IL-NT unit via CAN bus. Any of the
binary outputs can be configured (using LiteEdit software) to each LED diode on the RA15. The
module can be also enabled or disabled using LiteEdit software.
If IGL-RA15 remote announciator is not communicating with a controller via CAN bus, it activates a
warning.
