InteliLite
NT
– AMF20/25, SW version 1.2, ©ComAp – March 2008 39
IL-NT-AMF-Reference Guide1.2.pdf

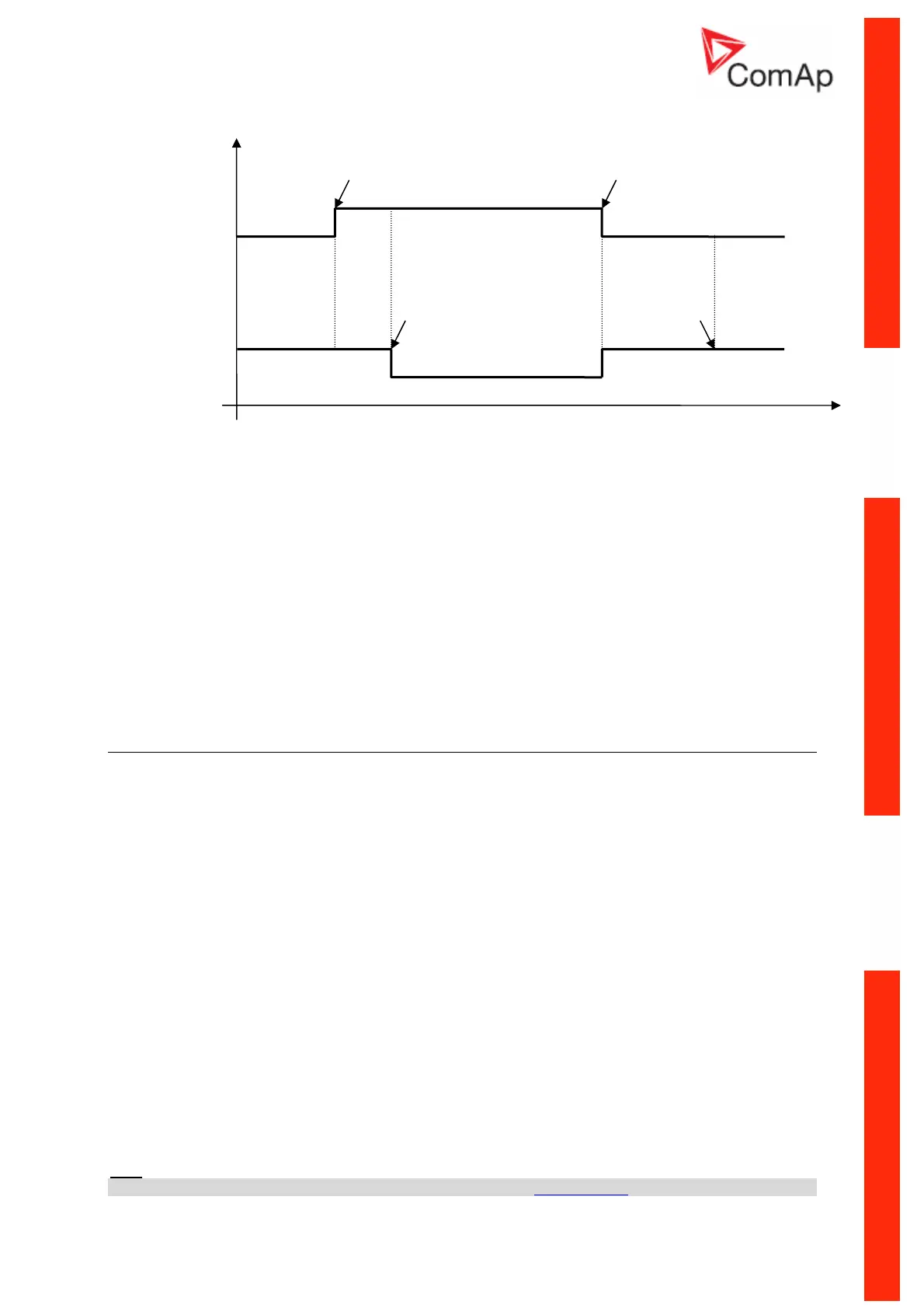

Beginning of
Prestart
Engine
stopped
End of
Prestart
Fuel
solenoid
deactivation
ECU PwrRelay
ECU
communication
failure alarm
blocked
t
Exerc Timer 1
Output activates when Timer 1 is active. Simultaneously, gen-set is started when it is in AUT mode.
Exerc Timer 2
Output activates when Timer 2 is active
Cooling
The output closes when gen-set is in Cooling state.
Fuel Pump
Output closes when the value of fuel level lies under the value of Fuel Pump ON setpoint and opens
when value of Fuel Pump OFF is reached.
Analog inputs
Three analog inputs are jumper configurable for resistive(default), voltage or current sensor.
It is possible to configure on each Analog input:
• Reading from IL Analog inputs or from Engine Control Unit via CAN bus (J1939)
• Sensor characteristics – from the list, or custom sensor curve
• Value dimension (e.g. psi - bars, °F - °C, % - l)
• Number of decimal points (0, 1, 2, …).
Warning and shut-down limits are adjusted in
Engine Protect group.
The analog inputs are configurable. Use LiteEdit software to modify configuration. Default
configuration is:
Oil Pressure
Oil pressure analog input. Default range 0 to 10.0 bars.
Water Temp
Water temperature analog input. Default range 0 to 120 °C.
Fuel Level
Fuel level analog input. Default VDO sensor 0-180R = 0-100%
Hint:
For further information about analog inputs’ configuration see Analog inputs.
