– AMF20/25, SW version 1.2, ©ComAp – March 2008 11
IL-NT-AMF-Reference Guide1.2.pdf

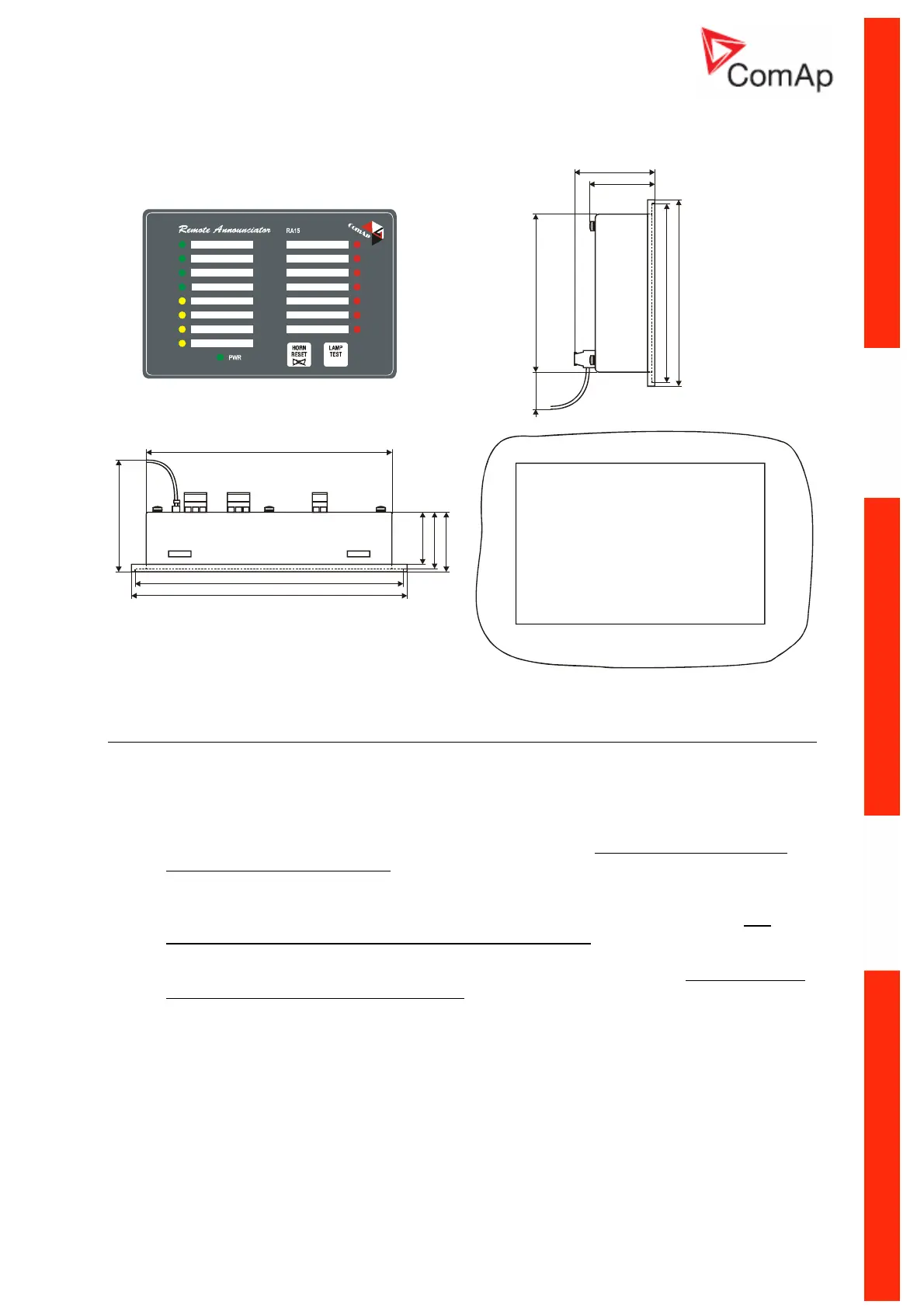

See the documentation of RA15 for the technical and function description.
165 (6,5”)
38 (1,5”)
40 (1,6”)
~ 75 (3,0”)
~ 35 (1,4”)
180 (7,1”)
185 (7,3”)
106 (4,2”)
44 (1,7”)
54 (2,1”)
~ 25 (1,0”)
120 (4,7”)
125 (4,9”)
Cutout
for Remote Announciator
167 x 108 mm
(6,6 x 4,3 )”
IG IOM/PTM module
IG-IOM and IGS-PTM modules are I/O extension modules equipped with 8 binary inputs, 8 binary
outputs, 4 analogue inputs and one analogue output. The module can be used for AMF25, MRS15,
16, 19 only.
Binary inputs and outputs are configurable the same way like inputs and outputs on iL.
Analogue inputs are configurable like iL with the limitation that the binary and tristate mode
can not be used on PTM module.
The protection of analogue IOM/PTM inputs is activated by overcrossing the limits, active only
when the engine is running.
IG-IOM analogue inputs are resistive (the same parameters like IL-NT) 0 Ω-2,4 kΩ. The
module IOM is designed for especially VDO resistive sensors.
IGS-PTM analogue inputs are configurable by jumpers to ranges 0-250Ω, 0-100mV, 0-20mA.
The module can be used especially for Pt100 sensors and current sensors. The module PTM
is not suitable for VDO temperature sensor.
