InteliMains
NT
, SW version 3.2.0
InteliMains-NT-MCB-MGCB-3.2.0-Reference Guide.pdf, ©ComAp – April 2015
7.9 System load control modes
HINT
If you need more information on how to choose suitable load control mode, please refer to the chapter
6.8.7 Managing system load control modes.
System load control modes are determined by setpoints ProcessControl:Mload ctrl PtM and
SysLdCtrl PtM.
If ProcessControl:#SysLdCtrl PtM is set to BASELOAD, then Gen-set group requested load is not
determined by InteliMains but it is given by setpoint ProcessControl:#SysBaseLoad regardless of
ProcessControl:Mload ctrl PtM setting.
System baseload control via
loadsharing line
System baseload control via
loadsharing line with external input
Import/Export to/from Mains
control
Import/Export to/from Mains
control with external input
Required temperature control
ProcessControl:#SysBaseLoad
SYSBLD->LS
ANEXTSYSBLD->LS
IMP/EXP
ANEXT IMP/EXP
T BY POWER
ProcessControl:
Mload ctrl PtM
LDSHARING
BASELOAD
ProcessControl:
SysLdCtrl PtM
Requested gen-set
group power on
CAN bus

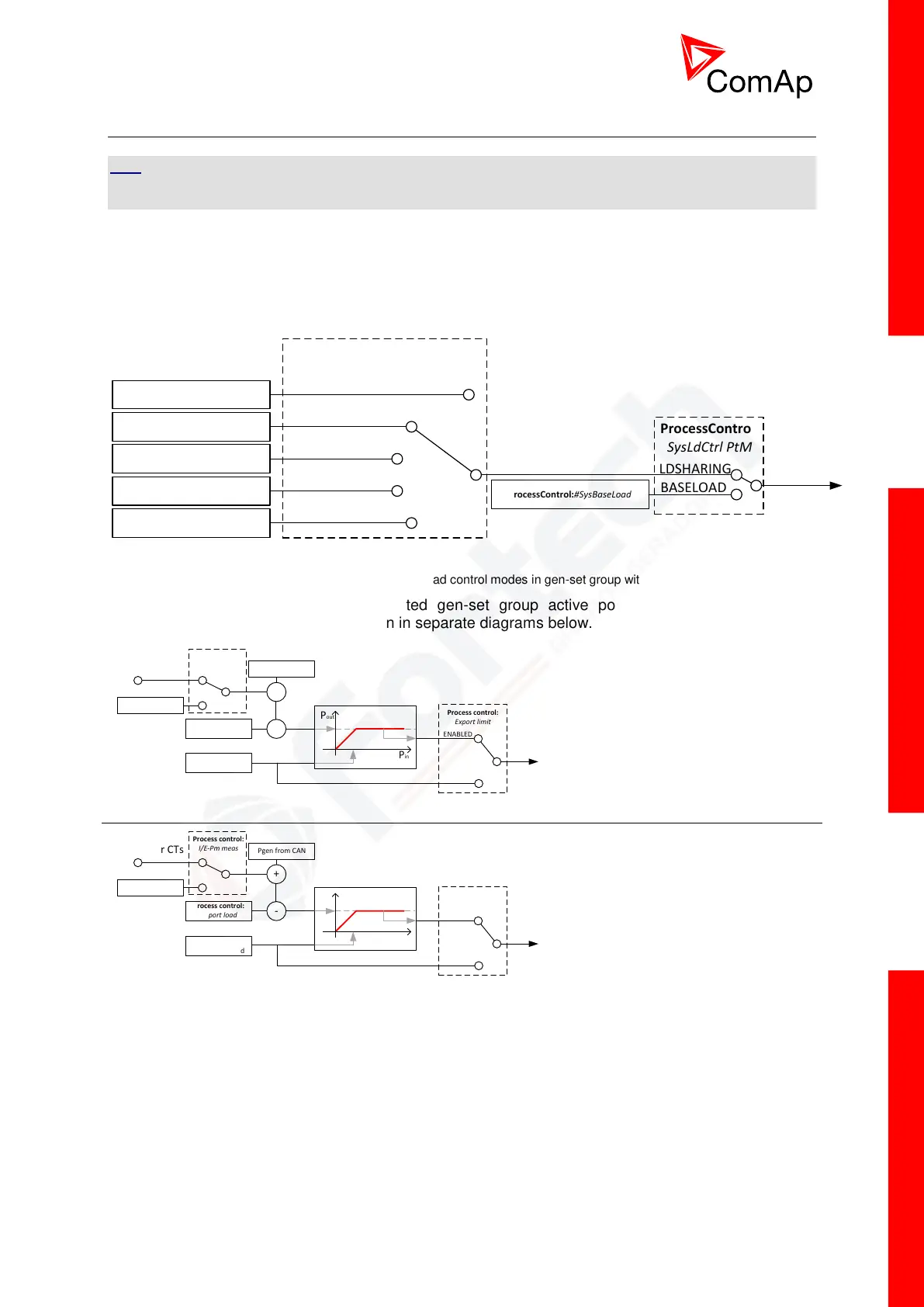

Figure: General schematic of system load control modes in gen-set group with InteliMains
Determination of actual value of requested gen-set group active power for various settings of
ProcessControl:Mload ctrl PtM is shown in separate diagrams below.
AI: LdCtrl:I/E-Pm
Controller CTs
Process control:
I/E-Pm meas
Process control:
Import load
Process control:
SysBaseLoad
Process control:
Export limit
ENABLED
DISABLED
Pgen from CAN
+
-
Pin
Pout
7.9.1 SYSBLD->LS
Following diagram shows the way
of calculation of requested gen-set
group active power if
ProcessControl:Mload ctrl PtM =
SYSBLD->LS.
AI:
MLC:AnExSysBld
AI: LdCtrl:I/E-Pm
Controller CTs
Process control:
I/E-Pm meas
Process control:
Import load
Process control:
Export limit
ENABLED
DISABLED
Pgen from CAN
+
-
Pin
Pout
7.9.2 ANEXSYSBLD-
>LS
Following diagram shows the way
of calculation of requested gen-set
group active power if
ProcessControl:Mload ctrl PtM =
ANEXSYSBLD->LS.
To Next Page
