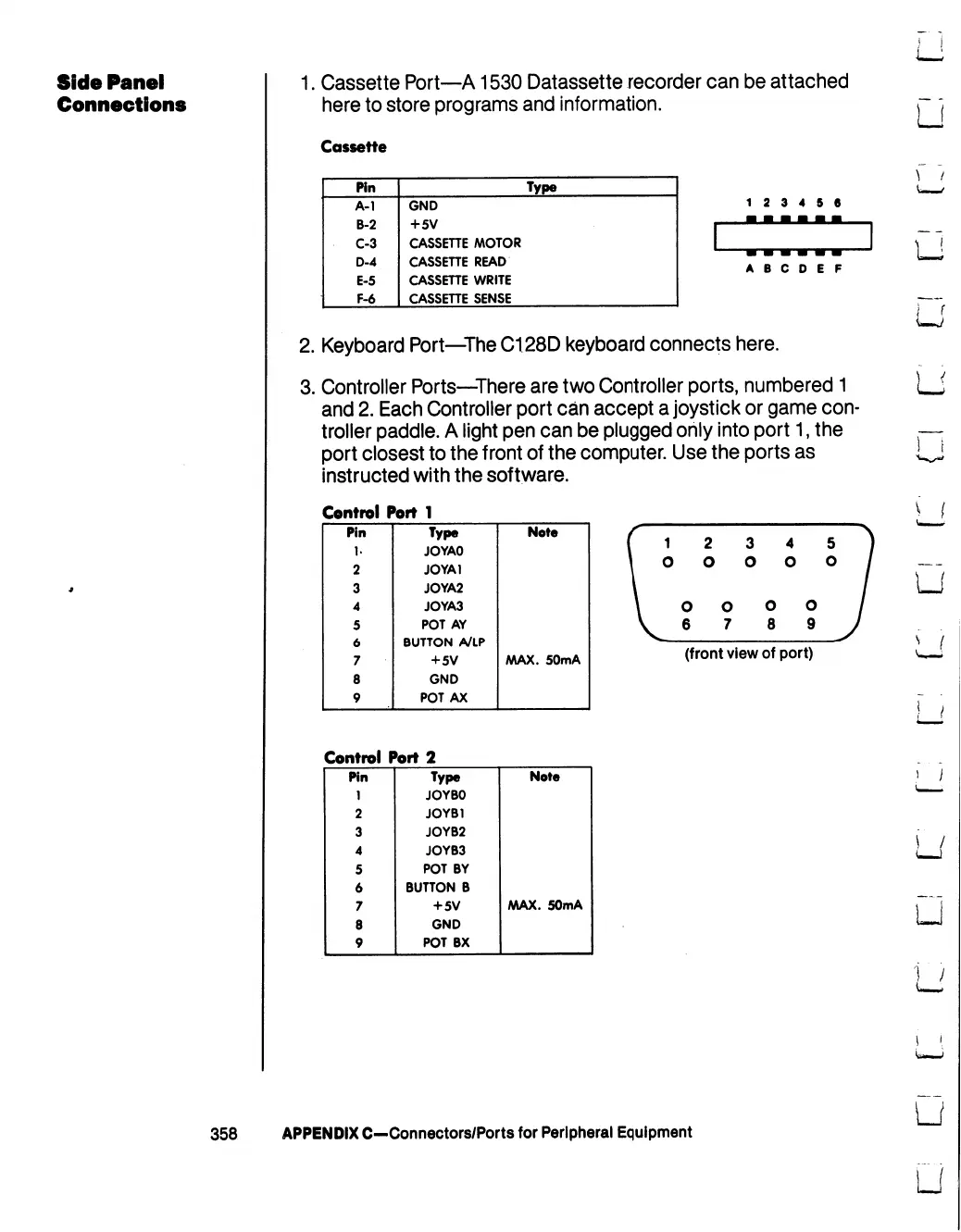

Side Panel
Connections
1. Cassette Port—A1530 Datassette recorder can be attached
here to store programs and information.
Cassette
Pin
A-l
B-2
C-3
D-4
E-5
F-6
GND
+5V
CASSETTE
CASSETTE
CASSETTE
CASSETTE
Type
MOTOR
READ
WRITE
SENSE
12 3 4 5 6
A B C D E F
2. Keyboard Port—The C128D keyboard connects here.
3. Controller Ports—There are two Controller ports, numbered 1
and 2. Each Controller port can accept a joystick or game con
troller paddle. A light pen can be plugged only into port 1, the
port closest to the front of the computer. Use the ports as
instructed with the software.
Control Port 1
Pin
1.
2
3
4
5
6
7
8
9
Type
JOYA0
JOYA1
JOYA2
JOYA3
POT AY
BUTTON A/IP
+ 5V
GND
POT AX
AAAX. 50mA
(front view of port)
Control Port 2
Pin
1
2
3
4
5
6
7
8
9
Type
JOYBO
JOYB1
JOYB2
JOYB3
POT BY
BUTTON B
+5V
GND
POT BX
Note
AAAX. 50mA
358
APPENDIX C—Connectors/Ports for Peripheral Equipment
