Chapter 2 System Overview

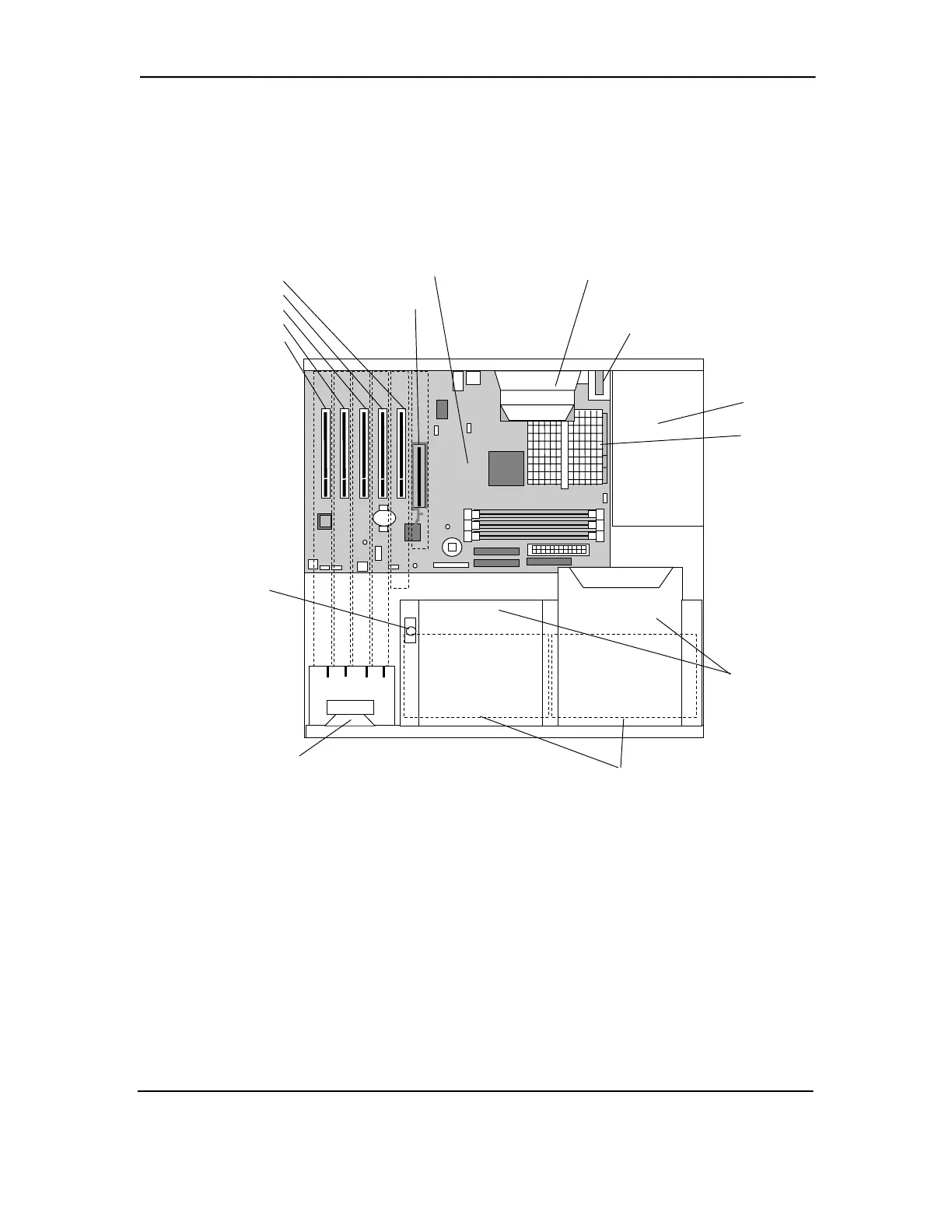

Figure 2-5 shows the layout for the Slim Desktop. Service features include:
♦ Tilting upper drive bay assembly (for easy access to all drive bays).
♦ Easy access to expansion slots and all socketed system board components.
Upper Drive Bays
(Tilting Assembly)
Smart Cover Sensor Switch
Smart Cover Lock Solenoid
Lower Drive Bays
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
AGP Slot [1]
Auxiliary Chassis Fan [2]
Speaker [3]
Processor
System Board
Power Supply
Back
Front
NOTES:
[1] AGP slot may be populated with AGP graphics card or GPA/AIMM card on some configurations.
[2] Auxiliary chassis fan installed on systems with 933 MHz (or faster) processor.
[3] Installed on systems with integrated AC97 audio.
Figure 2–5. Slim Desktop Chassis Layout, Top View
Compaq Deskpro and Evo Personal Computers
Featuring Intel Celeron and Pentium III Processors
Fifth Edition – March 2002
2-8
