Figure 2-5 shows the layout for the Configurable Minitower in the minitower configuration.
Features include:
♦ Externally accessible drive bay assembly may be configured for minitower (vertical) or
desktop (horizontal) position.
♦ Easy access to expansion slots and all socketed system board components.
Drive Lock
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
AGP Slot [2]
Auxiliary
Chassis Fan [1]
System Board
Power Supply
Back
Front
Processor
Externally Accessible
Drive Bays
Internal
Drive Bays
Speaker [3]
NOTES:
[1] Auxiliary chassis fan installed on systems with 933 MHz or faster processor.
[2] AGP slot may be populated with graphics card or GPA/AIMM card on some configurations.
[3] Installed systems with integrated AC97 audio.

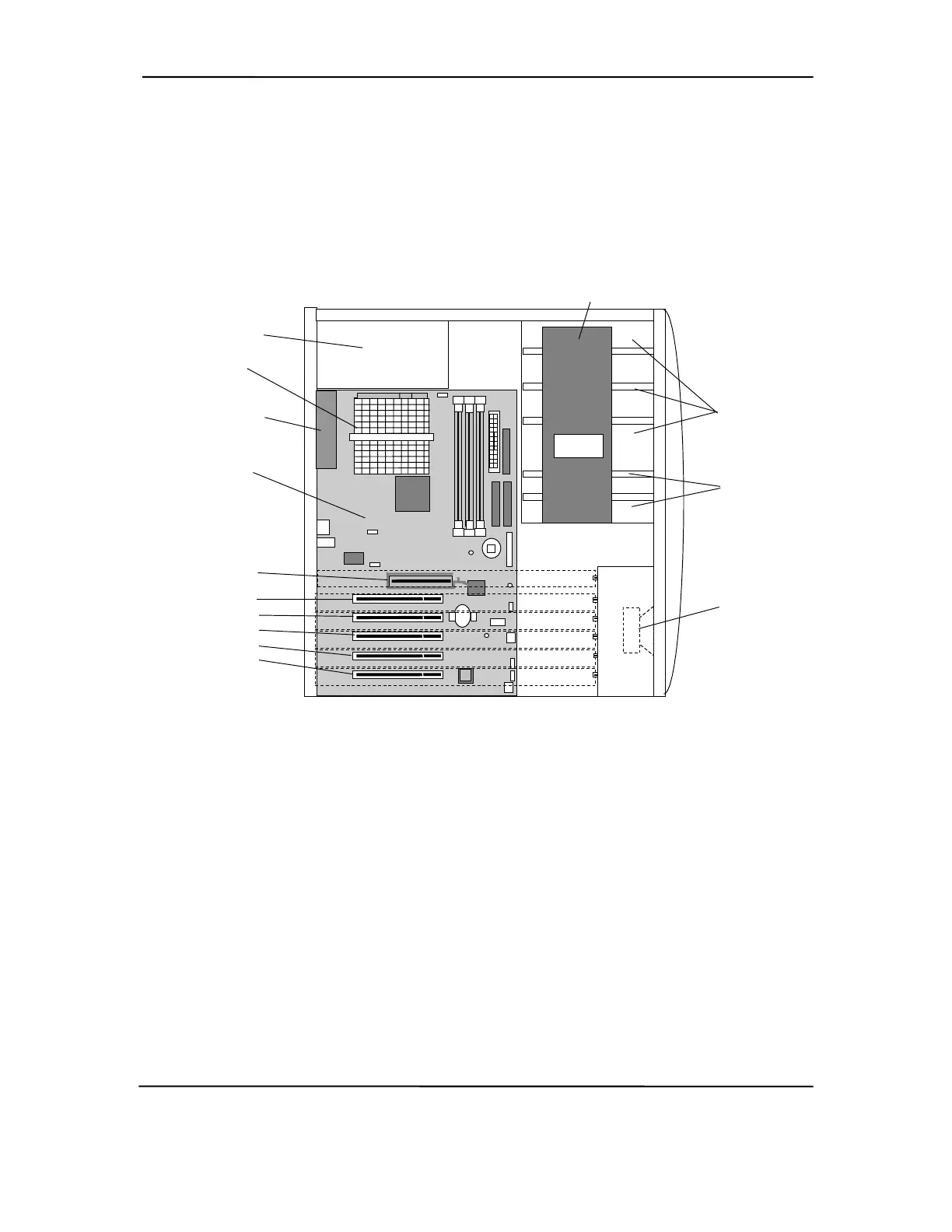

Figure 2–6. Configurable Minitower Chassis Layout, Left Side View (Minitower configuration)
Compaq Deskpro and Evo Personal Computers
Featuring Intel Celeron and Pentium III Processors
Fifth Edition - March 2002
2-9
