C-Band Transceiver Revision 1

LNA Installation MN/CSAT5060.IOM

8–2

Item Part No. Nomenclature QTY

1 15D1002 Cover 2

2 FP/BR0076 Bracket, Switch 1

3 28P1084 Adapter 1

4 Not Used

5 SW/WG2AGSM Switch, CPR229 +24V, Sealed 1

6 Not Used

7 HW/M6X1X15MMHEX Bolt, Hexhead 36

8 HW/M6LOCK Washer, Lock 36

9 HW/M6X1X15MMFLATSS Screw, Flat 4

10 CN/CX50NMALE

CN – 5

, N Male Termination

11 GA/GSKTCPR229FULL Gasket, CPR229 4

12 HW/M6FLAT Washer, Flat 36

-13 AS-0502 TX/RX Filter Support Bracket 1

- Not shown

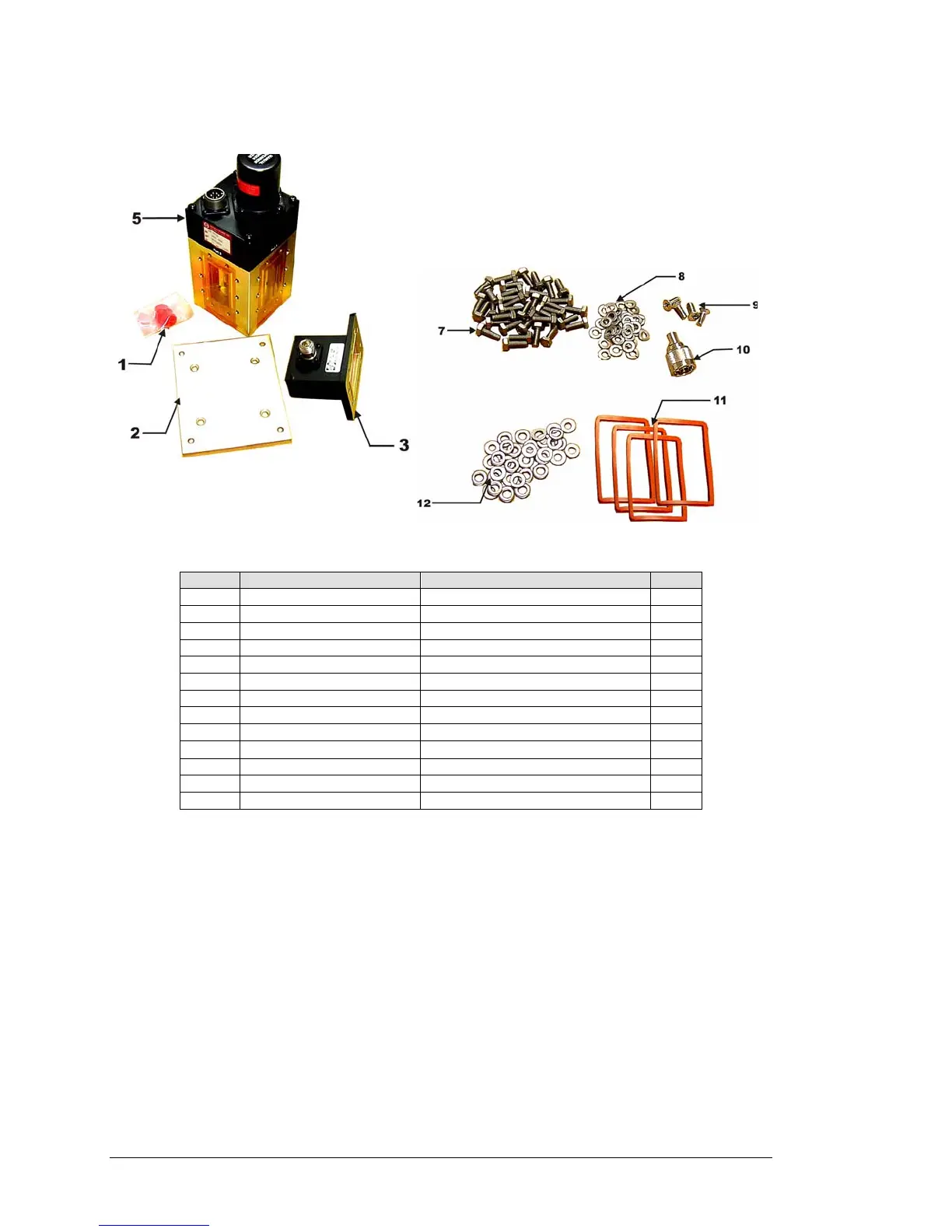

Figure 8-1. Mounting LNA Switch Kit, AS/0438
