Comtech EF Data CSAT-5060 - Redundancy Configuration; Mounting Kit

C-Band Transceiver Revision 1
CSAT-5060 5 to 25 Watt Installation MN/CSAT5060.IOM
A–13
A.4 Redundancy Configuration
A.1.1
A.1.2
A.4.1
Mounting Kit
Table A-3 and Table A-4 reflects the contents of the mounting kits.
Table A-3. 1:1 Mounting Kit Assembly, AS/0596
Part No. Nomenclature QTY
*AS/0414 Kit, Redundancy, Pole Mount 2
AS/0489 Assy, 1:1 25W CSAT 1
*AS/0608 Assy, Bracket Mount 25W CSAT 2
IMPORTANT
Refer to A.3. Single-Thread Installation.
Table A-4. Assembly, 1:1 25W CSAT Switching, AS/0510
Part No. Nomenclature QTY
AS/0438 (see Note) Kit, LNA Switch 1
AS/0440 Kit, Cable, 1:1 C-Band 1
AS/0461 Kit, Waveguide CPR229 1
AS/0490 Assy, Remote Switch Cast Box 1
AS/0503
Assembly,
TX/Remote Switch
1
Note: Refer to Chapter 2, LNA for details.

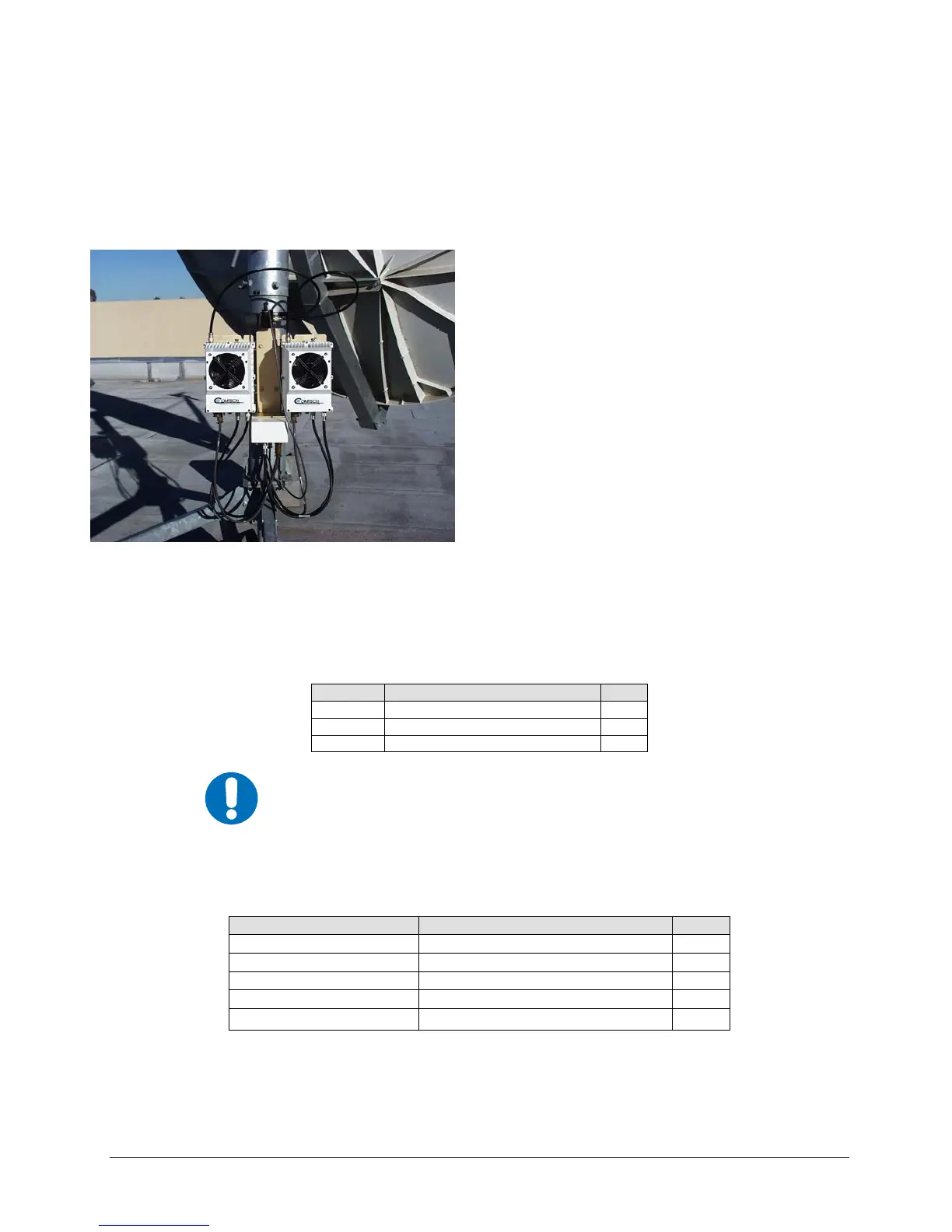

Figure A-14. Redundancy Configuration
