Comtech EF Data CSAT-5060 - Figure 2-2. CSAT5060 50-Watt Dimensional Envelope

C-Band Transceiver Revision 1
Specification MN/CSAT5060.IOM
2-3

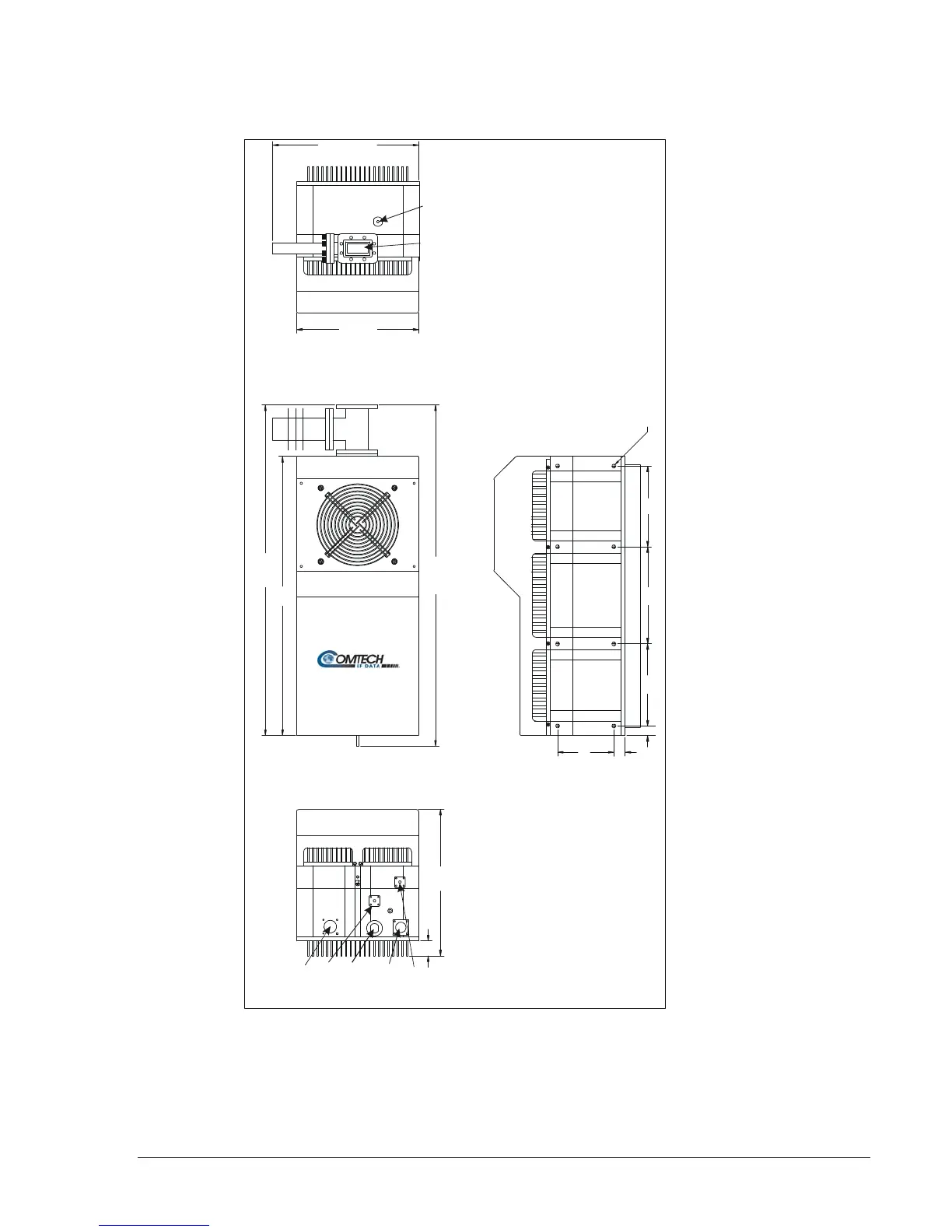

Figure 2-2. CSAT5060 50-Watt Dimensional Envelope
J5
COMM
J4
EXTERNAL
REF IN
J3
AC
POWER
J6
IF OUT
J1
IF IN
J7
RF IN
J2
RF OUT
J1
IF IN
RF O UT
J2
POWER
J3
REF IN
J4
EXTERNAL
COMM
J5
IF OUT
J6
RF IN
J7
AC
.75
3.75
6.47
5.38
8.14
1.00
9.75
M8X1.25 HELICOIL,PMOUNTING BOTH SIDES
5.47
.64
9 11/16
22 3/16
22 13/16
18.60
