Comtech EF Data CSAT-5060 - Assemble Redundant Configuration

C-Band Transceiver Revision 1
CSAT-5060 50 Watt Installation MN/CSAT5060.IOM
B–18
B.5.2.2 Assemble Redundant Configuration
Step Procedures
1 Place Unistrut bracket (1, figure B-1) on a flat surface. See Figure B-16.
2 Slide two springnuts (9, figure B-1) into the channel of the Unistrut bracket.
3 Fasten two pipe blocks (11) loosely to the springnuts using two bolts (6), two
flat washers (7), and two splitlock washers (8).
4 Repeat procedure for second Unistrut bracket (1).
5 Refer to Figure B-18. Position Unistrut bracket (1) with pipe blocks (11)
against the mounting pole; slide the pipe blocks (11) until they contact the
mounting pole.
6 Ensure the pipe blocks (11) are centered to the Unistrut brackets (1).
7 Tighten the hardware.

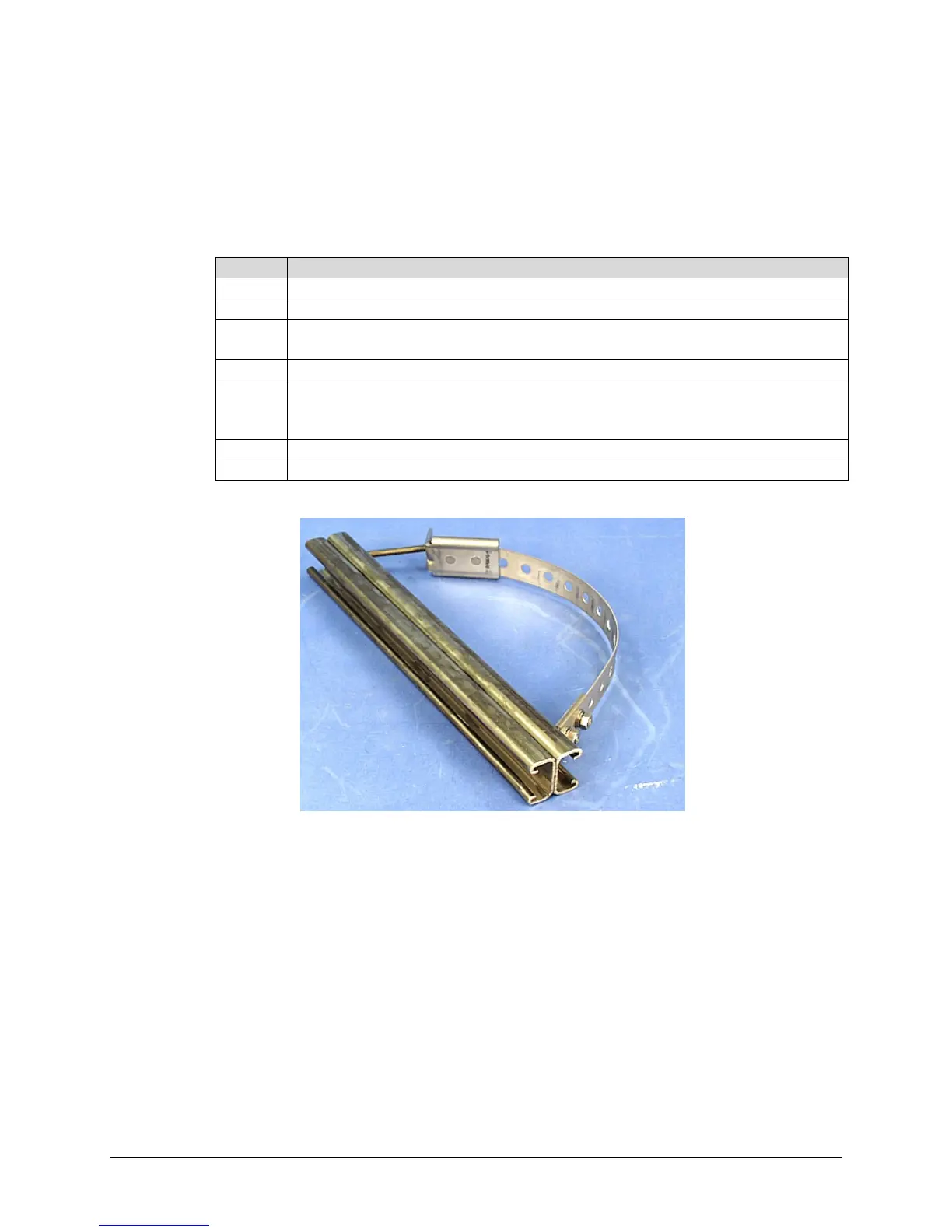

Figure B-16. Preparing the Pole Bracket
