C-Band Transceiver Revision 1
CSAT-5060 5 to 25 Watt Installation MN/CSAT5060.IOM
A–11
A.3.2 Mounting Instructions
Step Procedures
1 Install four bolts (7, Figure A-11) and flat washers (4) to the transceiver.
DO NOT tighten at this time.
2 Install brackets (2) on the SPAR. Position brackets (2) against bracket (3)
and secure with flat washers (4), split washers (5), and screws (8).
IMPORTANT
Observe the orientation of the “Key” slots used for mounting the CSAT
Transceiver.
3 Lift the unit and slide the bolts heads into the holes of bracket (3). Hook in
place. Tighten the bolts.

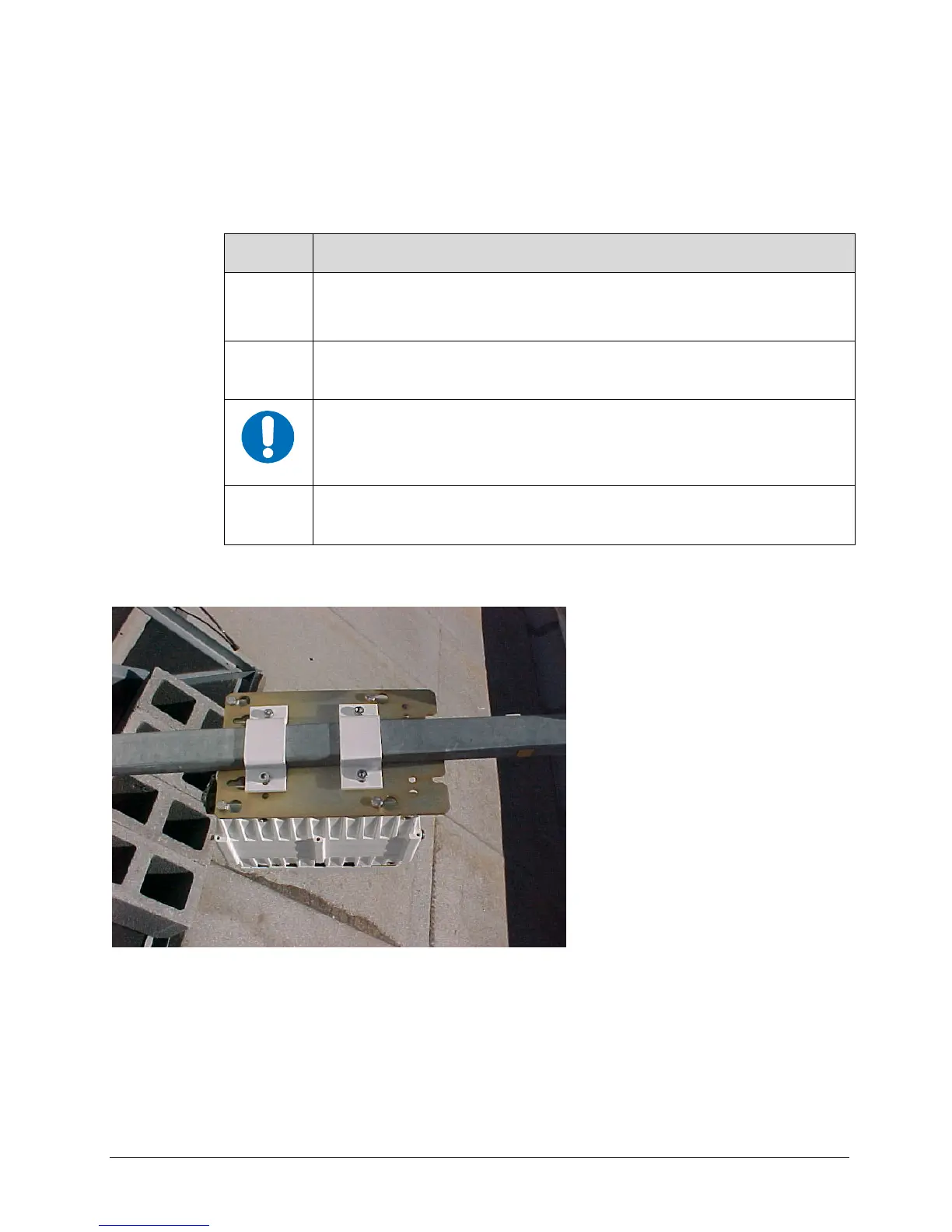

Figure A-12. Mounting Instructions
