B.5.2.1 Assemble Waveguide Switch, AS/0462
Step Procedures
1 Remove all protective tape from switch and keep it clean.
2 Install waveguide termination (1, Figure B-12) and gasket (3) to Port 2 of
switch (7) and secure with bolts (6), lockwashers (5), and flat washer (4).
3 Install waveguides (2) and gaskets (3) to Ports 1 and 3 of switch (7) and secure
with bolts (6), lockwashers (5), and flat washers (4).
4 Finished assembly should look identical to Figure B-15.
5 Set waveguide switch assembly aside for later installation.
Port 4
Port 1
Port 2
Port 3
Port 4

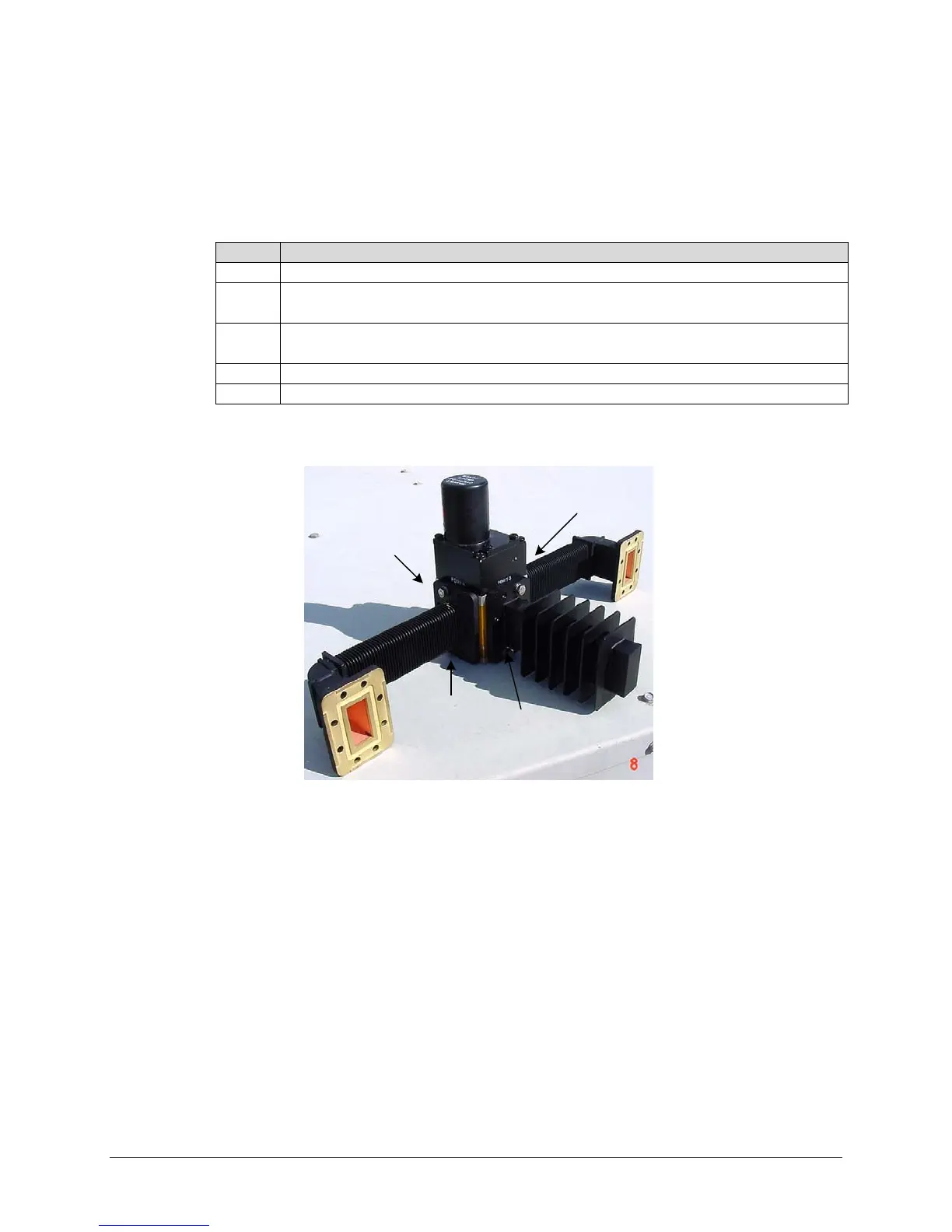

Figure B-15. Assemble Waveguide Switch, AS/0462
