C-Band Transceiver Revision 1
CSAT-5060 5 to 25 Watt Installation MN/CSAT5060.IOM
A–5
A.2.2 Single-Thread Installation
Step Procedures
1 Place Unistrut bracket (1, Figure A-1) on a flat surface.
2 Slide springnuts (9) into the channel of the Unistrut bracket.
3 Fasten two pipe blocks (11) loosely to the springnuts using two bolts (6), two flat
washers (7), and two-split washer (8).

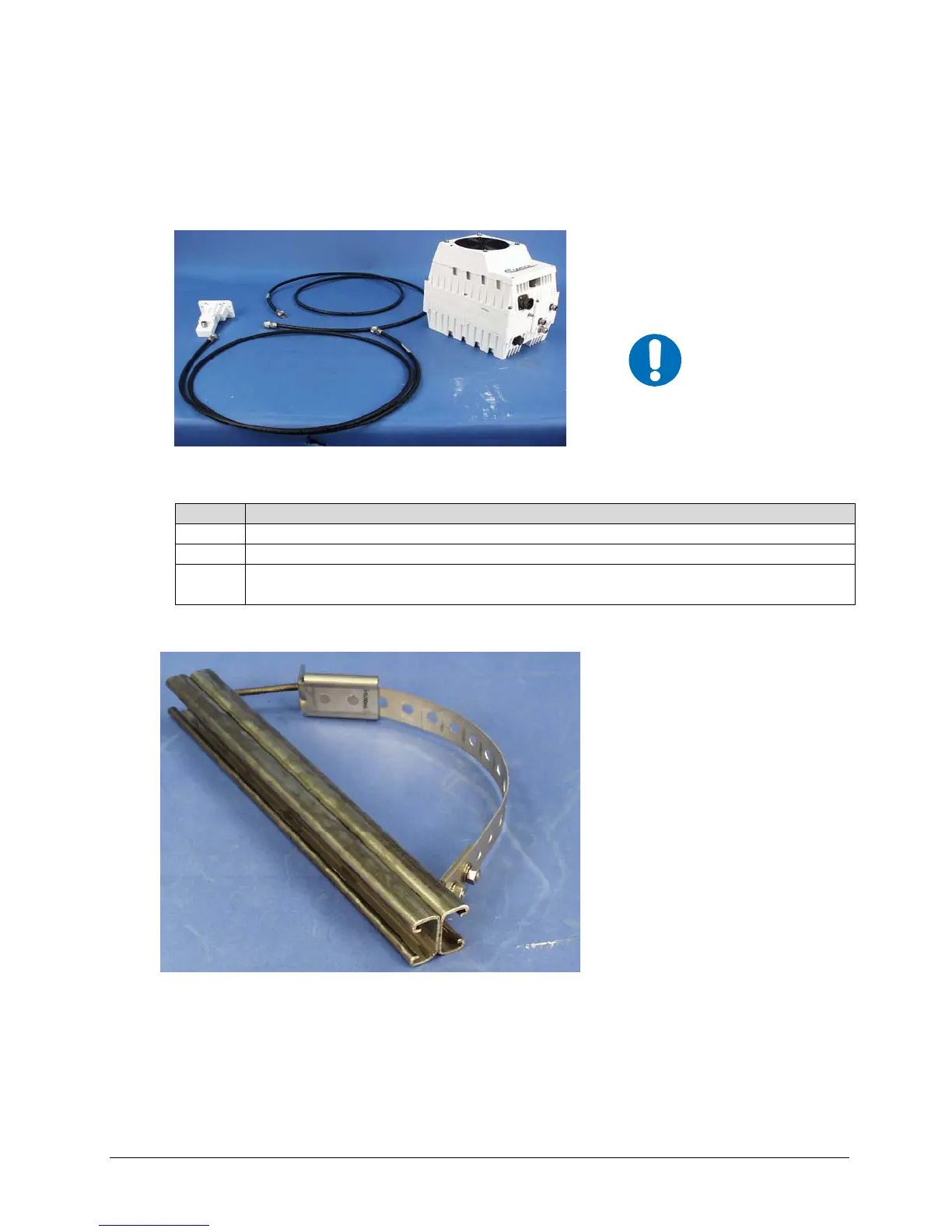

Figure A-3. Single- Thread
Installation
Figure A-4. Preparing the Pole
Bracket
IMPORTANT
Two RF Cables (TX/RX)
and a LNA are required for
installation.
To Next Page
