C-Band Transceiver Revision 1
CSAT-5060 5 to 25 Watt Installation MN/CSAT5060.IOM
A–18
A.4.2 Assemble TX/Remote Switch, AS/0503
Note: Observe port locations as shown.
Step Procedures
1 Connect attenuator (2, figure A-18) to switch (1). Ensure that groove of attenuator
allows for the connection of the terminator.
2
Connect the 50
termination to the attenuator.

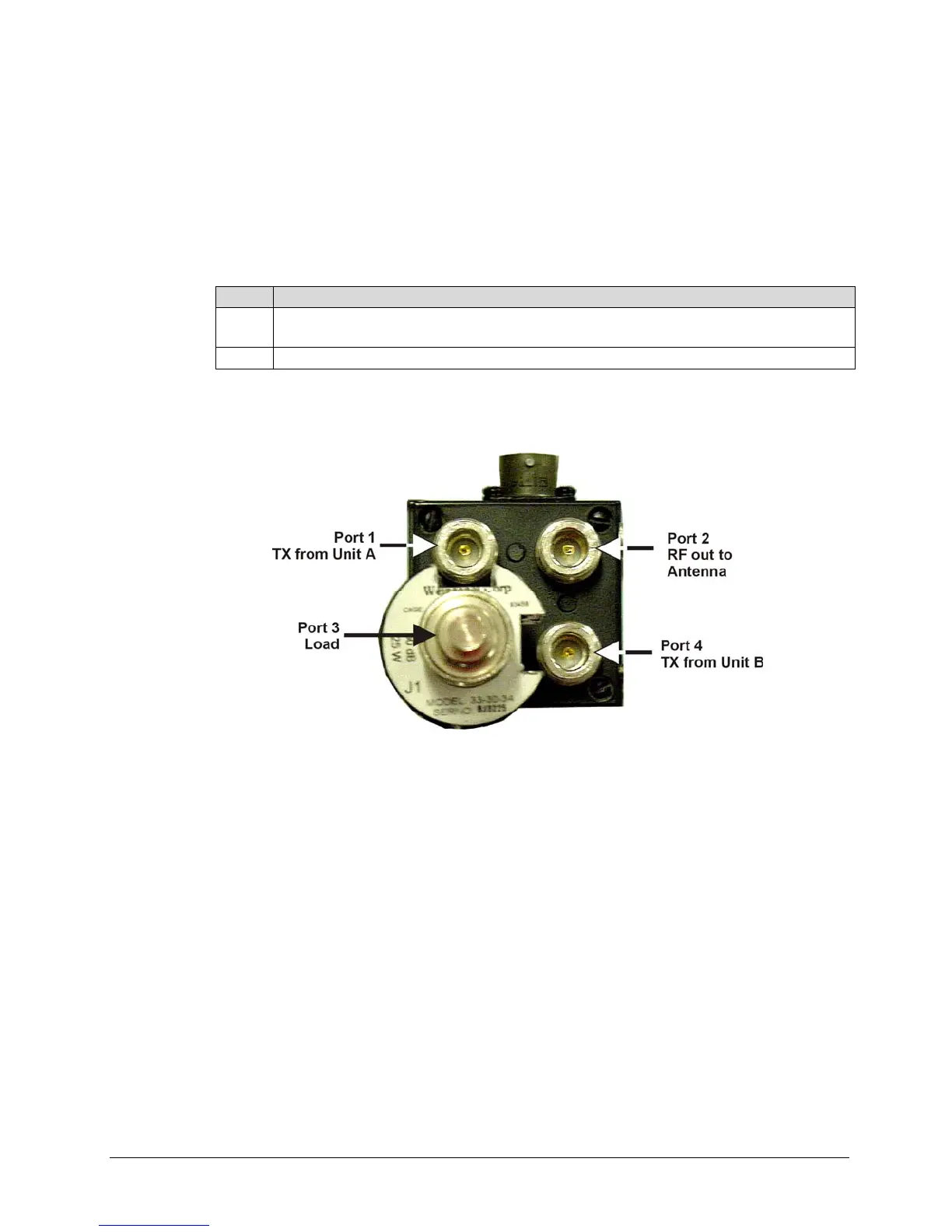

Figure A-19. Connections for the TX/Remote Switch Ports
(50Ω Termination and Attenuator Installed)
