C-Band Transceiver Revision 1
CSAT-5060 5 to 25 Watt Installation MN/CSAT5060.IOM
A–14
2,3
4
1
87
5
tem No. Part No. Nomenclature QTY
1 FP/BR0080 Bracket, Remote Coax Switch 1
2 HW/M4Flat Washer, Flat 2
3 HW/M4LOCK Washer, Lock 2
4 HW/M4X10PHP Screw, Phillips Head 7X10 2
5 HW/M8FLATSS Washer, Flat SS 4
6 HW/M8LOCKSS Washer, Split-Lock SS 4
7 HW/M8SPRINGNUT Springnut 4
8 HW/M8X1.25X25HEXSS Bolt, Hex-Head SS 4

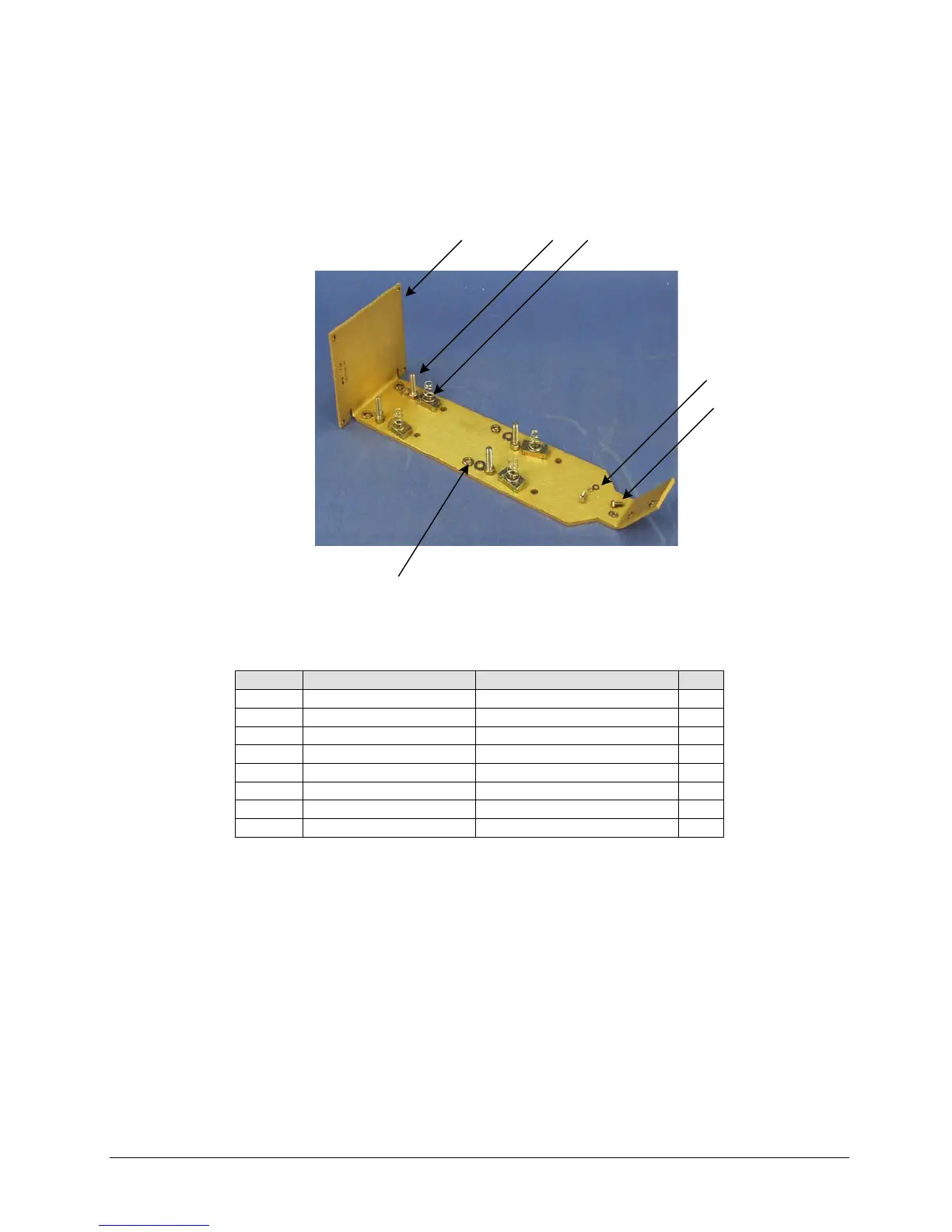

Figure A-15. 1:1 25W CSAT TX Switch Bracket, AS/0489
