C-Band Transceiver Revision 1
CSAT-5060 50 Watt Installation MN/CSAT5060.IOM
B–6
Step Procedures
1 Place Unistrut bracket (1, figure B-1) on a flat surface.
2 Slide two springnuts (9) into the each channel of the Unistrut bracket.
3 Fasten two pipe blocks (11) loosely to the springnuts using two bolts (6), two
flat washers (7), and two splitlock washers (8).
4 Refer to Figure B-4. Position Unistrut bracket (1, figure B-2) with pipe blocks
(11) against the mounting pole, slide the pipe blocks (11) until they contact the
mounting pole.
5 Ensure the pipe blocks (11) are centered to the Unistrut bracket (1). Tighten the
hardware.

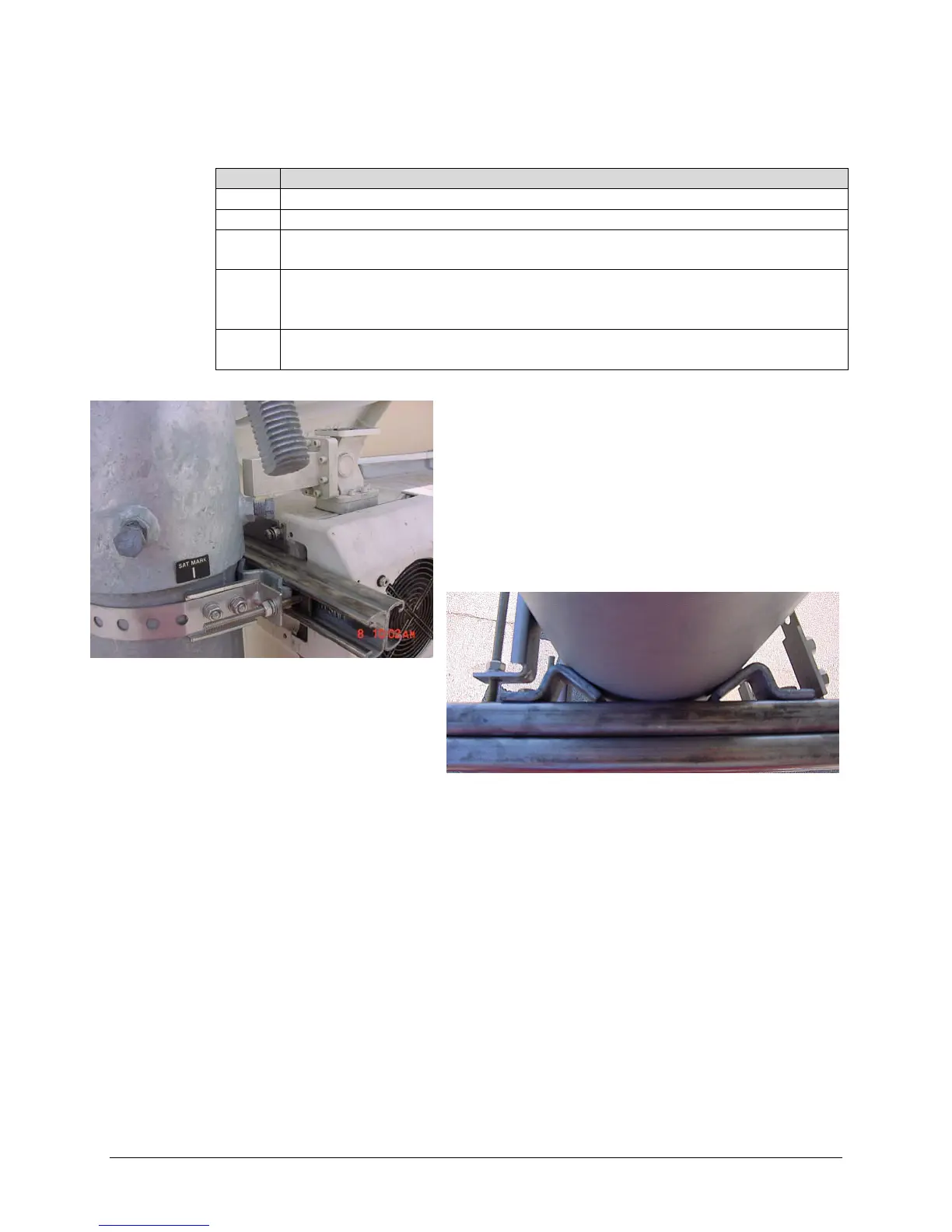

Figure B-4. Installing the Pole Bracket
Figure B-5. Looking down
