CSAT-5060 C-Band Transceiver Revision 1
Ethernet-based Remote Product Management MN/CSAT5060.IOM
AA–24
SC/13320 Board Firmware Version (read-only)
This read-only section identifies the current Boot, Bulk1, and Bulk2 firmware loads.
AA.5.5.3.5 Config | Redundancy Page
Use this page to configure the unit for redundant operations. At any time, click Refresh to
update this page and see the most recent data.

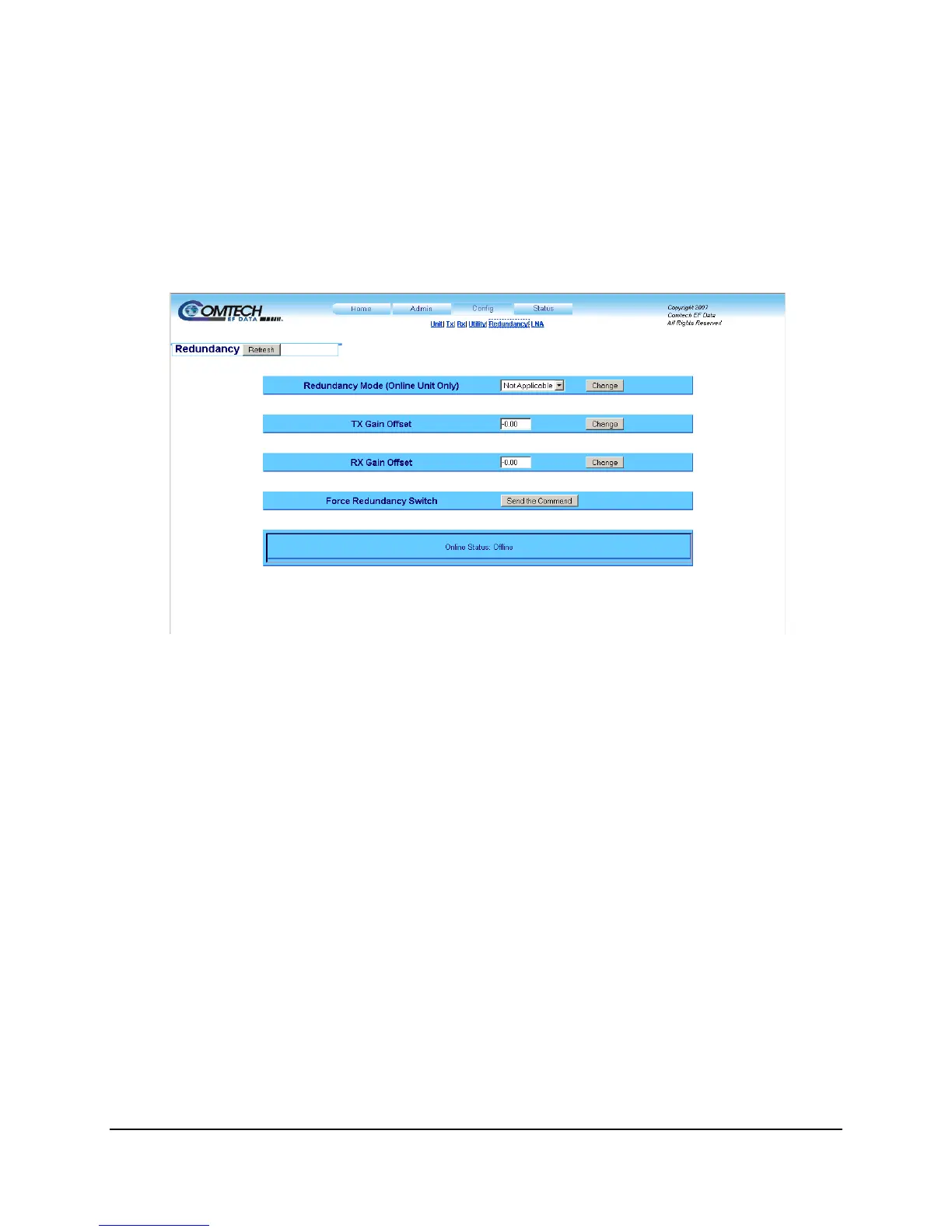

Figure AA-10. Config | Redundancy page
Redundancy Mode (Online Unit Only)
Use the drop-down list to select Manual or Auto. Click Change to save the setting.
Tx Gain Offset
Enter a numeric value from -0.00 to -4.00 to set the transmit gain offset in dB. Changes are
permitted in 0.25 dB increments. Click Change to save the setting.
Rx Gain Offset
Enter a numeric value from -0.00 to -4.00 to set the receive gain offset in dB. Changes are
permitted in 0.25 dB increments. Click Change to save the setting.
Force Redundancy Switch
Click the Send the Command button on the Online unit to change its status from Online to
Offline.
