Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Ethernet Interface Operation 4–36 MN-LPOD

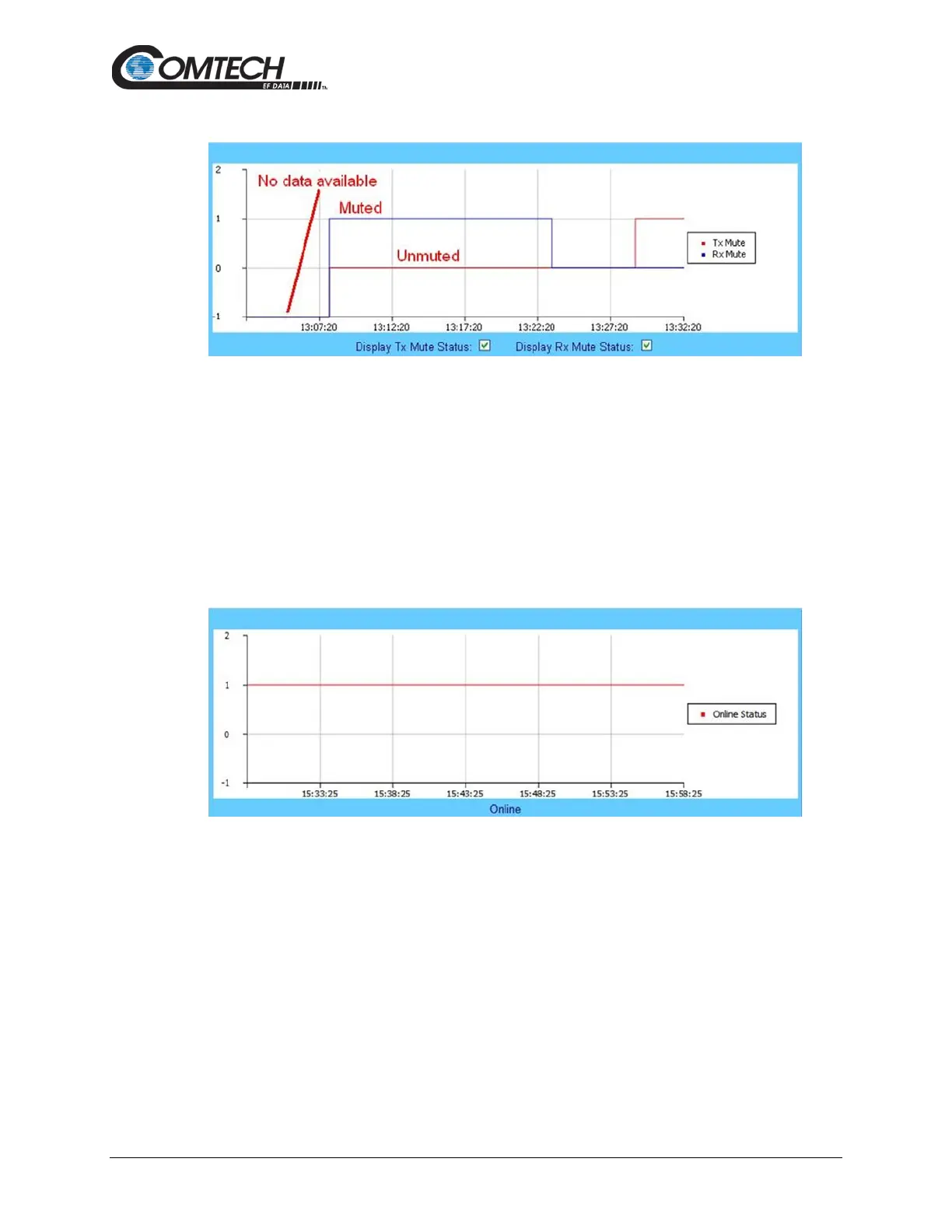

Mute State Graph
This graph displays the mute state (i.e., bias tee switch state as open = muted, or through path =
unmuted) for the Tx Mute (red line) and the Rx Mute (blue line). Note that:
• A logic high on the graph equals a muted condition;
• A logic at 0 (zero) indicates an unmuted condition;
• A logic at -1 (negative one) displays when data is unavailable.
Check or uncheck a checkbox to control the graphing of either muting function. The graph will
update dynamically after the next polling cycle (every five seconds).
Online Status Graph
This graph displays the unit's online state. Note that:
• A logic of 1 (one) indicates the unit is online;
• A logic of 0 (zero) indicates the unit is offline;
• A logic of -1 (negative one) displays when data is unavailable.
