Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
Ethernet Interface Operation 4–37 MN-LPOD

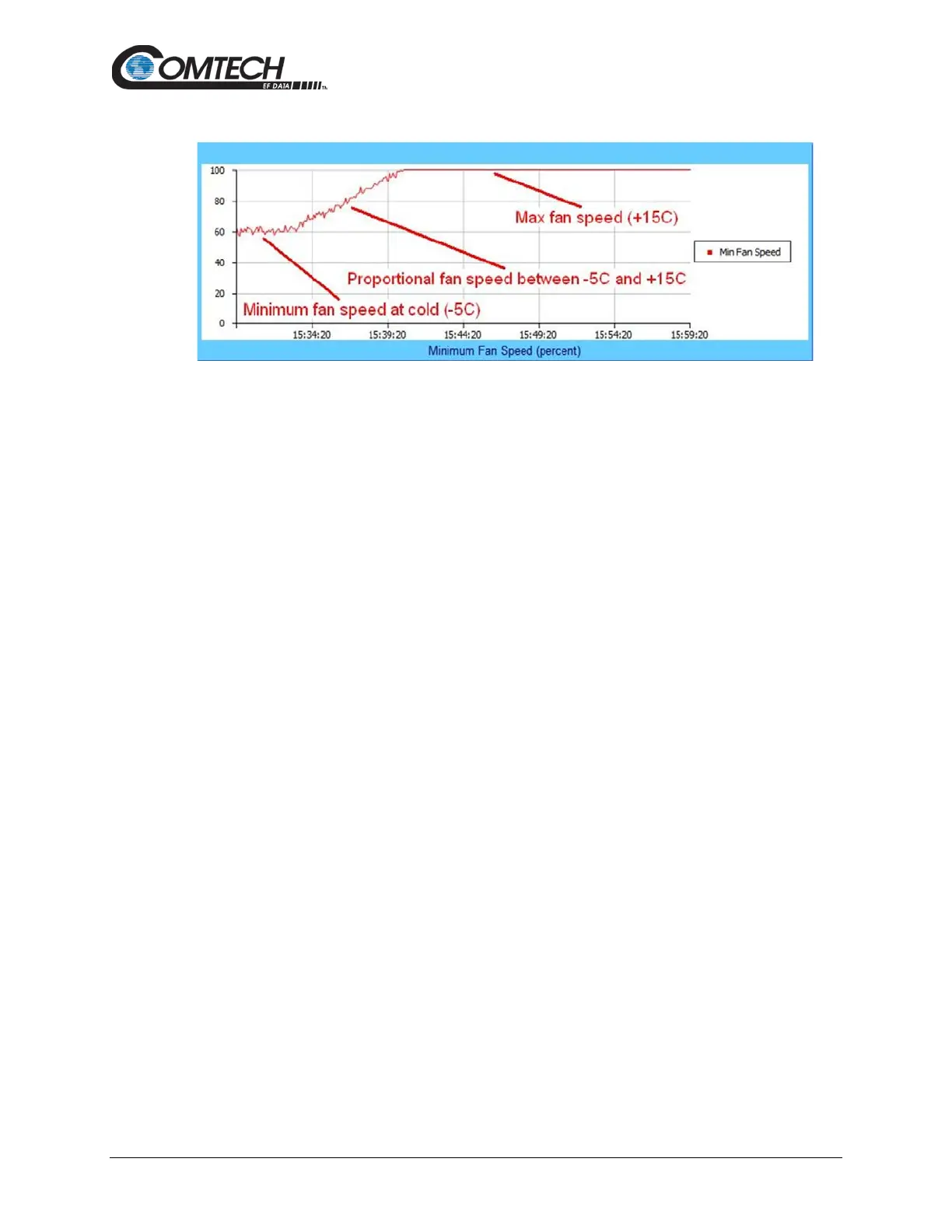

Minimum Fan Speed Graph
This graph displays the slowest fan speed of any of the fans installed in the system. This example
demonstrates the fan running at minimum, proportional, and maximum speeds. Note that:
• The fan speed is proportional to the unit's heat sink temperature from -5 to +15°C.
• At temperatures at or below -5°C, the LPOD minimizes its fan speed
• At temperatures at or above +15°C, the LPOD maximizes its fan speed.
