LPOD C-/Ku-Band Outdoor Amplifier/Block Up Converter Revision 3
System Connections, Installation, and Operation MN-LPOD
2–6

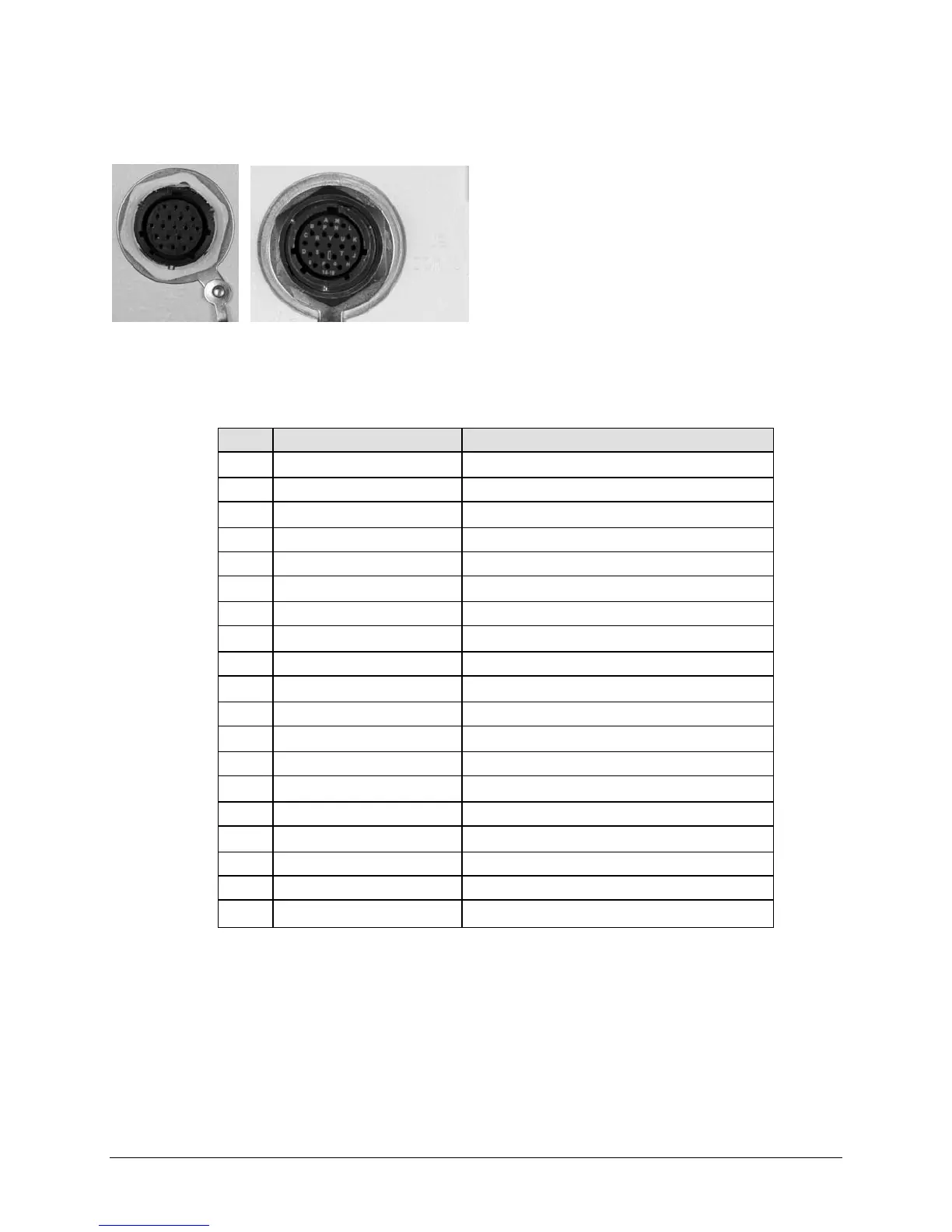

PS-1 J6 Conn.
PS-2 J6 Conn.
2.2.5 Connector J6 – COM1 (Remote Communications and Discrete Control Port)
The COM 1/ Discrete Control connector J6 is the
primary input for controlling and monitoring the
SSPA. It is a 19-pin circular connector, type
MS3112E14-19S. The pinout specification is
contained in Table 2-7.
Mating connector: ITT: KPT06J14-1
9P or
MS3116J14-19P.
Table 2-7. Connector J6 Pinout
Pin Name Description
A RS485_+RX
B RS485_-RX
C RS485_+TX
D RS485_-TX
E RS232_RD Pin 3 of DB9 female connector
F Ethernet TX+ Pin 3 of RJ45 female connector
G RS232_TD Pin 2 of DB9 female connector
H Ethernet TX- Pin 6 of RJ45 female connector
J TX/RX Switch Drive 1 Pos Not for customer use
K Gnd Ground (also Pin 5 of DB-9F connector)
L SUMFLT In Open when faulted, else tied to Pin K
M SUMFLT Out When faulted, tied to Pin K, else open
N TX Switch Pos 1 Ind Online/Offline indication
P RX Switch Pos 1 Ind Not for customer use
R +24V Not for customer use
S System Mute Control System muted if customer ties to Pin K
T Switch Common GND reference for Pin N
U Ethernet RX- Pin 2 of RJ45 female connector
V Ethernet RX+ Pin 1 of RJ45 female connector
