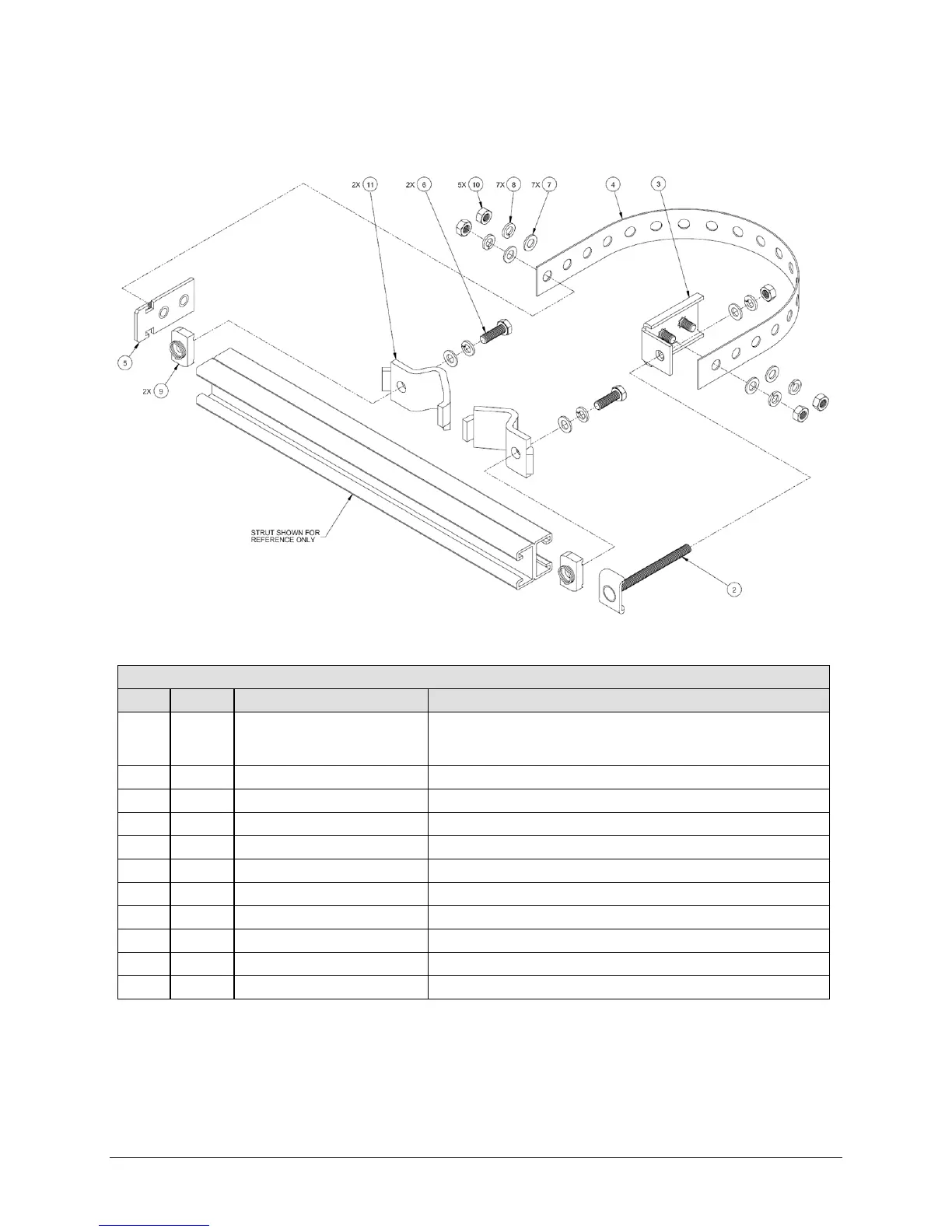

Comtech EF Data LPOD - Figure 2-3. Universal Pole Mounting Kit, PL;12319-1

LPOD C-/Ku-Band Outdoor Amplifier/Block Up Converter Revision 3
System Connections, Installation, and Operation MN-LPOD
2–9
PL/12319-1 Universal Pole Mounting Kit
ITEM QTY CEFD PART NO. DESCRIPTION
1 1 N/A
BRACKET, UNISTRUT (SHOWN FOR CLARITY ONLY,
INCLUDED IN CEFD P/N FP/BR0078 BRACKET MODIFICATION
POLE MOUNTING KIT)
2 1 FP/BR0072 BRACKET, STRAP TENSIONER
3 1 FP/BR0070 BRACKET, STRAP-TERMINATION POLE MOUNTING KIT
4 1 FP/BR0071 BRACKET, 1 1/4 STRAP(TRIM TO REQUIRED LENGTH)
5 1 FP/BR0069 BRACKET, STRAP-FIXED, POLE MOUNTING KIT
6 2 HW/M8X1.25X25HEXSS BOLT, HEXHEAD, M8X1.25X25, SS
7 7 HW/M8FLATSS WASHER, FLAT, M8 SS, METRIC
8 7 HW/M8LOCKSS WASHER, SPLIT LOCK, M8, SS, METRIC
9 2 HW/M8SPRINGNUT SPRINGNUT, M8X1.25
10 5 HW/M8X1.25MMHEXNUTSS NUT, HEX M8X1.25X16MM, SS
11 2 HW/PIPEBLOCK PIPE, BLOCK
Figure 2-3. Universal Pole Mounting Kit, PL/12319-1
