24 Operating the control software

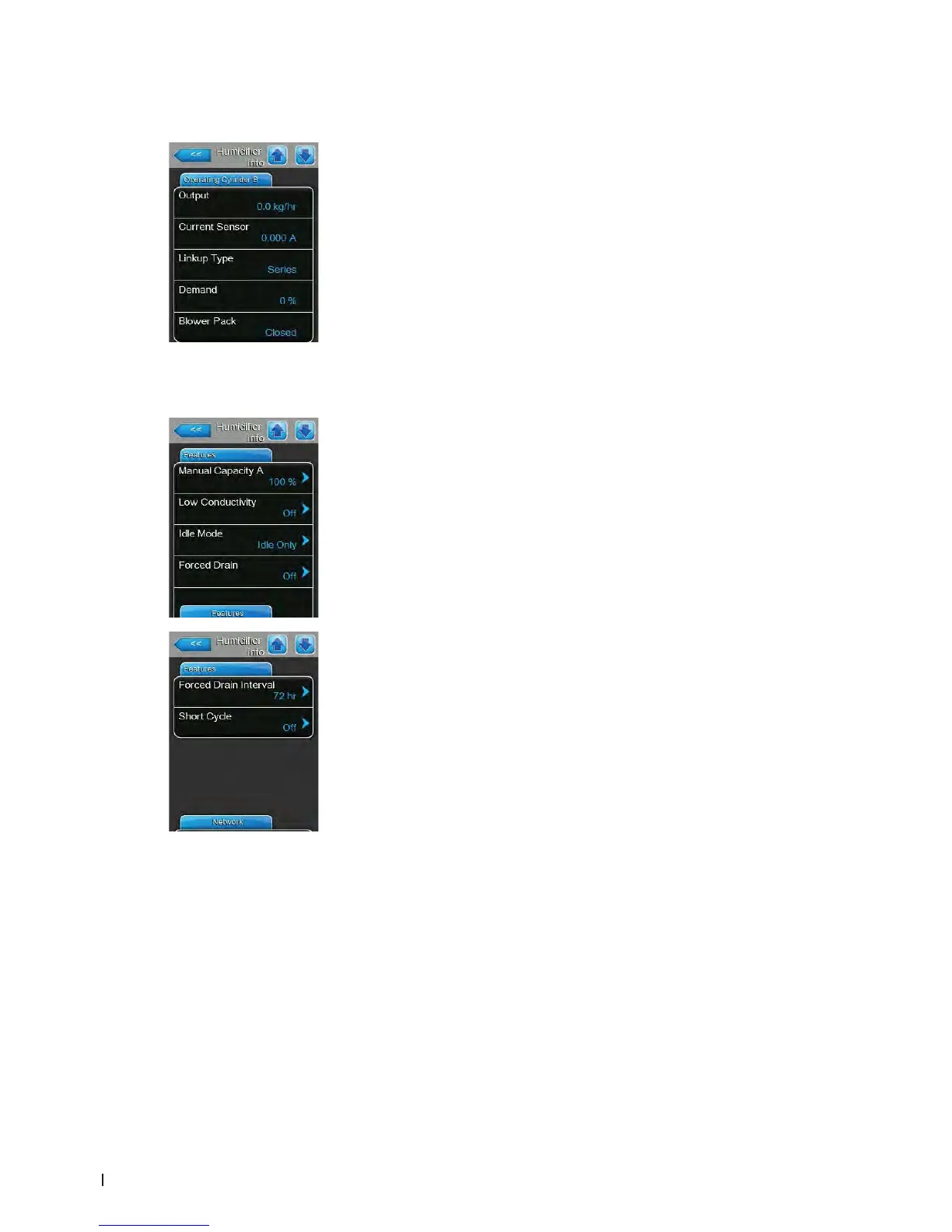

Features Tab
– Manual Capacity A: Actual set capacity limitation in % of the maximum
capacity. For further information see page 28.
– Low Conductivity: Present status of the function for supply water with
low conductivity ("On" or "Off").
– Idle Mode: Actual set standby mode ("Idle Only", "Idle Drain", "Keep
Warm" or "Partial Drain").
– Forced Drain: Present status of the forced drain function ("On" or "Off").
– Forced Drain Interval: Actual set time after which a forced draining is
triggered if forced drain function is enabled.
– Short Cycle: Present status of the short cycle function ("On" or "Off").
Operating Cylinder B Tab
Note: the tab "Operating Cylinder B" appears only on double units and large units with two steam cylinders.
– Output: Actual steam output of steam cylinder B in kg/h or lb/h.
– Current Sensor: Actual heating current of cylinder B in amperes.
– Linkup Type: Actual set control type for the linkup system ("Series" or
"Parallel"). For further information see page 37.
– Demand: Actual demand in %.
– Blower Pack: shows the status of the blower pack B security loop (status
shows "Closed" when the blower pack is connected and powered, and
"Open" when it is not.
Note: When no blower pack is connected, a jumper wire must be installed
in the blower pack security loop, and the status should show "Closed".
