Contec IPC Series - System Configuration

2. Overview
System Configuration
USB
PC-HELPER
series
To use five or more slots or a full-size board,
connect the FA-PAC series.
FA-PAC
series
Expansion
bus adapter
PCI full-size boards
Expansion slot
(CP model)
Option CD-ROM
Built-in
Main memory
144pin SO-DIMM
2.5inch hard (silicon)
disk drive
Keyboard
Mouse
Dedicated FD Drive
PC-FDD25BH
Printer
PCMCIA card slot
PCMCIA types I, II x 2,
or III x 1
RAS
RS-232C
LINE IN
LINE OUT
MIC
LAN
Display
General-purpose analog input
display
*Using the bundled DVI-analog
RGB adapter

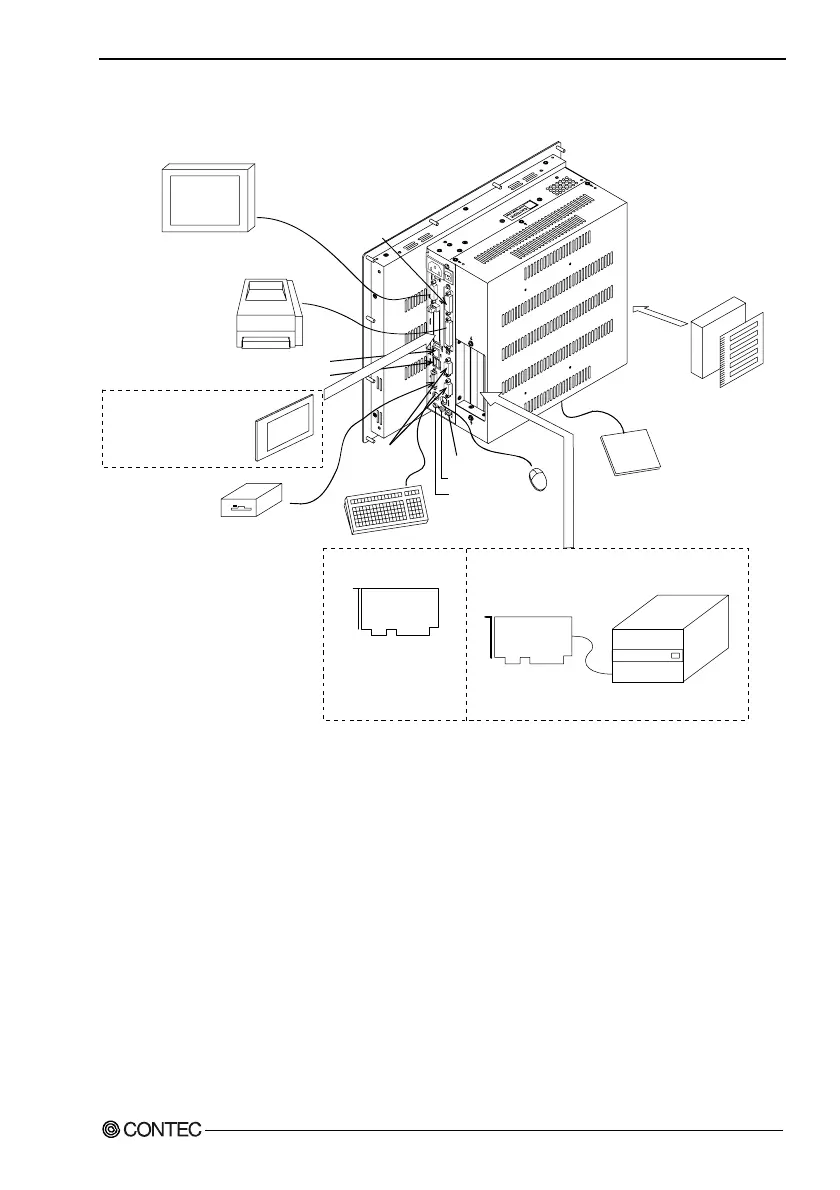

Figure 2.2. System Configuration
