5. Each Component Function
Expansion Slots (CP Model)
The CP model has two PCI bus expansion slots to hold PCI bus
boards.

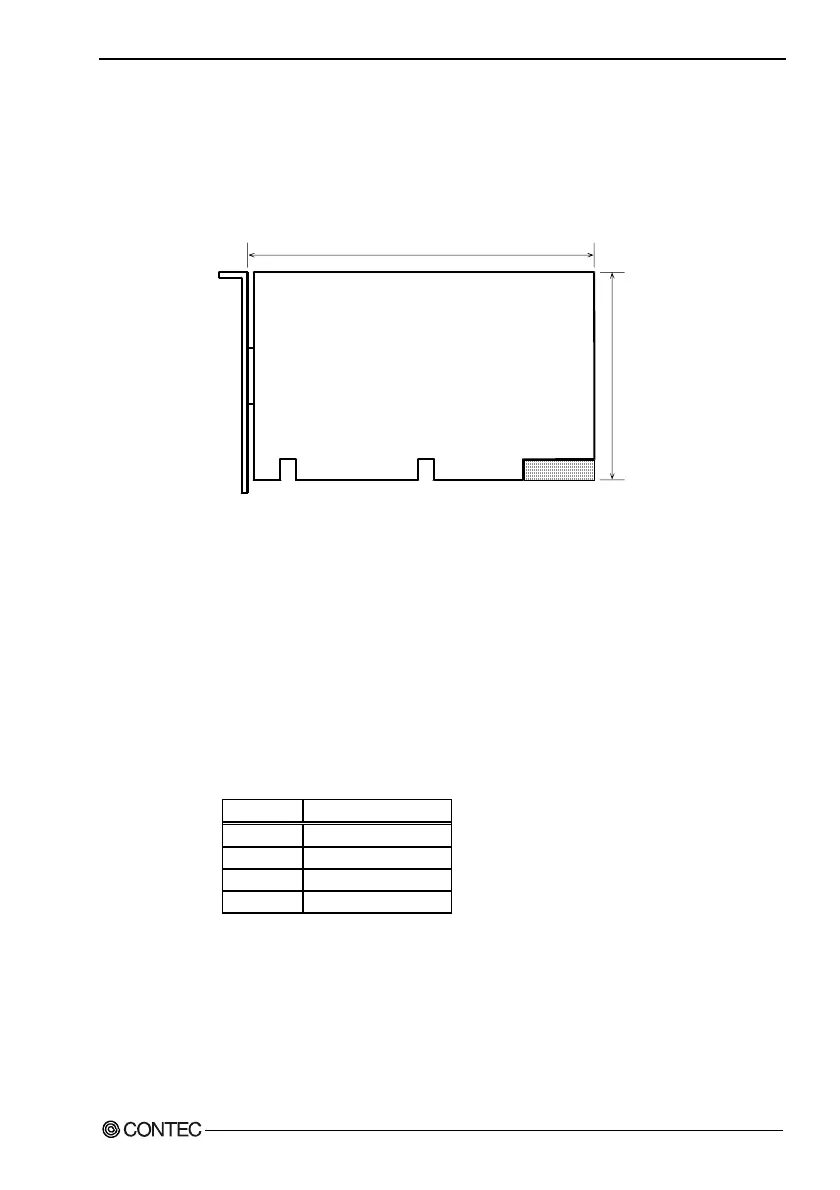

Board Dimensions Allowed
240mm(Max.)
122mm(Max.)
Figure 5.21. Expansion Board Dimensions
Note!
A board that uses the back of the board edge connector (the shaded
area in the figure) may not be mounted.
Power Supply to Expansion Slots
The following table lists the voltage that can be supplied to a board
in an expansion slot and the total current capacity of all slot:
Table 5.28. Expansion Slots
Voltage Current capacity (Max.)
+5V 2A
+12V 0.3A
-12V 80mA
-5V Not supplied
Note!
Make sure that the total current consumption by the boards installed
in the expansion slots does not exceed the above current capacity.
User’s Manual
79
