3. Hardware Setup
Installation Requirements
To restrict overheating, always mount the unit vertically. Similarly,
to maintain the ambient temperature within the range specified in
the specifications, ensure a clearance between the unit and
surrounding equipment of at least 100mm for the top and rear and
50mm for the bottom and sides.
50mm or more (side)
Connector
Bottom view
Panel
100mm (above)
50mm or more (bottom)
Side view
100mm or more (back)
Panel

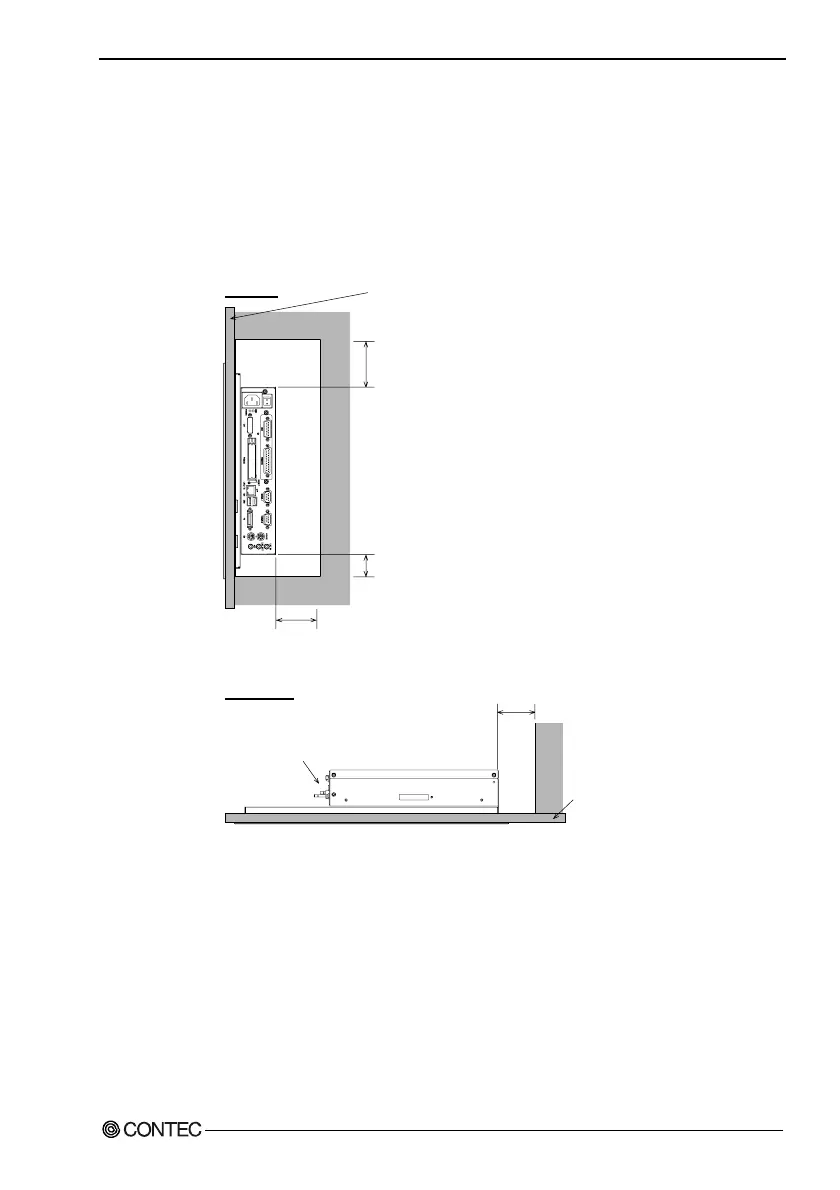

Figure 3.12. Distances between the PANECON-PC and Its
Vicinity
