5. Each Component Function
Ethernet
A Fast Ethernet interface is provided.
- Network type : 100BASE-TX/10BASE-T
- Transmission speed* : 100M/10M bps
- Max. network path length: 100m/segment
- Controller : ICH2 integrated (Intel)
* Operation at 100Mbps requires a category 5 cable.

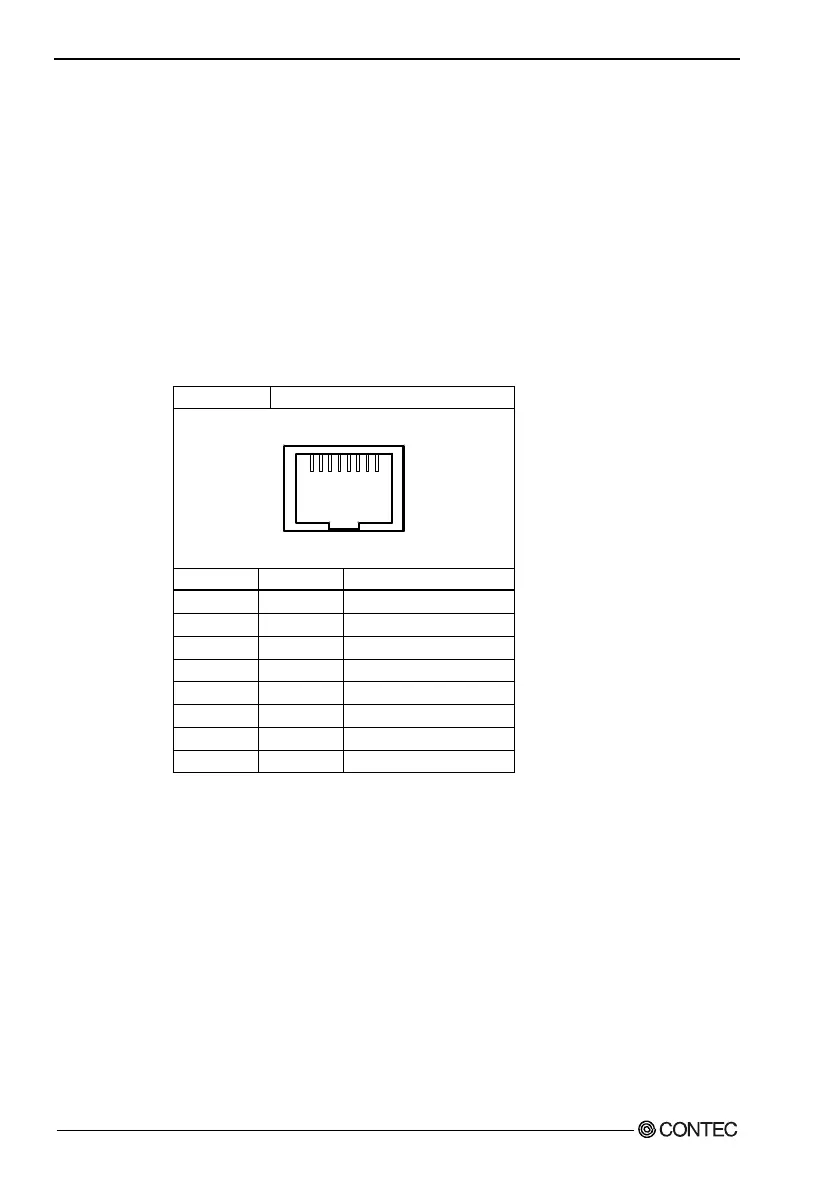

Table 5.14. Ethernet Connector
Connector type
RJ-45
Pin No.
1
2
3
4
5
6
7
8
Signal
TD+
TD-
RD+
N.C.
N.C.
RD-
N.C.
N.C.
Meamimg
Transmitted data (+)
Transmitted data (-)
Received data (+)
Not connected
Not connected
Received data (+)
Not connected
Not connected
18
LEDs for display of network statuses:
LINK : Normal connection indicator
FDX : Full-duplex mode indicator
100M : 100M-operation indicator
LAN drivers
Visit the CONTEC web site to download the LAN driver
(IPC-SLIB-01) for the OS running on your PANECON-PC.
For the download, see Chapter 7 “List of Options".
